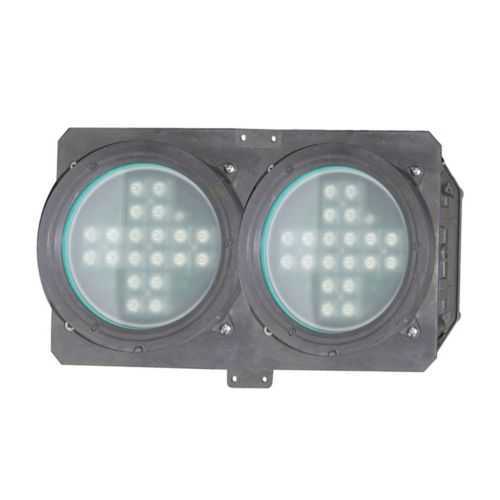

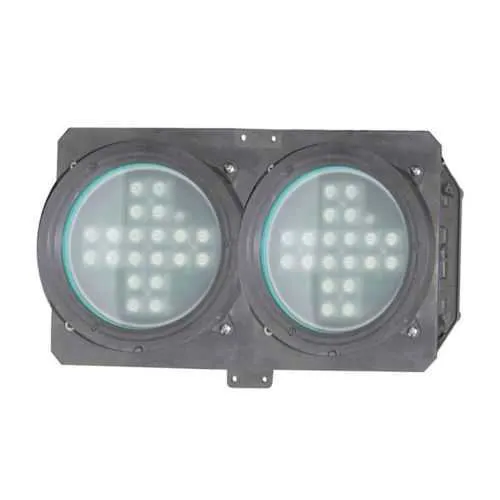

Eaton Crouse-Hinds 13042211001 PXLED Floodlight - IECEx/ATEX
Part Number: 13042211001
Quick Summary
PXLED floodlight is a high-output LED luminaire for hazardous locations in industrial facilities. It addresses the costly downtime and risky maintenance common with unreliable illumination in exposed environments. The unit carries IECEx/ATEX certification for Zone 1, Zone 21, Zone 22 and Zone 2, along with IP66/IP67 protection, ensuring safe operation in harsh conditions. Designed for compatibility and performance, it also offers wide voltage flexibility and robust mechanical construction, delivering reliable light where it matters most and reducing total cost of ownership.
Product Information
Extended Description
13042211001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED floodlight, 0.48A, 5700 K color temp, 2xM25 metal cable glands, Glass cover, 10000 lm, 106 lm/W, Anodized copper-free alum, Wide beam, > 0.95, Swivel bracket, 2 LED systems, 110-277 Vac, 127-270 Vdc, 98W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042211001
Product Length/Depth
502 mm
Product Height
303 mm
Product Width
259 mm
Product Weight
14.4 kg
EAN
4250959974211
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 1 Zone 21 Zone 22 Zone 2
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Lumens
10000
Lumens per watt
106
Optical distribution
Wide beam
Color temperature
5700 K
Lens material
Toughened glass
Entry size
2 x M25 ADE-1F2 metal cable glands
Wattage
98W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
0.48A
Power factor
> 0.95
Material
Anodized copper-free aluminum
Special features
Swivel bracket, two LED systems
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED UK-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED UK-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED UK-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED UK-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED UK-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED IES photometric files
Crouse-Hinds CEAG PXLED IES photometric files
Feature → Business Impact → Application: The PXLED floodlight delivers 10,000 lumens at 5700 K with 98 W and a power factor greater than 0.95, driving high-contrast illumination while minimizing energy consumption and heat generation. This translates to lower operating costs and longer fixture life in process and plant environments such as oil and gas, chemical processing, and mining, where visibility directly affects safety and productivity. The rugged construction uses anodized copper-free aluminum and a toughened glass lens, delivering excellent corrosion resistance and durability for outdoor and harsh indoor locations. The two LED systems provide redundancy, reducing the risk of total lighting loss during operation and enabling safer shutdowns and faster maintenance responses. With IP66/IP67 ratings and certified hazardous-area compliance, installation and commissioning are streamlined, lowering commissioning time and ensuring regulatory adherence. The 2 x M25 gland entry supports secure, sealed cable connections, plus a swivel bracket enables flexible aiming and quick re-aiming without harsh rework, improving operator efficiency on evolving layouts.
Get a Quick Quote for a Eaton Crouse-Hinds 13042211001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042211001?
Enquire Now
FAQs
For hazardous-area installations, ensure proper mounting with the swivel bracket to optimize illumination focus and reduce re-aiming time. Use the two M25 gland entries to seal cable runs and maintain IP66/IP67 integrity. Confirm electrical supply matches 110-277 Vac or 127-270 Vdc and verify 50-60 Hz compatibility. Proper gasket selection and torque per spec prevent ingress and extend life in tough environments.
The PXLED delivers 10,000 lumens at 98 watts with a PF > 0.95, using 5700 K color temperature for daylight-like visibility. It operates on 110-277 Vac or 127-270 Vdc across 50-60 Hz, drawing 0.48 A. This combination supports high-efficiency lighting with excellent power quality, reducing energy costs while maintaining consistent output in variable voltage conditions common in mixed electrical distributions.
Yes. The luminaire is IECEx/ATEX certified for hazardous locations, including Zone 1 (gas) and Zone 21/22 (dust), plus Zone 2. This certification ensures compliance with global regulatory requirements for explosive atmospheres, enabling safe operation in chemical plants, oil & gas facilities, and offshore sites without additional enclosure or modifications.
The PXLED floodlight carries IECEx/ATEX certification for hazardous locations and has IP66/IP67 ingress protection. It is specified for Hazardous/Classified Locations, supporting reliable performance in demanding environments. This combination provides regulatory assurance, reduces risk during audits, and supports ongoing maintenance planning across multiple sites.
LED technology delivers long life with minimal lumen depreciation, reducing maintenance visits and lamp-replacement costs. High efficiency (106 lm/W) and 98 W draw lower energy bills, while two LED systems provide redundancy, improving uptime. The rugged build and sealed cable glands simplify commissioning and future upgrades, delivering a favorable total cost of ownership in hazardous-area facilities.
