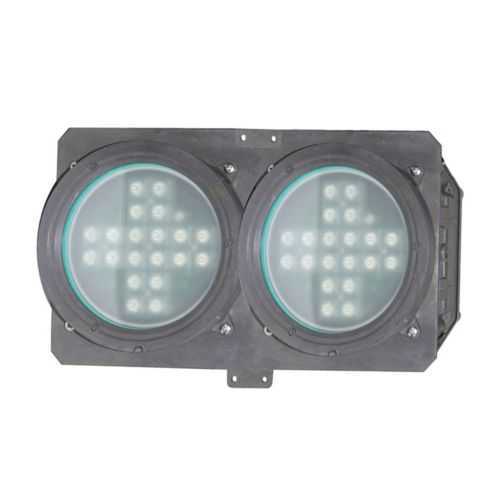

Eaton 13042213001 PXLED Floodlight - IP67/ATEX
Part Number: 13042213001
Quick Summary
Eaton's Crouse-Hinds PXLED floodlight is a high-efficiency lighting solution for hazardous locations in industrial facilities. Engineers often struggle with rugged environments that demand reliable illumination and minimal maintenance downtime. This luminaire carries IECEx/ATEX certifications and strong IP protection—IP67/IP66—and covers Zone 1, Zone 2, Zone 21 and Zone 22 applications. With 10000 lumens at 5700 K and a 98 W design, it delivers daylight-like visibility while staying energy efficient. An adjustable swivel mount and rugged aluminum body simplify installation and reduce lifecycle costs for asset-intensive operations.
Product Information
Extended Description
13042213001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED flood, 0.48A, 5700 K color temp, 2xM25 metal cable glands, Laminated glass cover, 10000 lm, 102 lm/W, Alum, Wide, > 0.95, Swivel, 2 LED systems, Type 2410-max. 6mm² term, 110-277 Vac, 127-270 Vdc, 98W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042213001
Product Length/Depth
502 mm
Product Height
303 mm
Product Width
259 mm
Product Weight
14.4 kg
EAN
4251510778507
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 2 Zone 21 Zone 1 Zone 22
Ingress protection (IP) ratings
IP67 IP66
Lamp type
LED
Lumens
10000
Lumens per watt
102
Optical distribution
Wide beam
Color temperature
5700 K
Lens material
Laminated, clear glass
Type
Type 2410 - max. 6 mm² terminals
Entry size
2 x M25 ADE-1F2 metal cable glands
Wattage
98W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
0.48A
Power factor
> 0.95
Material
Anodized copper-free aluminum
Special features
Swivel bracket, two LED systems
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED EU-Type Examination Certificate
Crouse-Hinds CEAG PXLED EU-Type Examination Certificate
Crouse-Hinds CEAG PXLED EU-Type Examination Certificate
Crouse-Hinds CEAG PXLED EU-Type Examination Certificate
Crouse-Hinds CEAG PXLED EU-Type Examination Certificate
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED IES photometric files
Crouse-Hinds CEAG PXLED IES photometric files
Feature: High lumen output and efficiency. The PXLED delivers 10000 lumens at 98 W with 102 lm/W, enabling bright, daylight-like visibility in hazardous zones while cutting energy consumption. Application: suitable for factory floors, outdoor bays, and outdoor enclosures where consistent, low-energy lighting improves safety and throughput. Feature: Broad voltage and flexible power. With 110-277 Vac and 127-270 Vdc, the luminaire adapts to global sites without extra drivers, speeding installation. Business impact: reduces stocking costs and downtime during commissioning; Application: multinational plants and retrofits where power availability varies. Feature: Rugged enclosure and optics. IP67/IP66 protection and laminated glass cover protect against dust, water ingress, and impact, extending service life in harsh environments. Business impact: lowers maintenance frequency and replacement risk; Application: chemical plants, offshore platforms, and mining sites. Feature: Wiring and terminations. Type 2410 max 6 mm² terminals and 2 x M25 glands streamline connection and meet hazardous-location wiring codes. Business impact: reduces field wiring errors and installation time; Application: new installations and retrofits in Zone 1/2/21/22 areas. Feature: Adjustable optics and mounting. Wide beam with swivel bracket allows precise aiming and broad coverage, expediting commissioning. Business impact: faster alignment and consistent illumination across large areas; Application: high bays, warehouses, and outdoor yards. Feature: Redundancy and lifecycle benefits. Two LED systems provide continued operation during partial module failure, reducing downtime in critical zones. Business impact: improves uptime, reduces maintenance costs, and extends asset life; Application: mission-critical hazardous-area facilities.
Get a Quick Quote for a Eaton Crouse-Hinds 13042213001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042213001?
Enquire Now
FAQs
Plan for the 502 mm x 303 mm x 259 mm enclosure, use 2 x M25 glands, and secure mounting with the swivel bracket. Connect via Type 2410 terminals up to 6 mm² and verify IP67/IP66 seals. Ensure compliance with IECEx/ATEX and local wiring codes to minimize risk during commissioning.
Voltage rating is 110-277 Vac or 127-270 Vdc, current draw 0.48 A, power 98 W, and lumens 10000 with a color temperature of 5700 K. It provides a high power factor above 0.95 and a luminous efficacy of about 102 lm/W, suitable for energy-conscious installations.
Yes. The luminaire is IECEx/ATEX certified for hazardous locations and supports Zone 1, Zone 2, Zone 21, and Zone 22, with IP67/IP66 ingress protection, making it suitable for both gas and dust hazardous areas across industrial facilities.
The 5700 K daylight-like output with 10000 lumens at 98 W delivers long life with high efficiency (102 lm/W). Rugged aluminum housing and laminated glass reduce wear, while dual LED systems provide redundancy, minimizing downtime and maintenance cycles in critical areas.
Available documentation includes IECEx/ATEX certificates, EU Type Examination certificates, UK documentation, EU declarations of conformity, operating instructions, and IES photometric files. These assets streamline approvals, audits, and safe commissioning in hazardous-location facilities.
