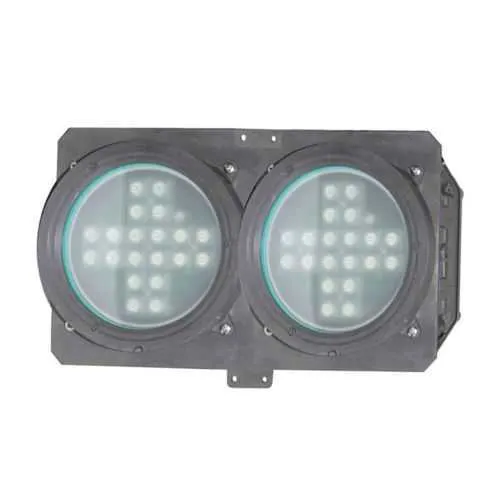

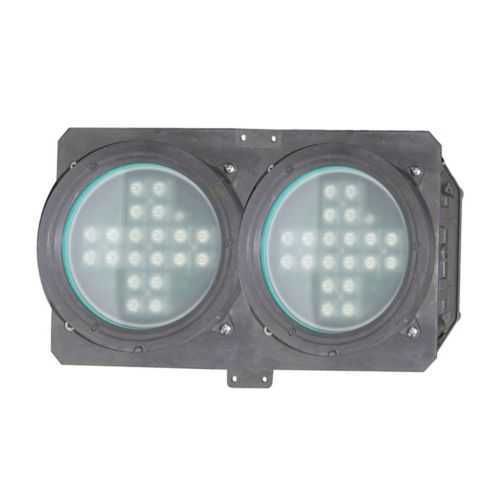

Eaton 13042215001 PXLED Floodlight - IECEx/ATEX
Part Number: 13042215001
Quick Summary
PXLED floodlight from Eaton provides high-output LED illumination for hazardous locations in industrial facilities. Engineers struggle with ingress, corrosion, and costly maintenance in washdown environments. It carries IECEx/ATEX for Zone 1/2 and Zone 21/22, along with IP66/IP67 protection and CE compliance. With 10,000 lumens at 5700K and 98W, it delivers efficient, dependable lighting that reduces energy costs. A rugged, two-LED system, 2x M25 glands, and a swivel bracket support fast, compliant installation in tough facilities. Reliable sealing and long LED life translate to lower maintenance and greater uptime, while the broad voltage range suits global deployments.
Product Information
Extended Description
13042215001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED flood, 0.48A, 5700K color temp, 2xM25 metal cable glands, Laminated, frosted glass cover, 10000 lm, 102 lm/W, Alum, Wide, Swivel, 2 LED systems, Type 2410-max. 6mm² term, 110-277Vac, 127-270Vdc, 98W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042215001
Product Length/Depth
502 mm
Product Height
303 mm
Product Width
259 mm
Product Weight
14.4 kg
EAN
4251510782818
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 21 Zone 22 Zone 2 Zone 1
Ingress protection (IP) ratings
IP67 IP66
Lamp type
LED
Lumens
10000
Lumens per watt
102
Optical distribution
Wide beam
Color temperature
5700 K
Lens material
Laminated, frosted glass
Type
Type 2410 - max. 6 mm² terminals
Entry size
2 x M25 ADE-1F2 metal cable glands
Wattage
98W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
0.48A
Power factor
> 0.95
Material
Anodized copper-free aluminum
Special features
Swivel bracket, two LED systems
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED LED LDT photometric files
Crouse-Hinds CEAG PXLED LED LDT photometric files
Feature: High-output LED performance delivering 10,000 lumens at 5700K with a 102 lm/W efficacy. Business Impact: Bright, uniform illumination reduces eye strain and enables precise work in demanding hazardous environments, while keeping energy use low. Application: Plant floors, outdoor yards, and process areas where clear visibility is critical. Feature: Hazardous locations certification and IP protection. Business Impact: IECEx/ATEX compliance for Zone 1/2 and 21/22, combined with IP66/IP67 ingress protection, minimizes regulatory risk and downtime. Application: Offshore platforms, chemical plants, and mining sites needing robust compliance. Feature: Durable construction and optics. Business Impact: Anodized copper-free aluminum housing with laminated frosted glass resists corrosion and washdowns, extending service life. Application: Environments with strong moisture, dust, and chemical exposure. Feature: Flexible electrical and mounting options. Business Impact: 110–277Vac and 127–270Vdc compatibility, PF > 0.95, 0.48A, 98W operation ensures stable performance across global sites; swivel bracket enables precise aiming. Application: Global deployments with varying power standards and tight mounting constraints. Feature: Dual-LED system and easy termination. Business Impact: Redundancy and consistent light output reduce maintenance calls and extend luminaire life; Type 2410 terminals support up to 6 mm² wiring. Application: Critical process areas where continuous illumination is essential.
Get a Quick Quote for a Eaton Crouse-Hinds 13042215001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042215001?
Enquire Now
FAQs
Mounting is straightforward with a swivel bracket and a robust enclosure. The unit uses 2x M25 glands and Type 2410 terminals supporting up to 6 mm² conductors. It is designed for Zone 1/2 and Zone 21/22 compliance with IP66/IP67 protection, allowing safe, code-compliant installation in challenging environments.
It delivers 10,000 lumens at 5700K with a 102 lm/W efficacy and a power draw of 98W. The luminaire runs at 110–277Vac or 127–270Vdc, with a power factor greater than 0.95 and an amperage of 0.48A, suitable for global industrial sites.
Yes. The PXLED floodlight is certified for hazardous locations, including Zone 1/2 and 21/22, and carries IECEx/ATEX certification. Its IP66/IP67 ratings provide strong ingress protection, making it appropriate for demanding process areas and outdoor installations.
In addition to IECEx/ATEX, the product references EU declarations of conformity and regional certificates, along with installation and photometric documents. A detailed brochure and datasheets are available to support compliance reviews, safety reviews, and procurement approvals.
The LED technology, long life, and robust seals minimize maintenance cycles and downtime, delivering lower total cost of ownership. Energy efficiency (10,000 lm at 98W) reduces operating costs while consistent performance across voltage ranges simplifies procurement for global sites.
