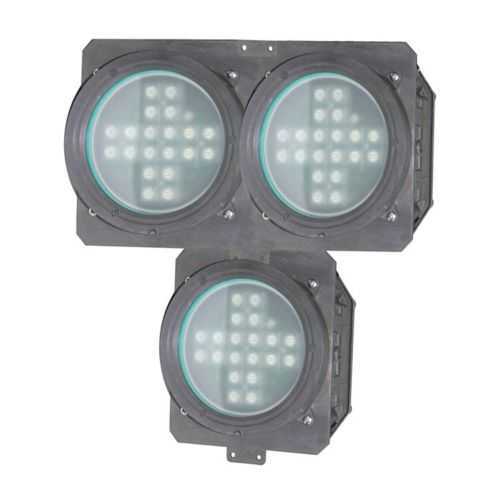

Eaton Crouse-Hinds PXLED Floodlight 13042310001 - IECEx/IP66
Part Number: 13042310001
Quick Summary
PXLED floodlight from Eaton Crouse-Hinds delivers high‑intensity illumination for hazardous locations in industrial facilities. Operators struggle with unreliable lighting in explosive atmospheres, which drives maintenance cost and safety risk. This fixture is qualified to IECEx/ATEX and hazardous-location standards with IP66/IP67 protection, ensuring reliable performance in Zone 1/2 and Zone 21/22 environments. The design also prioritizes energy efficiency and uptime, supporting lower total cost of ownership. With 15000 lumens at 5700 K and a PF > 0.95, it delivers consistent light where it matters most, while 2 x M25 glands and a swivel bracket simplify installation in cramped electrical rooms or outdoor enclosures.
Product Information
Extended Description
13042310001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED floodlight, 0.72A 5700 K color temp, 2 x M25 metal cable glands, Glass cover, 15000 lm, 110 lm/W, Anodized copper-free alum, Narrow, > 0.95, Swivel bracket, 3 LED systems, 110-277 Vac, 127-270 Vdc, 147W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042310001
Product Length/Depth
465 mm
Product Height
607 mm
Product Width
325 mm
Product Weight
24.3 kg
EAN
4250959974280
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 2 Zone 1 Zone 21 Zone 22
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Lumens
15000
Lumens per watt
110
Optical distribution
Narrow beam
Color temperature
5700 K
Lens material
Toughened glass
Entry size
2 x M25 ADE-1F2 metal cable glands
Wattage
147W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
0.72A
Power factor
> 0.95
Material
Anodized copper-free aluminum
Special features
Swivel bracket, three LED systems
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED IECEx Certificate of Conformity
Crouse-Hinds CEAG PXLED IECEx Certificate of Conformity
Crouse-Hinds CEAG PXLED IECEx Certificate of Conformity
Crouse-Hinds CEAG PXLED IECEx Certificate of Conformity
Crouse-Hinds CEAG PXLED IECEx Certificate of Conformity
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED IES photometric files
Crouse-Hinds CEAG PXLED IES photometric files
Feature — High-output LED engine delivers 15000 lumens at 5700 K with 110 lm/W efficiency, enabling crisp visibility across long work zones. Business impact — Reduces fixture count and energy costs while maintaining consistent color temperature for critical inspection tasks. Application — Useful on assembly lines and outdoor hazardous locations where reliability and brightness directly affect safety and throughput. Feature — IP66/IP67 ingress protection and toughened glass lens protect against dust and water ingress in demanding environments. Business impact — Extends service intervals and lowers maintenance downtime in harsh outdoor or wash-down areas. Application — Suitable for exterior mounting, enclosures, and process-area walls. Feature — Entry size 2 x M25 glands and three LED systems enable flexible cabling and potential redundancy. Business impact — Simplifies pre-termination and field installation, reducing commissioning time and risk. Application — Ideal for facilities with mixed power feeds or constrained access. Feature — Voltage flexibility 110-277 Vac and 127-270 Vdc, frequency 50-60 Hz, 147 W, 0.72 A, PF > 0.95. Business impact — Supports diverse power architectures and grid conditions, lowering integration costs. Application — Fits HVAC, processing, and logistics environments with variable supply conditions. Feature — Anodized copper-free aluminum housing and swivel bracket enable durable mounting and precise aiming. Business impact — Improves lifecycle reliability and enables quick alignment to target areas, reducing rework. Application — Production floor perimeters, mezzanines, and outdoor walkways in hazardous zones.
Get a Quick Quote for a Eaton Crouse-Hinds 13042310001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042310001?
Enquire Now
FAQs
Key installation considerations include proper enclosure and mounting orientation to ensure the swivel bracket can set the beam precisely, maintaining IP66/IP67 integrity by using the provided gland entries (2 x M25), and selecting a power supply within 110-277 VAC or 127-270 VDC. Also verify Zone 1/2 or Zone 21/22 applicability per IECEx/ATEX documentation before commissioning.
The PXLED floodlight is certified for IECEx/ATEX hazardous locations, covering Zone 1, Zone 2, Zone 21, and Zone 22 configurations. Its IP66/IP67 rating ensures protection against dust ingress and powerful water jets, supporting operation in harsh industrial environments without compromise to safety or performance.
Yes. The PXLED floodlight offers voltage flexibility with a wide range of input options (110-277 VAC and 127-270 VDC) at 50-60 Hz, supporting diverse facility electrical architectures. With a consistent 147 W wattage and PF > 0.95, it maintains reliable performance across configurations, reducing the need for multiple fixtures or power converters.
The LED 15000 lumens output paired with 5700 K color temperature provides bright, high-contrast lighting while keeping power consumption at 147 W. The high luminous efficacy (110 lm/W) and robust IP66/IP67 protection reduce maintenance cycles and downtime in hazardous environments, leading to lower total cost of ownership and improved production uptime.
The PXLED floodlight includes a swivel bracket for adjustable aiming and supports 2 x M25 glands for flexible cabling. Its rugged aluminum housing and toughened glass lens resist impact and corrosion, making it suitable for outdoor sites, wash-down areas, and enclosed spaces. These features streamline commissioning and ensure long-term reliability in hazardous locations.
