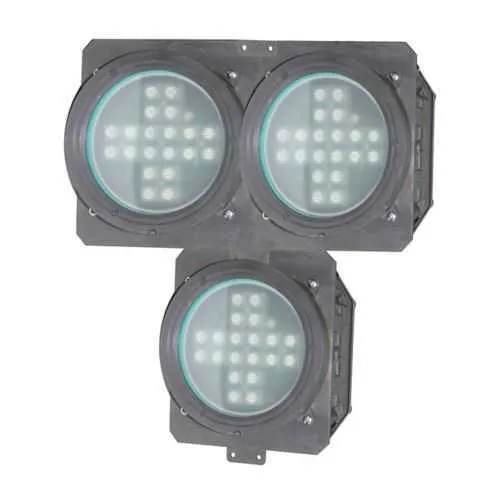

Eaton 13042310005 PXLED Floodlight - IECEx/ATEX, IP67
Part Number: 13042310005
Quick Summary
PXLED floodlight 13042310005 is a high-output LED luminaire designed for hazardous locations, delivering reliable, daylight-accurate illumination for industrial sites. In challenging environments, inconsistent lighting and maintenance downtime can compromise safety and productivity; this fixture is built to minimize both. It carries IECEx/ATEX certification and Zone 1/2 and Zone 21/22 ratings, plus IP67/IP66 ingress protection to withstand dust, water, and harsh conditions. With 5700 K color temperature, 15000 lumens, and a broad voltage range, it supports fast deployment and consistent visibility across shifts. For reliability-driven projects, the swivel mounting and triple LED-system design offer flexibility and long-term operating cost benefits, while improving operator safety and compliance posture.
Product Information
Extended Description
13042310005 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED floodlight, 0.72A, 5700 K color temp, 2 x M25 plastic plugs, Glass cover, 15000 lm, 110 lm/W, Anodized copper-free aluminum, Narrow, > 0.95, Swivel bracket, 3 LED systems, 110-277 Vac, 127-270 Vdc, 147W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042310005
Product Length/Depth
465 mm
Product Height
607 mm
Product Width
325 mm
Product Weight
24.3 kg
EAN
4250959981721
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 21 Zone 2 Zone 1 Zone 22
Ingress protection (IP) ratings
IP67 IP66
Lamp type
LED
Lumens
15000
Lumens per watt
110
Optical distribution
Narrow beam
Color temperature
5700 K
Lens material
Toughened glass
Entry size
2 x M25 plastic threaded plugs
Wattage
147W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
0.72A
Power factor
> 0.95
Material
Anodized copper-free aluminum
Special features
Swivel bracket, three LED systems
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED IES photometric files
Crouse-Hinds CEAG PXLED IES photometric files
Feature → Business Impact → Application: LED technology delivers long life and reduced maintenance, lowering lifecycle costs and minimizing unplanned downtime in hazardous environments; applications include chemical plants and offshore facilities where reliable daylight-like illumination is critical. Feature → Narrow beam optical distribution focuses light precisely where needed, improving task lighting and reducing energy waste for process and inspection areas. Feature → 147 W wattage and 110 lm/W efficiency translate to high output with controlled energy use, supporting compliance with facility lighting standards while keeping operating costs predictable. Feature → 0.72 A current at 110-277 Vac / 127-270 Vdc enables flexible power sourcing and easier integration with mixed electrical systems across sites. Feature → IP67/IP66 protection and toughened glass lens withstand harsh washdowns, corrosion, and exposure to dust, reducing replacement cycles and service calls. Feature → Anodized copper-free aluminum body and a robust swivel bracket enable durable installation and versatile mounting angles for complex layouts, decreasing commissioning time and improving coverage across zones. Feature → IECEx/ATEX certification and Zone ratings provide regulatory confidence, enabling safe use in classified locations and accelerating project approvals, procurement, and installation.
Get a Quick Quote for a Eaton Crouse-Hinds 13042310005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042310005?
Enquire Now
FAQs
The PXLED Floodlight uses a swivel mounting bracket for flexible aiming and ships with 2 x M25 plastic plugs for the entry. It supports 110-277 Vac or 127-270 Vdc and 50-60 Hz, enabling easy integration with existing power systems. Ensure correct ingress protection and clearance for maintenance along with approved wiring in hazardous locations.
It holds IECEx/ATEX certifications for hazardous locations and Zone 1/2 and Zone 21/22 ratings, along with IP67 and IP66 ingress protection. These certifications confirm compliance for explosive atmospheres and harsh environmental conditions, supporting safe operation in chemical plants, refineries, and offshore facilities.
The luminaire delivers 15000 lm at 5700 K with a wattage of 147 W and an amperage of 0.72 A. It operates from 110-277 Vac or 127-270 Vdc with a power factor >0.95 and 50-60 Hz, achieving about 110 lm/W efficiency for strong, energy-conscious lighting in hazardous areas.
Yes. With Zone 1/2 and Zone 21/22 ratings, IECEx/ATEX compliance, and rugged IP67/IP66 protection, it is designed for chemical processing, refineries, and other hazardous environments requiring reliable, compliant illumination and minimized maintenance.
The fixture's swivel bracket provides mounting flexibility for complex layouts, while its robust aluminum body and toughened glass lens resist corrosion and washdowns. The dual entry points and wide voltage range simplify retrofits and new installs, reducing commissioning time and enabling rapid deployment across new or expanding facilities.
