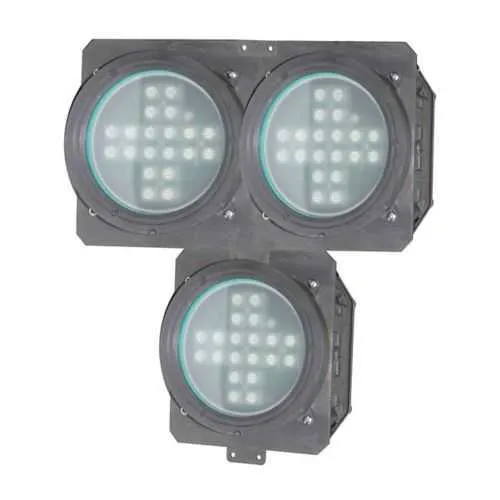

Eaton 13042311001 Floodlight - IECEx/ATEX Zone 1/2
Part Number: 13042311001
Quick Summary
Eaton 13042311001 Floodlight is a high-output LED fixture designed for hazardous locations and demanding industrial spaces. It delivers bright, reliable illumination essential for safe operations in harsh environments. A common challenge in these facilities is maintaining consistent visibility while meeting strict regulatory requirements; this luminaire addresses that with robust certifications and durable construction. The unit carries IECEx/ATEX certifications for Zone 21/22 and Zone 1/2, plus IP66/IP67 protection, ensuring performance in dust, water, and corrosive conditions. By combining energy-efficient LED technology with a long life and straightforward installation, it reduces maintenance costs and improves uptime for downstream processes and asset protection.
Product Information
Extended Description
13042311001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED floodlight, 0.72A, 5700 K color temp, 2 x M25 metal cable glands, Glass cover, 15000 lm, 106 lm/W, Anodized copper-free alum, Wide, > 0.95, Swivel bracket, 3 LED systems, 110-277 Vac, 127-270 Vdc, 147W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042311001
Product Length/Depth
465 mm
Product Height
607 mm
Product Width
325 mm
Product Weight
24.3 kg
EAN
4250959974228
Area classification
Hazardous/Classified Locations
Standards type
IEC IECEx/ATEX
IECEx/ATEX hazardous rating
Zone 22 Zone 1 Zone 2 Zone 21
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Lumens
15000
Lumens per watt
106
Optical distribution
Wide beam
Color temperature
5700 K
Lens material
Toughened glass
Entry size
2 x M25 ADE-1F2 metal cable glands
Wattage
147W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
0.72A
Power factor
> 0.95
Material
Anodized copper-free aluminum
Special features
Swivel bracket, three LED systems
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED EU-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED LED LDT photometric files
Crouse-Hinds CEAG PXLED LED LDT photometric files
The PXLED floodlight delivers 15000 lumens at 5700 K with an efficiency of 106 lm/W, supported by a rugged anodized copper-free aluminum housing and a toughened glass lens. This combination translates to measurable business impact: brighter, more uniform coverage with fewer fixtures to meet lighting requirements in large hazardous zones. It supports 110-277 Vac and 127-270 Vdc across 50-60 Hz, enabling flexible deployment across mixed-power facilities and simplifying retrofit projects. The wide beam distribution ensures clear visibility for personnel and equipment, reducing blind spots in critical areas like chemical plants and refineries. With IP66/IP67 protection and IECEx/ATEX Zone 21/22 plus Zone 1/2 ratings, compliance is built-in, minimizing risk during audits and enhancing worker safety. The compact, corrosion-resistant housing, stainless metal glands, and swivel bracket provide installation versatility and long-term durability in coastal or industrial environments. Three LED systems and two M25 gland entries improve reliability and ease of maintenance during mass servicing or partial upgrades, delivering cost savings over the asset lifecycle. This design also reduces maintenance frequency thanks to a long service life and efficient operation, translating to lower total cost of ownership for asset-intensive facilities.
Get a Quick Quote for a Eaton Crouse-Hinds 13042311001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042311001?
Enquire Now
FAQs
Installers should plan for its swivel bracket and 2 x M25 ADE-1F2 cable glands, allowing flexible aiming and protected cable routing. Ensure mounting surface is stable and within the fixture’s clearance requirements, and wire to a suitably rated power source (110-277 Vac or 127-270 Vdc, 50-60 Hz). Maintain adequate ventilation and avoid covering the lens for heat dissipation and IP protection integrity.
Key specs include 15000 lumens, 5700 K color temperature, 106 lm/W efficacy, 147 W wattage at 0.72 A, PF > 0.95, and a dual voltage range of 110-277 Vac / 127-270 Vdc with 50-60 Hz frequency. It uses toughened glass lens and an anodized copper-free aluminum housing, with IP66/IP67 protection.
Yes. It carries IECEx/ATEX certifications for Zones 21 and 22 as well as Zones 1 and 2, and a Hazardous/Classified Locations area classification. This ensures regulatory compliance for installation in chemical plants, refineries, mining operations, and offshore facilities.
Absolutely. Its dual voltage capability, robust mounting options, and compatible entry size (2 x M25 glands) support retrofit into mixed-power facilities. The compact, corrosion-resistant housing, toughened lens, and flexible aiming via the swivel bracket simplify adapting the PXLED to existing layouts with minimal downtime.
With a long service life and high-efficiency LED technology (15000 lm at 5700 K and PF > 0.95), the PXLED reduces maintenance cycles and energy costs. Its rugged construction and protective IP66/IP67 ratings minimize replacements in harsh environments, delivering lower total cost of ownership for asset-intensive operations.
