Eaton Crouse-Hinds 13042511001 Floodlight - IP66/IP67
Part Number: 13042511001
Quick Summary
Eaton Crouse-Hinds PXLED floodlight 13042511001 provides high-output illumination for hazardous locations in industrial facilities. This solution addresses the common pain of dim lighting and maintenance downtime that compromise safety and productivity in harsh environments. The unit carries IECEx/ATEX certifications and Zone 1/2/21/22 approvals, paired with IP66/IP67 protection to withstand dust, water, and rugged conditions. With a 5700 K color temperature and 25,000 lumens, it delivers crisp visibility across large work areas while maintaining energy efficiency (106 lm/W). It supports flexible power options (110-277 Vac or 127-270 Vdc) and a robust, easily mounted design that reduces installation time, downtime, and total cost of ownership. This makes it a reliable choice for hazardous-location lighting programs.
Product Information
Extended Description

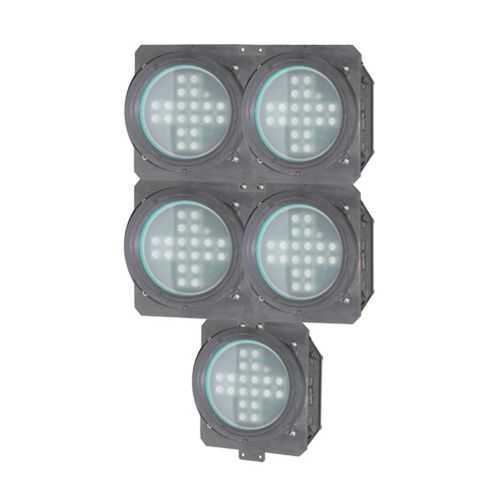

13042511001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED floodlight, 1.20A, 5700 K color temp, 2 x M25 metal cable glands, Glass cover, 25000 lm, 106 lm/W, Anodized copper-free aluminum, Wide beam, > 0.95, Swivel, 5 LED systems, 110-277 Vac, 127-270 Vdc, 245W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042511001
Product Length/Depth
465 mm
Product Height
866 mm
Product Width
328 mm
Product Weight
38.5 kg
EAN
4250959974242
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 1 Zone 2 Zone 21 Zone 22
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Lumens
25000
Lumens per watt
106
Optical distribution
Wide beam
Color temperature
5700 K
Lens material
Toughened glass
Entry size
2 x M25 ADE-1F2 metal cable glands
Wattage
245W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
1.20A
Power factor
> 0.95
Material
Anodized copper-free aluminum
Special features
Swivel bracket, five LED systems
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED Russian Customs Union
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED LED LDT photometric files
Crouse-Hinds CEAG PXLED LED LDT photometric files
Feature: The PXLED delivers 25,000 lumens at 106 lm/W with a 5700 K color temperature and a robust toughened glass lens. Business Impact: This combination provides bright, uniform illumination with high energy efficiency, lowering operating costs and extending maintenance intervals. Application: Ideal for large outdoor yards, processing areas, and intermediate platforms in Zone 1/2/21/22 environments. Feature: IP66/IP67 protection with an anodized copper-free aluminum housing. Business Impact: Protects against dust and water ingress in challenging facilities, reducing unscheduled downtime and corrosion-related replacements. Application: Outdoor industrial sites, chemical plants, and offshore installations. Feature: IECEx/ATEX certification and hazardous-location approvals (Zone 1/2/21/22). Business Impact: Ensures regulatory compliance and safer operations, supporting risk-based design and insurance considerations. Application: Petrochemical processing, refineries, and other regulated environments. Feature: Flexible power options 110-277 Vac and 127-270 Vdc with 50-60 Hz operation. Business Impact: Simplifies integration with existing power systems, reduces inventory of drivers, and supports multi-region deployments. Application: New builds and retrofits across global facilities. Feature: Swivel mounting and two M25 cable glands plus five LED systems. Business Impact: Enables versatile installation and reliable cabling while distributing heat and light evenly. Application: Variable mounting geometries, maintenance access points, and long-term reliability in harsh settings.
Get a Quick Quote for a Eaton Crouse-Hinds 13042511001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042511001?
Enquire Now
FAQs
For hazardous-location installations, plan for compliant IP66/IP67 sealing and a sturdy mount using the swivel bracket. Use the 2 x M25 ADE-1F2 metal cable glands to maintain enclosure integrity and ensure proper strain relief. Verify Zone 1/2/21/22 approvals and follow local electrical codes during mounting, cabling, and grounding to minimize maintenance needs.
The luminaire operates at 110-277 Vac or 127-270 Vdc with a 50-60 Hz frequency, drawing 1.20 A and 245 W input. It offers a power factor greater than 0.95 and a lumen output of 25,000 with 106 lm/W efficiency. This flexibility simplifies integration with global power systems and helps achieve consistent light levels across regions.
Yes. The PXLED is certified for hazardous and classified locations under IECEx/ATEX, with Zone 1 and Zone 2 classifications for gas/vapor areas and Zone 21/22 for dust-laden environments. It also carries area classification and IP66/IP67 protection, which supports compliance in petrochemical, chemical, and offshore applications.
The fixture outputs 25,000 lumens at 5700 K, with a wide beam distribution that enhances area visibility and peripheral illuminance. The high color temperature improves contrast and color rendering for safety-critical tasks. Together with a long service life and robust housing, this reduces rework and improves operator confidence in hazardous processes.
The unit’s rugged anodized aluminum housing, toughened glass lens, and dual M25 glands simplify installation and weather sealing. Five LED systems provide redundancy and long life, lowering maintenance frequency. Combined with high efficiency and regulatory compliance, this reduces energy costs and total cost of ownership over the asset lifecycle.
