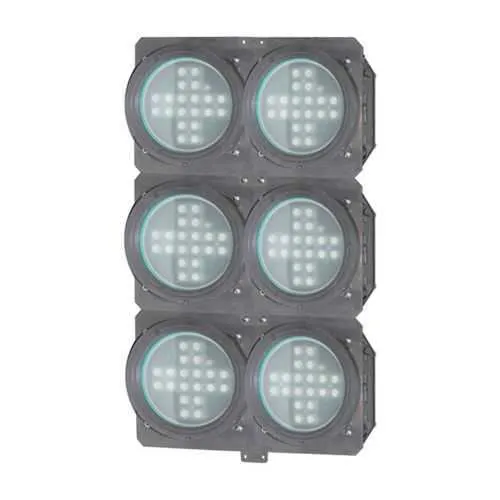

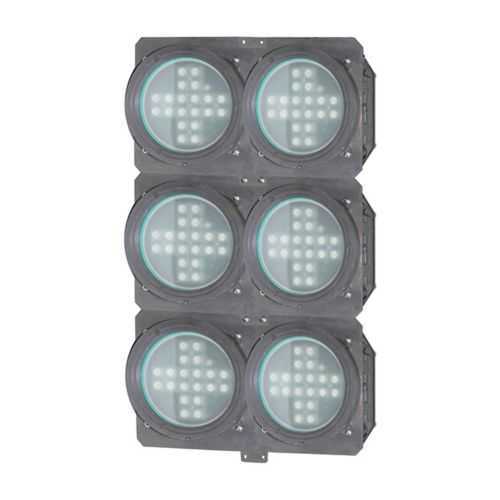

Eaton 13042610001 CEAG PXLED Floodlight - IP66/IP67
Part Number: 13042610001
Quick Summary
Eaton's Crouse-Hinds CEAG PXLED floodlight is a high-output lighting solution for hazardous and classified locations. In harsh industrial environments, unreliable fixtures drive downtime and safety risks, so robust protection matters. This luminaire carries IECEx/ATEX certifications, Zone ratings, and IP66/IP67 protection, providing compliant operation across global sites. With 30,000 lumens at 294 watts and a 5700 K color temperature, plus six LED modules and a swiveling bracket, it combines efficiency, reliability, and ease of installation for engineers and maintenance teams. For procurement and engineering, the result is predictable performance, energy savings, and reduced lifecycle costs across critical facilities.
Product Information
Extended Description
13042610001 Eaton Crouse-Hinds: Eaton Crouse-Hinds series CEAG PXLED floodlight, 1.44A, 5700 K color temp, 2 x M25 metal cable glands, Glass cover, 30000 lm, 110 lm/W, Anodized copper-free alum, Narrow, > 0.95, Swivel bracket, 6 LED systems, 110-277 Vac, 127-270 Vdc, 294W
Product Name
Eaton's Crouse-Hinds series CEAG PXLED floodlight
Catalog Number
13042610001
Product Length/Depth
465 mm
Product Height
866 mm
Product Width
328 mm
Product Weight
41.1 kg
EAN
4250959974310
Area classification
Hazardous/Classified Locations
Standards type
IECEx/ATEX IEC
IECEx/ATEX hazardous rating
Zone 2 Zone 21 Zone 1 Zone 22
Ingress protection (IP) ratings
IP66 IP67
Lamp type
LED
Lumens
30000
Lumens per watt
110
Optical distribution
Narrow beam
Color temperature
5700 K
Lens material
Toughened glass
Entry size
2 x M25 ADE-1F2 metal cable glands
Wattage
294W
Voltage rating
110-277 Vac, 127-270 Vdc
Frequency rating
50-60 Hz
Amperage Rating
1.44A
Power factor
> 0.95
Material
Anodized copper-free aluminum
Special features
Swivel bracket, six LED systems
Crouse-Hinds series CEAG PXLED Floodlight brochure
Crouse-Hinds CEAG PXLED UK-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED UK-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED UK-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED UK-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED UK-Declaration of Conformity Certificate
Crouse-Hinds CEAG PXLED operating instructions
Crouse-Hinds CEAG PXLED IES photometric files
Crouse-Hinds CEAG PXLED IES photometric files
Feature → Business Impact → Application: LED technology delivering 30,000 lumens at 294 W with an efficiency of 110 lm/W reduces energy consumption while maintaining high-visibility illumination in demanding zones; Application: hazardous plants, refineries, and chemical facilities seeking lower operating costs without compromising safety. Feature → Business Impact → Application: Narrow beam optical distribution focuses light onto key work areas, minimizing glare and eliminating dark spots; Application: process lines, loading bays, and outdoor yards where precise coverage improves throughput and safety. Feature → Business Impact → Application: Certified for IECEx/ATEX and Zone 1/2 and 21/22 with IP66/IP67 protection, ensuring regulatory compliance and rugged performance in corrosive and wet environments; Application: oil & gas, petrochem, and marine-adjacent installations requiring certified equipment. Feature → Business Impact → Application: Anodized copper-free aluminum housing with a toughened glass lens delivers durable protection against impact and corrosion; Application: outdoor enclosures, exposure-prone plant corners, and exposed outdoor areas. Feature → Business Impact → Application: 2 x M25 glands and a swivel bracket enable flexible, fast installation and simple wiring, reducing commissioning time and maintenance access issues; Application: retrofit projects and new builds with varying cable gland requirements. Feature → Business Impact → Application: Six LED systems provide distribution redundancy and reliability in critical operations, supporting uptime targets and predictable maintenance planning; Application: power plants, refineries, and hazardous area installations where outages are costly.
Get a Quick Quote for a Eaton Crouse-Hinds 13042610001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 13042610001?
Enquire Now
FAQs
The PXLED floodlight is IECEx/ATEX certified for hazardous and classified locations with Zone 1, Zone 2, Zone 21, and Zone 22 ratings, plus IP66/IP67 protection. It supports universal voltage ranges 110-277 Vac and 127-270 Vdc, 50-60 Hz, and features two M25 cable glands for flexible, code-compliant wiring in demanding environments.
The PXLED delivers 30,000 lumens at a wattage of 294 W, achieving approximately 110 lumens per watt. The 5700 K color temperature provides bright, daylight-like illumination, enabling precise visual tasks and safer operation in hazardous areas while maintaining energy efficiency.
Yes. The luminaire is rated for IECEx/ATEX hazardous locations and supports Zones 1 and 2 (gas) and 21 and 22 (dust). Combined with IP66/IP67 protection, it remains functional and compliant in both indoor and outdoor hazardous environments, reducing the need for multiple fixtures across sites.
The fixture dimensions are 465 mm in length, 866 mm in height, and 328 mm in width, with a weight of 41.1 kg. The design uses an anodized copper-free aluminum housing and toughened glass lens, suitable for exterior and harsh indoor locations where robust mounting is essential.
The PXLED features 2 x M25 ADE-1F2 metal cable glands and a swivel mounting bracket to simplify orientation and wiring. With six LED modules, the luminaire offers redundancy and easier maintenance planning. These characteristics support faster commissioning, lower downtime, and predictable lifecycle costs in challenging facilities.
