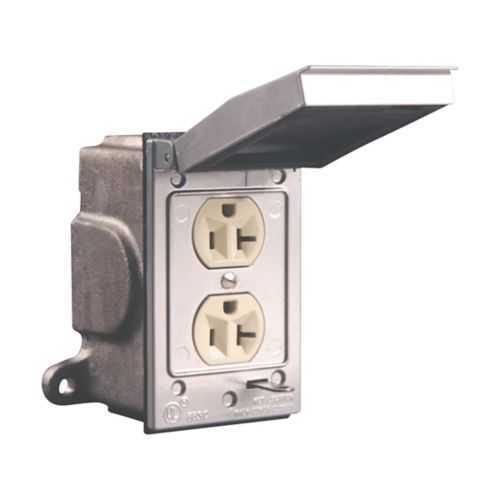

Eaton 2407A-125 Receptacle - Marine Weatherproof
Part Number: 2407A-125
Quick Summary
The Eaton Crouse-Hinds 2407A-125 receptacle is a rugged surface-mount outlet designed for marine weatherproofing and ordinary/non-hazardous locations. In challenging installations, corrosion resistance, moisture ingress, and difficult wiring can lead to downtime and maintenance costs. It meets marine ANSI/NEMA expectations and supports 125 V operation with 15A/20A NEMA 5-15/20R configurations in a single-gang, horizontal mounting footprint. Copper-free aluminum construction and a surface-mount footprint simplify wiring runs and service life, delivering reliable power delivery and lower total cost of ownership for industrial wiring projects.
Product Information
Extended Description
2407A-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 24 receptacle, 15A/20A, Copper-free aluminum, Horizontal, Surface, 5-15/20R, Single-gang, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 24 receptacle
Catalog Number
2407A-125
Product Length/Depth
3.5 in
Product Height
4.63 in
Product Width
2.94 in
Product Weight
1.6 lb
UPC
662276378254
Area classification
Ordinary/Non-Hazardous Locations
Voltage rating
125 Vac
Mounting direction
Horizontal
Mounting method
Surface
NEMA configuration
5-15/20R
Amperage Rating
15A/20A
Material
Copper-free aluminum
Number of gangs
Single-gang
Pauluhn Marine Weatherproof ANSI NEMA Receptacles catalog page
IF LBL 1565 - 2405 and 2407 Marine Weatherproof ANSI NEMA Receptacles
Eaton Specification Sheet - 2407A-125
Copper-free aluminum construction reduces weight and improves corrosion resistance, delivering durable outdoor power where weight is a concern and maintenance intervals are limited. The surface-mount, single-gang footprint enables faster installations in tight enclosures and minimizes retrofit complexity, translating to lower labor costs and faster project turnaround. With a 125 Vac rating and 15A/20A capability for NEMA 5-15/20R, this receptacle provides compatibility with common electrical loads while ensuring robust performance in harsh environments. Horizontal mounting supports convenient wiring entry and alignment within standard electrical boxes, improving field reliability and reducing mis-wiring risk. Area classification of Ordinary/Non-Hazardous Locations ensures appropriate use in non-hazardous outdoor settings, while the marine weatherproof design adds resilience against moisture, salt spray, and temperature cycling. Documentation and installation guidance from Eaton, including LBL1565 instruction sheets and specification sheets, help installers plan compliant, safe, and efficient configurations.
Get a Quick Quote for a Eaton Crouse-Hinds 2407A-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2407A-125?
Enquire Now
FAQs
Install the 2407A-125 in a compatible single-gang, surface-mount box with a horizontal mounting orientation. Use the included mounting hardware and follow the LBL1565 installation sheet for marine weatherproof sequencing, sealant recommendations, and torque guidelines. The receptacle supports 125 Vac, 15A/20A loads in a 5-15/20R configuration, making it suitable for typical outdoor circuits.
Key specs include 125 Vac operation, 15A/20A amperage rating, and NEMA 5-15/20R configuration. It is a copper-free aluminum, single-gang, horizontal mount receptacle intended for surface installation in ordinary/non-hazardous locations, aligning with common outdoor and marine wiring practices.
Yes. The 2407A-125 is designed as a marine weatherproof Pauluhn 24 receptacle. Its copper-free aluminum body and surface-mount design are optimized for outdoor enclosures and harsh environments, providing durable, reliable power delivery in shipyards, docks, and outdoor facilities.
The receptacle is appropriate for Ordinary/Non-Hazardous Locations. It aligns with Marine Weatherproof ANSI/NEMA expectations for NEMA 5-15/20R configurations, offering reliable performance in non-hazardous outdoor environments while meeting common industry standards for outdoor wiring devices.
Access Eaton’s resources for the 2407A-125, including the Pauluhn Marine Weatherproof NEMA Receptacles catalog page, the IF LBL 1565 installation sheet for 2405 and 2407 models, and the Eaton specifications sheet for 2407A-125. These documents provide wiring diagrams, mounting guidance, and compliance details to streamline procurement and installation.
