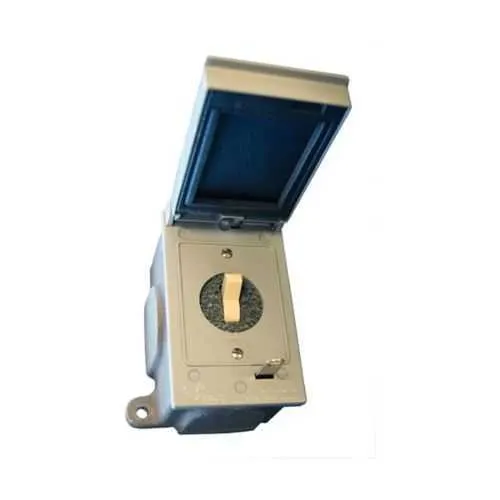

Eaton Crouse-Hinds 2424A Toggle Switch - Four-way
Part Number: 2424A
Quick Summary
The Eaton Crouse-Hinds 2424A toggle switch enables four-way control in industrial electrical panels. When retrofitting control circuits, you need rugged hardware that resists corrosion and installs quickly. Area classification specifies Ordinary/Non-Hazardous Locations, and copper-free aluminum construction helps meet material guidelines while keeping weight manageable. This surface-mount four-way switch fits Pauluhn 2400 series expectations, delivering reliable 15A, 277 VAC performance in compact footprints. By combining durability with simple mounting, it reduces maintenance and downtime while supporting efficient automation layouts.
Product Information
Extended Description
2424A Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 2400 toggle switch, 15A, Copper-free aluminum, Surface mount, Four-way, 277 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 2400 toggle switch
Catalog Number
2424A
Product Length/Depth
3.5 in
Product Height
4.63 in
Product Width
3.44 in
Product Weight
1.8 lb
UPC
662276378339
Area classification
Ordinary/Non-Hazardous Locations
Type
Four-way
Amperage Rating
15A
Voltage rating
277 Vac
Mounting style
Surface
Material
Copper-free aluminum
Pauluhn Weatherproof Toggle Switch catalog page
IF LBL 1564 - 2400 Switches
Eaton Specification Sheet - 2424A
Four-way capability streamlines multi-location control in complex automation panels, enabling you to route a single load through multiple switch positions. The business impact is clearer wiring diagrams, faster troubleshooting, and reduced panel real estate. This switch is compatible with Pauluhn 2400 toggle switch configurations, making it a practical fit for existing control architectures and new installations. Electrical rating of 15A at 277 VAC supports lighting and small-motor circuits, delivering reliable, code-compliant performance and reducing nuisance trips. Copper-free aluminum construction reduces weight and eases handling during installation and maintenance, while offering corrosion resistance in ordinary locations. Surface-mount mounting simplifies installation in compact enclosures, enabling faster retrofits and easier serviceability. Area classification Ordinary/Non-Hazardous Locations and Pauluhn 2400-series compatibility means this switch aligns with existing panels, avoiding the need for new enclosures or reworks.
Get a Quick Quote for a Eaton Crouse-Hinds 2424A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2424A?
Enquire Now
FAQs
For surface-mount panels, ensure a compatible cutout, secure mounting screws, and accessible wiring space. The 3.5 in depth, 4.63 in height, and 3.44 in width define enclosure footprint; use copper-free aluminum to reduce weight; maintain clearance for 277 VAC circuits and follow standard electrical codes during retrofit.
Key specs include a 15A amperage rating and a 277 VAC voltage rating, with a four-way configuration and surface-mount mounting. It uses copper-free aluminum and is intended for Ordinary/Non-Hazardous Locations, aligning with Pauluhn 2400-series panel designs.
No. The data specifies Ordinary/Non-Hazardous Locations area classification, which means it is not intended for wet or hazardous environments. For those conditions, explore switches with appropriate IP ratings or hazardous-location certifications.
The provided data lists area classification as Ordinary/Non-Hazardous Locations. Other certifications (such as IP, CE, or SIL) are not specified in the data; consult the manufacturer datasheets for any additional approvals needed for your application.
Copper-free aluminum reduces weight and corrosion concerns, while the surface-mount design and four-way configuration simplify installation and future reconfiguration. These factors contribute to shorter commissioning times, easier servicing, and lower long-term maintenance costs in industrial panels.
