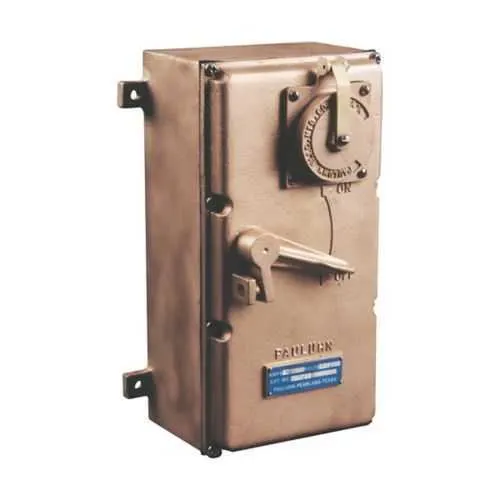

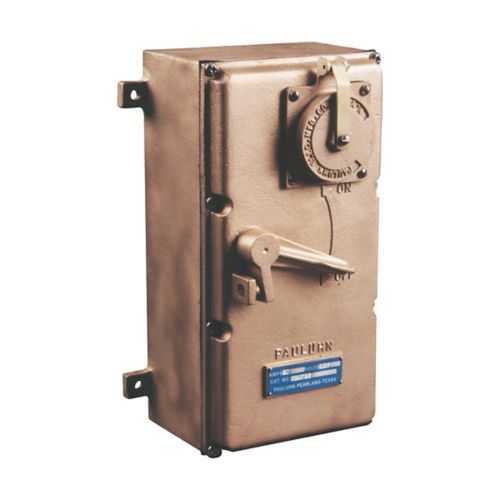

Eaton 2464B-125 Receptacle w Internal Breaker - IP66
Part Number: 2464B-125
Manufacturer
Eaton Crouse-Hinds
Part number
2464B-125
Quick Summary
Receptacle with internal breaker from Eaton Crouse-Hinds delivers reliable power distribution for rugged industrial applications. Facing moisture, dust, and downtime, maintenance teams need seals and protection that won’t compromise availability. This model features IP66 ingress protection and is suitable for Ordinary/Non-Hazardous Locations, with a 30A, 125 VAC three-wire, two-pole configuration. By integrating the internal breaker in the receptacle, you can simplify wiring, reduce panel space, and cut equipment downtime during maintenance. Engineering teams value compatibility with Pauluhn series enclosures and the robust brass construction that resists corrosion in tough environments. Overall, the 2464B-125 supports safer operations, faster installation, and predictable lifecycle costs for industrial plants.
Product Information
Extended Description
2464B-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 246/247 receptacle with internal breaker, 30A, Three-wire, two-pole, Brass, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 246/247 receptacle with internal breaker
Catalog Number
2464B-125
Product Length/Depth
7.81 in
Product Height
13.44 in
Product Width
6 in
Product Weight
31.5 lb
UPC
662276378506
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Configuration
Three-wire, two-pole
Amperage Rating
30A
Material
Brass
Voltage rating
125 Vac
Pauluhn Marine Interlock Receptacles with Internal Breaker catalog page
IF LBL 1552 - 246, 247 Watertight Receptacle and Breaker
Eaton Specification Sheet - 2464B-125
Feature: Internal breaker integration eliminates the need for additional external protection devices in many installations. Business Impact: Reduces panel clutter, shortens commissioning time, and lowers total cost of ownership. Application: Ideal for 30A, 125 VAC circuits in rugged Pauluhn receptacles used on motors, pumps, and other industrial equipment. Feature: IP66 ingress protection provides superior water and dust sealing. Business Impact: Enhances reliability in outdoor, marine, and damp environments, reducing fault-related downtime. Application: Suitable for ordinary/non-hazardous locations where harsh conditions are present. Feature: Brass construction delivers durability and corrosion resistance. Business Impact: Extends service life in salt spray and chemical exposure conditions, lowering replacement costs. Application: Long-term installations in harsh industrial settings. Feature: Three-wire, two-pole configuration simplifies wiring and improves safety coordination. Business Impact: Supports code-compliant protection and faster, safer installation workflows. Application: Common in motor control circuits and heavy-duty power distribution. Feature: Pauluhn series compatibility with robust enclosure interfaces. Business Impact: Facilitates straightforward retrofits and consistent mounting across the Pauluhn family. Application: Marine/interlock and stationary power distribution in demanding environments. Feature: Overall dimensions and weight provide a practical balance of harbor/indoors use and mounting fit. Business Impact: Predictable handling during installation and maintenance, reducing field adjustments. Application: Suitable for large enclosures and equipment racks in industrial plants.
Get a Quick Quote for a Eaton Crouse-Hinds 2464B-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2464B-125?
Enquire Now
FAQs
The 2464B-125 is a three-wire, two-pole configuration rated for 30A at 125 VAC. It supports IP66 sealing and is intended for ordinary/non-hazardous locations. For installation, ensure the enclosure is IP66-rated, verify the gasket seals, connect line and load conductors to the appropriate terminals, and confirm the internal breaker is properly wired to provide overcurrent protection. Consult the IF LBL 1552 instruction sheet and Pauluhn mounting dimensions for proper fitment in Watson interlock or marine-style assemblies.
Yes. The 2464B-125 belongs to the Pauluhn family and shares mounting interfaces designed for Pauluhn 246/247-series configurations. For marine interlock applications, refer to the Pauluhn Marine Interlock Receptacles with Internal Breaker catalog page, which provides guidance on integration, compatibility, and protective interlock options in harsh marine environments.
Key specs include a 30A amperage rating, 125 VAC voltage rating, three-wire, two-pole configuration, and brass construction. It features IP66 ingress protection and is classified for Ordinary/Non-Hazardous Locations. The product dimensions are 7.81 in depth, 13.44 in height, and 6 in width, with a weight of 31.5 lb, making it suitable for robust industrial installations.
The receptacle carries IP66 ingress protection and is classified for Ordinary/Non-Hazardous Locations. These certifications matter because IP66 ensures reliable performance in wet and dusty environments, while the area classification supports compliance with safety standards in non-hazardous settings. Together, they help protect personnel and equipment and simplify compliance in many industrial and marine applications.
Integrating the breaker inside the receptacle reduces the need for external protective devices, streamlining wiring, saving panel space, and accelerating commissioning. This can lower installation labor costs and downtime during maintenance. In addition, fewer field components mean reduced risk of mis-wiring and simpler spare-part management, contributing to predictable lifecycle costs in industrial and marine power distribution systems.
