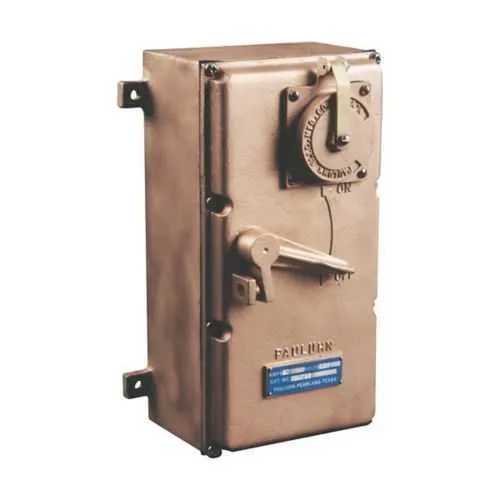

Eaton 2470B-480 Receptacle - IP66, 480 Vac
Part Number: 2470B-480
Manufacturer
Eaton Crouse-Hinds
Part number
2470B-480
Quick Summary
The Eaton 2470B-480 Receptacle is a four-wire, three-pole device with an internal breaker for 15A, 480 Vac industrial circuits. It addresses field wiring faults and moisture ingress by integrating protection inside the receptacle, reducing maintenance and downtime. With IP66 protection and brass construction, it resists water, dust, and corrosion in ordinary locations, including demanding outdoor and marine environments. As part of the Pauluhn family, it supports safe marine interlock configurations and straightforward installation in service enclosures. This rugged, precisely rated receptacle helps shorten commissioning time, boost uptime, and lower lifecycle costs for reliability-driven projects.
Product Information
Extended Description
2470B-480 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 246/247 receptacle with internal breaker, 15A, Four-wire, three-pole, Brass, 480 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 246/247 receptacle with internal breaker
Catalog Number
2470B-480
Product Length/Depth
7.81 in
Product Height
13.44 in
Product Width
6 in
Product Weight
31.5 lb
UPC
662276378629
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Configuration
Four-wire, three-pole
Amperage Rating
15A
Material
Brass
Voltage rating
480 Vac
Pauluhn Marine Interlock Receptacles with Internal Breaker catalog page
IF LBL 1552 - 246, 247 Watertight Receptacle and Breaker
Eaton Specification Sheet - 2470B-480
Feature: Internal breaker is integrated into the receptacle. Business Impact: simplifies control wiring, speeds fault isolation, and minimizes field wiring errors in rugged installations. Application: ideal for 15A circuits in industrial controls and outdoor enclosures where space is at a premium. Feature: IP66 ingress protection. Business Impact: keeps moisture and dust out, lowering corrosion risk and service calls. Application: wash-down capable environments, outdoor enclosures, and marine facilities. Feature: Brass construction. Business Impact: delivers durable, corrosion-resistant performance in harsh environments; reduces replacement costs. Application: exposed electrical connections in factories, chemical plants, and outdoor sites. Feature: Four-wire, three-pole configuration. Business Impact: ensures safe three-phase connections and solid equipment grounding; simplifies panel wiring. Application: aligns with 480 Vac motor control circuits and Pauluhn interlock systems. Feature: 15A at 480 Vac. Business Impact: matches common industrial power distribution, minimizes adapters, and improves protection coordination. Application: used on 480 Vac systems across industrial facilities. Feature: Pauluhn compatibility. Business Impact: ensures seamless integration with existing Pauluhn interlock ecosystems. Application: marine interlock and enclosure setups.
Get a Quick Quote for a Eaton Crouse-Hinds 2470B-480
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2470B-480?
Enquire Now
FAQs
The 2470B-480 is a four-wire, three-pole receptacle with an integrated internal breaker rated at 15A and suitable for 480 Vac. It features IP66 protection and brass construction, designed for ordinary/non-hazardous locations. It is compatible with Pauluhn interlock configurations and fit for industrial control panels and outdoor enclosures, with attention to proper mounting clearance and enclosure compatibility.
Key specs include a 15A amperage rating, 480 Vac voltage rating, four-wire, three-pole configuration, brass construction, and IP66 ingress protection. It weighs approximately 31.5 lb and measures about 7.81 in long, 13.44 in high, and 6 in wide. The UPC is 662276378629, and it is part of the Pauluhn 246/247 family with an internal breaker.
Yes. The 2470B-480 is designed as part of the Pauluhn family for marine interlock receptacles with internal breakers. It provides IP66 protection and a robust brass body, supporting safe operation in marine and rugged environments while remaining suitable for ordinary locations. Its four-wire, three-pole arrangement simplifies wiring in interlock configurations.
The receptacle carries IP66 ingress protection and is classified for Ordinary/Non-Hazardous Locations. This makes it suitable for environments where moisture and dust exposure are likely but where hazardous classifications do not apply, supporting reliable performance in factories, outdoor enclosures, and marine settings.
By integrating an internal breaker, the receptacle reduces field wiring complexity and speeds fault isolation, lowering maintenance trips. Its IP66 rating and brass construction improve durability in harsh environments, extending service life. For projects with 480 Vac systems, the 15A rating aligns with common power distributions, delivering improved uptime and lower lifecycle costs.
