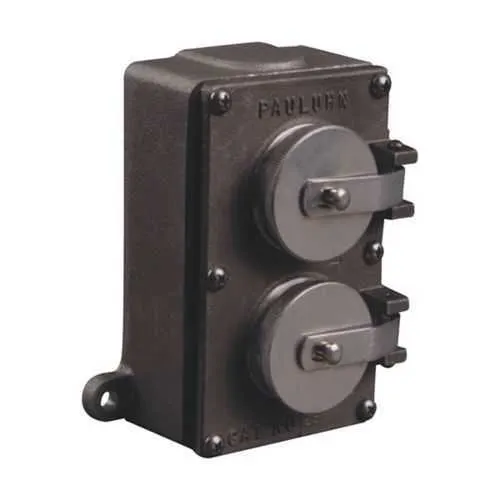

Eaton Crouse-Hinds 2584A-125 Receptacle - IP66
Part Number: 2584A-125
Quick Summary
The Eaton Crouse-Hinds 2584A-125 is a rugged surface-mount Pauluhn receptacle for marine and industrial control panels. It addresses reliability pain points like corrosion, dirt ingress, and downtime by combining a durable copper-free aluminum body with a proven marine design. The unit carries IP66 protection and Ordinary/Non-Hazardous area classification, underscoring suitability for washdown zones and non-hazardous facilities in harsh environments. With 125 Vac, two receptacles, and a surface-mount footprint, it simplifies panel layout while delivering dependable power for critical equipment. This combination supports efficiency gains through faster installation, improved ingress protection, and reduced maintenance costs in industrial, marine, and outdoor settings. Engineers will also appreciate long-term compliance with IP66 and robust materials designed for challenging environments.
Product Information
Extended Description
2584A-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 25B receptacle, 15A/20A, Copper-free aluminum, Surface, 5-15/20R, Two receptacles, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 25B receptacle
Catalog Number
2584A-125
Product Length/Depth
4 in
Product Height
5.5 in
Product Width
2.88 in
Product Weight
1.5 lb
UPC
662276378926
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting method
Surface
Type
Two receptacles
Amperage Rating
15A/20A
NEMA configuration
5-15/20R
Voltage rating
125 Vac
Pauluhn Marine Watertight ANSI NEMA Receptacles and Plugs catalog page
Eaton Specification Sheet - 2584A-125
Copper-free aluminum construction reduces galvanic corrosion and lowers weight, enabling easier field handling and shipping while extending service life in damp and coastal environments. This material choice directly improves reliability in harsh conditions and helps you meet environmental requirements without sacrificing strength. IP66 protection provides robust ingress resistance against dust and water jets, minimizing unplanned downtime and maintenance in washdown bays, outdoor panels, and marine installations. Surface mounting streamlines installation, reducing hardware needs and on-site labor while enabling cleaner, denser panel layouts for compact control enclosures. The 15A/20A amperage rating with 5-15/20R configuration supports flexible power distribution across two receptacles, cutting wiring complexity and saving panel space in high-density electrical racks. Pauluhn’s two-receptacle design aligns with standard Pauluhn 25B accessories, ensuring compatibility and reducing retrofit costs in existing facilities. Ordinary/Non-Hazardous area classification confirms suitability for non-volatile environments and everyday industrial settings where reliability matters most.
Get a Quick Quote for a Eaton Crouse-Hinds 2584A-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2584A-125?
Enquire Now
FAQs
For installation, plan a surface-mount footprint on a flat panel or enclosure, ensuring access to both receptacles and adequate clearance for ventilation. The unit weighs about 1.5 lb and measures 4 in long by 5.5 in high and 2.88 in wide, with a copper-free aluminum body, IP66 protection, and a 125 Vac rating. Use compatible Pauluhn mounting hardware and sealants suitable for non-hazardous locations.
Yes. The 2584A-125 is designed for harsh environments, featuring copper-free aluminum construction and IP66 ingress protection, which helps resist dust ingress and water exposure typical in marine and washdown applications. Its Ordinary/Non-Hazardous area classification further supports reliable operation in non-hazardous facilities that require robust outdoor or wet-area performance.
The receptacle supports two 5-15/20R outlets rated at 15A/20A, 125 Vac, in a surface-mount configuration. It provides two receptacles in a single unit for streamlined distribution and reduces wiring complexity in control panels. The NEMA configuration is 5-15/20R, suitable for common North American power connections.
The 2584A-125 carries IP66 ingress protection and is classified for Ordinary/Non-Hazardous Locations. While it is not specified for hazardous locations or SIL/CE certifications in the provided data, IP66 and non-hazardous classification make it a solid choice for washdown, outdoor, and non-hazardous industrial environments.
Long-term ROI derives from corrosion resistance, reduced maintenance needs, and quicker installation. Copper-free aluminum minimizes galvanic corrosion in damp environments, while IP66 protection reduces downtime due to ingress. The two-receptacle design lowers wiring density and panel footprint, translating to lower labor costs during installation and simpler future upgrades or replacements.
