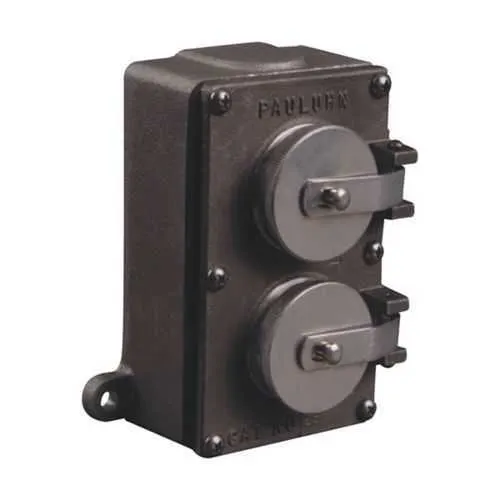

Eaton Crouse-Hinds 2584A-125-C1 Receptacle - IP66
Part Number: 2584A-125-C1
Quick Summary
The Eaton Crouse-Hinds 2584A-125-C1 receptacle provides rugged surface power connections for 125 V systems in harsh industrial environments. Maintenance teams struggle with ingress, corrosion, and a lack of robust mounting options in outdoor or washdown areas. Key certifications and protections include IP66 ingress protection and ordinary/non-hazardous area classification, ensuring reliable operation in challenging environments. For word-span and procurement value, consider its copper-free aluminum construction, surface mounting, and two-receptacle configuration compatible with standard 1/2" trade entries. This translates to reduced downtime and faster field replacements, while maintaining safety standards in non-hazardous areas. With 15/20 A capability and 125 Vac rating, it supports common control and instrumentation circuits while simplifying panel layout. Engineers rely on Pauluhn series receptacles as a proven solution for demanding environments.
Product Information
Extended Description
2584A-125-C1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 25B receptacle, 15A/20A, Copper-free aluminum, Surface, 5-15/20R, Through feed, 1/2", Two receptacles, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 25B receptacle
Catalog Number
2584A-125-C1
Product Length/Depth
4 in
Product Height
5.5 in
Product Width
2.88 in
Product Weight
1.7 lb
UPC
662276378933
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Copper-free aluminum
Mounting method
Surface
Type
Two receptacles
Amperage Rating
15A/20A
Style
Through feed
Trade size
1/2"
NEMA configuration
5-15/20R
Voltage rating
125 Vac
Pauluhn Marine Watertight ANSI NEMA Receptacles and Plugs catalog page
Eaton Specification Sheet - 2584A-125-C1
Feature Copper-free aluminum body. Business Impact The copper-free design resists corrosion in chloride-rich environments, extending service life and lowering maintenance costs. Application Outdoor panels, washdown zones, and corrosive-industrial locations.Feature IP66 ingress protection with surface mounting. Business Impact Provides reliable operation in dusty and wet conditions, reducing unplanned downtime and keeping equipment compliant. Application Exterior enclosures and non-hazardous location installations.Feature Through-feed design and 1/2" trade size. Business Impact Simplifies conduit routing and speeds installation, shortening panel build time and improving project throughput. Application Control panels and equipment racks in tight spaces.Feature Two receptacles with 5-15/20R configuration. Business Impact Enables dual-circuit power for machines and instruments, reducing hardware footprint and wiring complexity. Application Dual-current power needs in limited panel space.Feature 125 Vac, 15A/20A rating. Business Impact Aligns with standard control circuits, ensuring compatibility with common industrial devices and predictable electrical performance. Application Instrumentation power and control feeds in non-hazardous environments.Feature Pauluhn 25B lineage and surface-mount compatibility. Business Impact Leverages a proven, maintenance-friendly design with straightforward installation and serviceability. Application Retrofit and new-build installations in harsh facilities.
Get a Quick Quote for a Eaton Crouse-Hinds 2584A-125-C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2584A-125-C1?
Enquire Now
FAQs
Install the 2584A-125-C1 on a suitable surface panel using standard 1/2 inch conduit entries. The through-feed design simplifies wiring runs between panels, minimizes the number of terminations, and reduces potential points of failure. Ensure the enclosure surface is clean, compatible with copper-free aluminum, and that IP66 seals are properly engaged to maintain protection.
Yes. This receptacle carries an IP66 ingress protection rating, making it suitable for dusty and wet environments. It is classified for Ordinary/Non-Hazardous Locations, providing assurance that it meets common industrial safety and installation standards without requiring specialized environments.
The 2584A-125-C1 uses a 5-15/20R NEMA configuration with a 125 VAC rating. It supports both 15A and 20A circuits, enabling flexibility for servo controllers, motor starters, and general-purpose control circuits in standard industrial panels.
The receptacle uses copper-free aluminum, offering superior corrosion resistance in harsh environments and reducing maintenance costs. It is designed for surface mounting, which speeds installation and provides a robust mounting surface for durable outdoor or washdown installations.
By combining IP66 protection, copper-free aluminum construction, and a through-feed, dual-receptacle design, it lowers maintenance and replacement costs, minimizes downtime, and simplifies wiring. This translates to faster panel builds, longer service life in demanding environments, and improved uptime for critical machinery and instrumentation.
