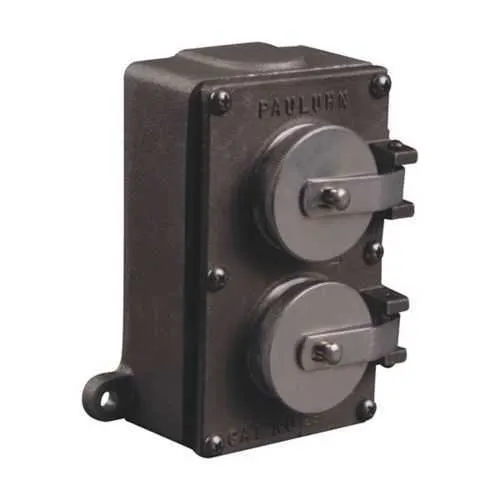

Eaton 2584B-125 Receptacle - 15A/20A, Brass, Surface IP66
Part Number: 2584B-125
Quick Summary
The Eaton 2584B-125 Receptacle is a rugged, surface-mount power outlet for marine and industrial enclosures. Customers often struggle with water ingress and corrosion that drive maintenance costs and downtime. With IP66 protection and ordinary/non-hazardous location classification, this brass two-receptacle design delivers reliability. It supports 15A/20A at 125 Vac and uses the standard 5-15/20R configuration to fit common cord sets. Compact 4 in depth and surface mounting simplify installation, reduce wiring points, and improve enclosure sealing. These features translate to improved uptime and lower total cost of ownership for industrial systems.
Product Information
Extended Description
2584B-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 25B receptacle, 15A/20A, Brass, Surface, 5-15/20R, Two receptacles, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 25B receptacle
Catalog Number
2584B-125
Product Length/Depth
4 in
Product Height
5.5 in
Product Width
2.88 in
Product Weight
4 lb
UPC
662276378964
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting method
Surface
Type
Two receptacles
Amperage Rating
15A/20A
NEMA configuration
5-15/20R
Voltage rating
125 Vac
Pauluhn Marine Watertight ANSI NEMA Receptacles and Plugs catalog page
Eaton Specification Sheet - 2584B-125
Feature: Brass construction provides corrosion resistance in wet and humid environments → Business Impact: Longer service life and reduced maintenance costs in marine and outdoor installations → Application: Pauluhn two-receptacle outlets on equipment enclosures. Feature: IP66 ingress protection ensures watertight performance in demanding conditions → Business Impact: Lower enclosure leakage risks and fewer field failures → Application: Outdoor, dockside, and splash-prone locations. Feature: Surface mounting simplifies installation and minimizes wall depth requirements → Business Impact: Faster commissioning and reduced mounting hardware costs → Application: Tight spaces or shallow panels in industrial facilities. Feature: 15A/20A, 125 Vac rating with 5-15/20R configuration → Business Impact: Flexible power distribution for standard plug systems → Application: Two-circuit feeds for control panels or portable equipment. Feature: Ordinary/Non-Hazardous Location classification ensures compliance with common industrial codes → Business Impact: Broad applicability without specialized enclosure design → Application: General-purpose industrial and commercial installations. Insight: The Pauluhn design aligns with marine-watertight standards, delivering robust performance even in vibration-heavy environments, and helps minimize unexpected outages due to moisture ingress.
Get a Quick Quote for a Eaton Crouse-Hinds 2584B-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2584B-125?
Enquire Now
FAQs
The 2584B-125 is a surface-mount receptacle designed for flat panels or enclosure walls. It aligns with standard NEMA 5-15/20R outlet configurations and is compatible with typical cord sets used in industrial equipment. When planning mounting, ensure a clean, dry surface and account for the 4 in length and 2.88 in width to fit available space while preserving IP66 seal integrity.
This model provides a dual receptacle configuration rated for 15A/20A at 125 Vac, using the 5-15/20R arrangement. It features brass construction and IP66 ingress protection, suitable for ordinary/non-hazardous locations. These specs support reliable power distribution to two circuits while maintaining a robust seal against dust and water exposure.
Yes. The Pauluhn family and its IP66 rating are designed for challenging environments, including marine and outdoor use. Brass construction resists corrosion, and the surface-mount design simplifies installation on hull-mounted panels or weather-exposed enclosures, providing dependable power connections where moisture is a concern.
The unit is classified for Ordinary/Non-Hazardous Locations and features IP66 ingress protection, indicating strong resistance to water and dust. Its NEMA 5-15/20R configuration supports common residential and industrial plugs, helping ensure compatibility with routine power cords used in non-hazardous industrial environments.
The brass construction and IP66 seal reduce corrosion and ingress-related failures, lowering maintenance needs and associated downtime. The two-receptacle design can simplify wiring and improve installation efficiency, potentially reducing labor costs. Over a typical project lifecycle, these durability and installation advantages translate to lower total cost of ownership.
