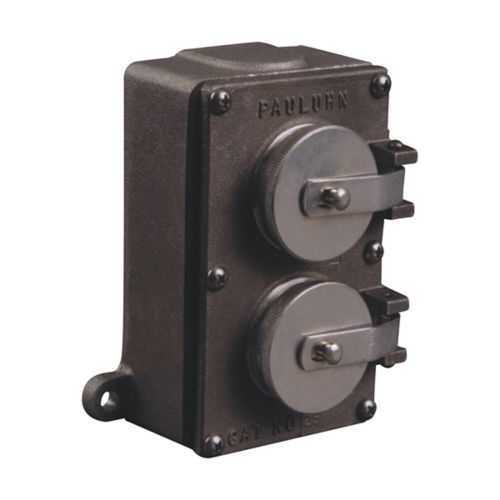

Eaton Crouse-Hinds 2584B-125-C1 Receptacle - IP66
Part Number: 2584B-125-C1
Quick Summary
2584B-125-C1 receptacle provides durable 125 VAC power distribution for industrial enclosures. In harsh environments, sealing gaps, corrosion resistance, and reliable ingress protection can complicate installation. It is built for Ordinary/Non-Hazardous Locations with IP66 ingress protection and brass construction, supporting through-feed wiring and two receptacles for robust panel power. The Pauluhn series design helps streamline procurement and lifecycle management, while remaining compatible with standard NEMA configurations. By combining rugged materials with a compact surface-mount footprint, this receptacle reduces maintenance intervals and total cost of ownership for critical equipment in control panels, outdoor enclosures, and marine applications. For engineers seeking dependable, code-compliant power distribution, it delivers tangible business value and installation peace of mind.
Product Information
Extended Description
2584B-125-C1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 25B receptacle, 15A/20A, Brass, Surface, 5-15/20R, Through feed, 1/2", Two receptacles, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 25B receptacle
Catalog Number
2584B-125-C1
Product Length/Depth
4 in
Product Height
5.5 in
Product Width
2.88 in
Product Weight
4 lb
UPC
662276378971
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting method
Surface
Type
Two receptacles
Amperage Rating
15A/20A
Style
Through feed
Trade size
1/2"
NEMA configuration
5-15/20R
Voltage rating
125 Vac
Pauluhn Marine Watertight ANSI NEMA Receptacles and Plugs catalog page
Eaton Specification Sheet - 2584B-125-C1
Feature: Brass construction provides inherent corrosion resistance and durability in harsh environments. Business Impact: Extends service life and reduces replacement costs in outdoor, marine, or washdown areas. Application: Pauluhn 25B receptacle installed in control panels and outdoor enclosures. Feature: IP66 ingress protection ensures dust-tight and water-tight performance. Business Impact: Maintains reliability in wet and dusty conditions, lowering downtime. Application: Industrial plants, coastal facilities, and equipment exposed to washdowns. Feature: Surface mounting with a 1/2" trade size increases installation flexibility. Business Impact: Speeds up mounting and reduces mounting hardware, saving labor time. Application: New panel builds and retrofit projects in compact spaces. Feature: Through-feed configuration with two receptacles simplifies wiring and reduces routing complexity. Business Impact: Fewer junctions, enhanced reliability, and lower wiring costs. Application: Power distribution in compact control panels. Feature: Amperage rating 15A/20A accommodates mixed-load equipment safely. Business Impact: Supports common lab, automation, and appliance loads without oversizing. Application: 125 VAC circuits for motors, sensors, and controllers. Feature: Brass, surface-mount 4 in length and 5.5 in height provide a sturdy, accessible outlet footprint. Business Impact: Stable mounting footprint with predictable clearance; reduces field rework. Application: Enclosures requiring reliable power outlets with accessible wiring.
Get a Quick Quote for a Eaton Crouse-Hinds 2584B-125-C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2584B-125-C1?
Enquire Now
FAQs
The 2584B-125-C1 is designed for through-feed wiring and a 1/2" trade size, enabling straightforward, secure connections in surface-mounted installations. Its 4 inch depth and 5.5 inch height provide a predictable footprint for panel layouts, while the brass construction offers durability in demanding environments. This makes retrofit projects and new builds faster, with fewer field modifications and reduced commissioning time.
IP66 protection means the receptacle is dust-tight and protected against powerful water jets, which is critical for marine, outdoor, and washdown environments. This level of ingress protection minimizes moisture intrusion, reduces corrosion risk, and lowers maintenance frequency. Engineers can specify the 2584B-125-C1 with confidence in environments where exposure to water, humidity, and dust is routine.
Yes, the 2584B-125-C1 supports both 15A and 20A loads at 125 VAC, with a NEMA configuration of 5-15/20R and a dual-receptacle layout. This configuration is ideal for mixed-load panels where different devices require different plug types. The through-feed design simplifies wiring for higher reliability in automation panels and field-installed power distribution.
The receptacle is rated for Ordinary/Non-Hazardous Locations and features IP66 ingress protection. While not labeled for hazardous environments, this combination supports safe operation in standard industrial and commercial settings, including marine-and outdoor-ready panels. The brass construction further reinforces robustness, aiding long-term compliance with typical industry installation standards.
The Pauluhn 2584B-125-C1 delivers predictable performance with corrosion-resistant brass, IP66 protection, and a compact surface-mount footprint that speeds installation. The dual receptacles reduce wiring runs and part counts, lowering labor costs and maintenance overhead. Over time, fewer field failures and easier replacements translate into measurable ROI for panel builders and maintenance teams.
