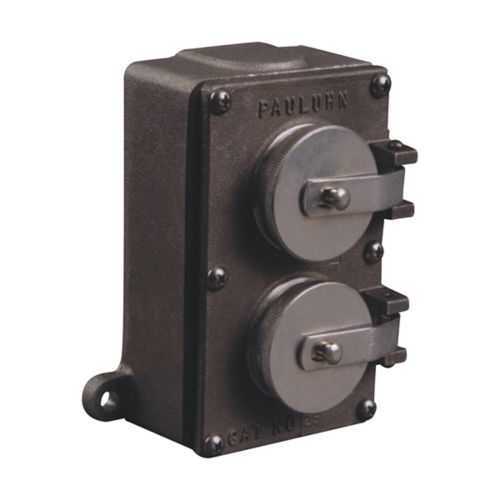

Eaton 2584B-125-C2 Receptacle Brass Surface Mount IP66
Part Number: 2584B-125-C2
Quick Summary
Eaton 2584B-125-C2 Receptacle is a rugged surface-mounted power connector designed for industrial enclosures and outdoor equipment. Engineers often battle moisture ingress, corrosion, and compatibility gaps when expanding power in harsh environments. With IP66 protection and brass construction, it supports ordinary/non-hazardous locations and a NEMA 5-15/20R configuration for reliable, code-compliant service. Designed for quick installation and long service life, it helps reduce maintenance costs while enabling scalable power distribution across machinery and control panels. This model aligns with Pauluhn's rugged suite for marine and industrial applications.
Product Information
Extended Description
2584B-125-C2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 25B receptacle, 15A/20A, Brass, Surface, 5-15/20R, Through feed, 3/4", Two receptacles, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 25B receptacle
Catalog Number
2584B-125-C2
Product Length/Depth
4 in
Product Height
5.5 in
Product Width
2.88 in
Product Weight
4.5 lb
UPC
662276378988
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting method
Surface
Type
Two receptacles
Amperage Rating
15A/20A
Style
Through feed
Trade size
3/4"
NEMA configuration
5-15/20R
Voltage rating
125 Vac
Pauluhn Marine Watertight ANSI NEMA Receptacles and Plugs catalog page
Eaton Specification Sheet - 2584B-125-C2
Feature: IP66 ingress protection; Business Impact: protects internal contacts from dust and water ingress in washdown and outdoor environments, reducing field failures; Application: use in control panels exposed to moisture or dust. Feature: Brass construction; Business Impact: superior corrosion resistance and durability, extending service life in harsh environments; Application: reliable operation in marine, chemical, and industrial settings. Feature: Through-feed, 3/4-inch trade size; Business Impact: simplifies wiring runs and minimizes termination points, speeding installation and reducing labor costs; Application: panel power distribution and daisy-chained receptacle configurations. Feature: 15A/20A, 125 VAC; Business Impact: supports common loads with reduced nuisance trips, improving uptime; Application: standard instrumentation, motors, and equipment connections. Feature: Surface mounting; Business Impact: fast, secure mounting with robust mechanical support; Application: fixed enclosures and equipment housings. Feature: Two receptacles; Business Impact: increases outlet availability while preserving a compact footprint; Application: space-saving power distribution in control panels and electrical enclosures. The combination of these features delivers measurable efficiency gains, stronger compliance with ordinary location requirements, and lower total cost of ownership over the product lifecycle.
Get a Quick Quote for a Eaton Crouse-Hinds 2584B-125-C2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2584B-125-C2?
Enquire Now
FAQs
To install, mount the 2584B-125-C2 on a suitable enclosure surface, route through-feed conductors via the 3/4" trade size, and secure with compatible hardware. Ensure the gasket seating provides IP66 integrity and connect the two receptacles to the corresponding 125 VAC supply. Verify enclosure clearance and torque requirements per the Eaton spec sheet to maintain safe, code-compliant operation.
The unit is rated for 15A/20A at 125 VAC with two NEMA 5-15/20R receptacles. It uses a through-feed, 3/4" trade size for wiring, and is designed for surface mounting in industrial panels. This configuration supports common loads while maintaining robust protection in challenging environments.
Yes. The receptacle is IP66 rated, offering excellent dust and water ingress protection, which makes it suitable for ordinary/non-hazardous locations in outdoor, washdown, and marine settings. Brass construction adds corrosion resistance, contributing to longer service life in wet or salt-air environments.
Key compliance indicators include IP66 ingress protection and suitability for Ordinary/Non-Hazardous Locations, aligning with the Pauluhn 25B receptacle family. The product is documented in Eaton’s Pauluhn Marine Watertight catalog and datasheets, providing installation guidance and performance assurances for rugged industrial applications.
Brass construction and IP66 protection reduce corrosion-related failures and moisture-related downtime, extending service life in harsh environments. The through-feed design and surface-mount installation speed up wiring and commissioning, lowering labor costs. Overall, fewer field replacements and faster maintenance cycles translate to lower total cost of ownership and higher equipment uptime.
