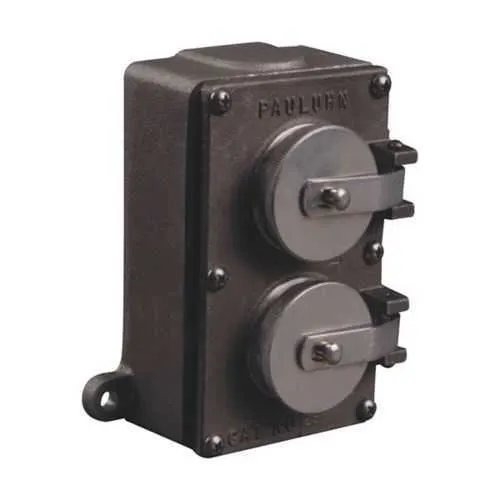

Eaton Crouse-Hinds 2584B-250 Receptacle - IP66
Part Number: 2584B-250
Quick Summary
2584B-250 receptacle is a rugged, surface-mount power connection designed for 250 V AC systems in industrial environments. For maintenance teams and installers, moisture ingress, mounting challenges, and unreliable seals can cause costly downtime. Key certifications and attributes include IP66 protection, Ordinary/Non-Hazardous Location classification, and brass construction that resist corrosion in harsh environments. Relying on these features translates to longer service life, faster installations, and lower total cost of ownership for control panels, enclosures, and outdoor equipment.
Product Information
Extended Description
2584B-250 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 25B receptacle, 15A/20A, Brass, Surface, 6-15/20R, Two receptacles, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 25B receptacle
Catalog Number
2584B-250
Product Length/Depth
4 in
Product Height
5.5 in
Product Width
2.88 in
Product Weight
4.4 lb
UPC
662276379015
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting method
Surface
Type
Two receptacles
Amperage Rating
15A/20A
NEMA configuration
6-15/20R
Voltage rating
250 V AC
Pauluhn Marine Watertight ANSI NEMA Receptacles and Plugs catalog page
Eaton Specification Sheet - 2584B-250
IP66-rated brass surface receptacle with two 6-15/20R outlets delivers rugged protection for power connections in dusty, wet, and outdoor environments. The brass construction resists corrosion far better than common aluminum or zinc die cast, reducing maintenance cycles in harsh plant or marine settings. Sealing features guard against water ingress even when hoses or rain splash across enclosures, while the compact 4 in depth, 5.5 in height, and 2.88 in width fit tight panels without sacrificing accessibility. This combination supports reliable, continuous power delivery in environments where downtime is costly. With a 15A/20A amperage rating and a 6-15/20R configuration, it supports typical industrial loads while providing dual outlets in a single device. This arrangement lowers panel density, simplifies wiring, and reduces labor during installation and maintenance. A 250 V AC rating ensures compatibility with standard plant power supplies and drive systems, enabling quick retrofits of aging equipment and easier upgrades for outdoor or marine installations. Surface mounting simplifies integration onto flat panels or walls while preserving access to the two receptacles. The unit’s 4 in depth, combined with its 5.5 in height and 2.88 in width, aligns with Pauluhn footprints and minimizes enclosure modification. The design supports compatibility with Eaton Crouse-Hinds Pauluhn series catalogs, helping engineers maintain consistent plug-in configurations across new and existing equipment. Brass construction delivers robust mechanical strength for repeated plug-in cycles in demanding workflows. The IP66 rating, together with Ordinary/Non-Hazardous Location classification, addresses environmental and regulatory requirements typical of industrial facilities, outdoor enclosures, and ships. By standardizing on a single, durable receptacle with dual outlets, teams can reduce spare-part inventories and improve uptime across control panels, cargo handling systems, and outdoor electrical gear.
Get a Quick Quote for a Eaton Crouse-Hinds 2584B-250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2584B-250?
Enquire Now
FAQs
The 2584B-250 is a surface-mount receptacle designed for straightforward panel installation. Plan for a flat mounting surface, align with standard Pauluhn footprint patterns, and use appropriate hardware to secure the unit. Seal the enclosure per IP66 requirements to maintain watertight performance. Ensure the two receptacles remain accessible for quick plug-in and removal, and verify the 250 V AC supply is within the 15A/20A rating.
This model provides two receptacles configured as 6-15/20R with a total amperage rating of 15A/20A and a voltage rating of 250 V AC. The dual-outlet design reduces panel density and wiring complexity while supporting concurrent loads. It is suitable for standard industrial equipment, control panels, and outdoor or marine installations requiring reliable two-point power access.
Yes. The receptacle carries an IP66 rating, offering dust-tight protection and protection against powerful water jets, making it well-suited for outdoor use and non-hazardous areas. Its brass construction further enhances corrosion resistance in moist or humid environments common to plants, dockyards, and marine applications, contributing to longer service life and reduced maintenance.
Key compliance attributes include the IP66 ingress protection rating and Ordinary/Non-Hazardous Location area classification. The product follows Pauluhn series specifications for surface-mounted, two-receptacle configurations and adheres to the standard NEMA 6-15/20R outlet footprint, enabling straightforward integration with existing Pauluhn-based installations and ensuring reliable performance in non-hazardous industrial settings.
The combination of corrosion-resistant brass, IP66 protection, and a dual-outlet design reduces maintenance cycles and spare-parts inventory while increasing uptime. Faster installation due to the surface-mount approach minimizes labor costs, and the robust construction lowers replacement frequency in demanding environments, contributing to a lower total cost of ownership over the equipment’s lifecycle.
