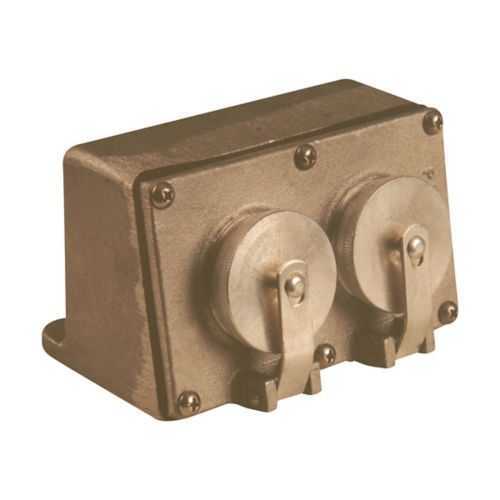

Eaton Crouse-Hinds 2590B-125 Receptacle - IP66
Part Number: 2590B-125
Quick Summary
The 2590B-125 is a surface-mounted receptacle designed for durable 125 Vac power delivery in industrial environments. Engineers frequently grapple with corrosion, washdowns, and downtime; this unit's brass construction and IP66 protection help mitigate those challenges. Key certifications include IP66 ingress protection and suitability for Ordinary/Non-Hazardous Locations, aligning with common industrial compliance requirements. Its Pauluhn lineage ensures rugged sealing and reliable electrical contact in harsh settings, while standard NEMA 5-15/20R configuration supports quick cord-and-plug integration. By combining robust mechanical design with easy installation and traceable materials, it delivers consistent performance, lower maintenance costs, and improved uptime for critical equipment.
Product Information
Extended Description
2590B-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 25 receptacle, 15A/20A, Brass, Surface, 5-15/20R, One receptacle, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 25 receptacle
Catalog Number
2590B-125
Product Length/Depth
3.44 in
Product Height
3.5 in
Product Width
3 in
Product Weight
3 lb
UPC
662276379060
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Mounting method
Surface
Type
One receptacle
Amperage Rating
15A/20A
NEMA configuration
5-15/20R
Voltage rating
125 Vac
Pauluhn Marine Watertight ANSI NEMA Receptacles and Plugs catalog page
Eaton Specification Sheet - 2590B-125
Feature: Brass construction provides inherent corrosion resistance and robust electrical conductivity. Impact: Extends service life in humid, salty, or spray-down environments, lowering replacement costs and downtime. Application: Ideal for outdoor panels, damp enclosures, and rugged factory floors where fasteners and contacts see constant exposure. Feature: IP66 ingress protection guards against water and dust intrusion. Impact: Minimizes field failures and simplifies compliance for washdown areas and outdoor installations. Application: Suitable for process environments, shipping docks, and damp locations requiring reliable power access. Feature: Surface mounting simplifies installation. Impact: Reduces enclosure modification and enables rapid deployment during retrofits. Application: Works well on flat, accessible surfaces of control panels and equipment housings. Feature: 15A/20A at 125 Vac; NEMA 5-15/20R compatibility. Impact: Aligns with standard power cords and branch circuits, reducing wiring complexity. Application: General-purpose receptacle use in labs, manufacturing floors, and utility rooms. Feature: Pauluhn 25 series design with Ordinary/Non-Hazardous Locations rating. Impact: Delivers rugged performance while meeting common regulatory expectations. Application: Industrial facilities requiring reliable, compliant receptacles in non-hazardous areas.
Get a Quick Quote for a Eaton Crouse-Hinds 2590B-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2590B-125?
Enquire Now
FAQs
For proper installation, ensure a clean, flat mounting surface and adequate clearance for the 3.44 in depth. Use the specified mounting holes or hardware suitable for brass components, seal the enclosure interface to preserve IP66 integrity, and verify the NEMA 5-15/20R configuration matches your cordset. Always follow manufacturer torque recommendations and local code requirements.
IP66 ensures complete protection against powerful water jets and dust ingress, which minimizes entry of moisture and particulates that can corrode contacts or cause arcing. This protection translates to fewer field failures, longer service life, and reduced maintenance intervals in washdown bays, outdoor cabinets, and damp industrial spaces.
Yes. The 2590B-125 uses a NEMA 5-15/20R receptacle design compatible with common 125 Vac plug sets. This compatibility simplifies sourcing, reduces wiring complexity, and accelerates installation in general-purpose power applications across manufacturing floors, labs, and utility rooms that rely on standard plug-and-socket connectivity.
Best suited for ordinary/non-hazardous locations requiring durable, weather-resistant power access, the Pauluhn 25 series provides rugged sealing, reliable electrical contacts, and straightforward mounting. Ideal for outdoor enclosures, process areas with moisture exposure, and equipment rooms where uptime and simple maintenance are critical.
Schedule regular inspections of the receptacle and mating plug for signs of wear or corrosion, particularly in damp or saline environments. Keep IP66 interfaces clean and reseal seals during inspections, replace gaskets if distorted, and verify that mounting hardware remains torqued to specification. Document replacements to track lifecycle and support ROI.
