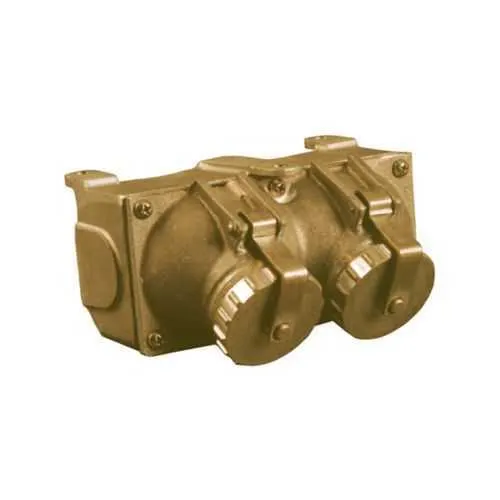

Eaton Crouse-Hinds 2632B-125RS Receptacle - IP66
Part Number: 2632B-125RS
Quick Summary
2632B-125RS Receptacle is a rugged surface-mount connector delivering 20A at 125V for Pauluhn marine equipment. Engineers often struggle with corrosion, water ingress, and downtime in harsh environments, and existing fittings frequently fail to seal reliably. This unit carries IP66 protection and a brass, three-wire, two-pole configuration designed for ordinary/non-hazardous locations, aligning with Pauluhn marine pin-and-sleeve standards. With straightforward mounting and durable construction, it supports maintenance-friendly installations while delivering long-term reliability in fielded systems and control panels.
Product Information
Extended Description
2632B-125RS Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 263/264 receptacle, 20A, Three-wire, two-pole, Brass, Surface, Reverse service, One receptacle, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 263/264 receptacle
Catalog Number
2632B-125RS
Product Length/Depth
3.69 in
Product Height
2.94 in
Product Width
4.25 in
Product Weight
3.2 lb
UPC
662276380318
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Mounting method
Surface
Type
One receptacle
Amperage Rating
20A
Voltage rating
125 Vac
Special features
Reverse service
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1506 - 263 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 2632B-125RS
IP66 ingress protection paired with brass construction provides dependable sealing and corrosion resistance, reducing maintenance cycles and typical field failures in outdoor or wash-down environments. Business impact: lower downtime, fewer part replacements, and greater system availability when used in marine or harsh-industrial installations. Application: ideal for surface-mounted panels on ships, dockyards, and outdoor control enclosures where dust and water exposure are common. The 20A, 125V rating supports standard power loads in process equipment, enabling reliable operation without oversizing components. This three-wire, two-pole configuration improves safety by ensuring proper grounding and fault paths in control circuits, while the reverse service feature adds installation flexibility for tight or unconventional orientations. In service, it simplifies retrofits by matching Pauluhn’s pin-and-sleeve ecosystem, supporting quick upgrades and standardized maintenance across fleets and plants.
Get a Quick Quote for a Eaton Crouse-Hinds 2632B-125RS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2632B-125RS?
Enquire Now
FAQs
When installing the 2632B-125RS on a shipboard panel, use a clean, flat mounting surface and seal all penetrations to maintain IP66 integrity. Ensure proper orientation to support surface mounting and access for maintenance. Use compatible Pauluhn marine connectors and verify the three-wire, two-pole configuration for correct grounding and fault paths.
The receptacle is rated for 20A at 125V AC, configured as three-wire, two-pole. It uses brass contacts and is designed for surface mounting with reverse service capability. The unit carries IP66 ingress protection, suitable for ordinary/non-hazardous locations, and supports standard control panel loads common in industrial equipment.
Yes. The 2632B-125RS is part of the Pauluhn 263/264 family and is designed for Pauluhn marine pin-and-sleeve compatibility. This ensures straightforward retrofits and service on existing Pauluhn-equipped fleets, reducing field wiring changes and enabling quick, reliable connections in harsh marine environments.
Key compliance points include IP66 ingress protection, which guards against dust and powerful water jets, and area classification for Ordinary/Non-Hazardous Locations. These specifications support use in standard industrial and marine environments, ensuring appropriate sealing, durability, and safe operation within typical facility or vessel electrical systems.
The brass construction and IP66 sealing deliver long service life with reduced corrosion-related failures, lowering maintenance costs and downtime. Standard Pauluhn compatibility simplifies replacements and retrofits, enabling quicker spares procurement and field servicing, which translates to faster repair cycles and improved fleet or plant uptime.
