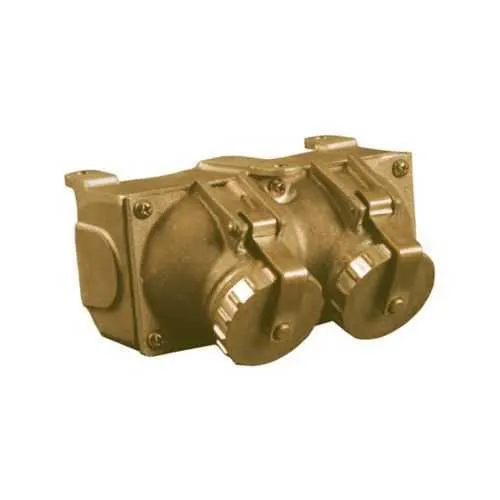

Eaton 2632B-250 Receptacle - IP66
Part Number: 2632B-250
Quick Summary
Eaton 2632B-250 Receptacle is a rugged, surface-mount Pauluhn 263/264 receptacle engineered for harsh industrial environments. Users often grapple with washdown, moisture ingress, and downtime in exposed locations, making reliable power connections critical. This unit delivers IP66 ingress protection and Ordinary/Non-Hazardous Location suitability, aligned with marine, outdoor, and industrial automation panels. With brass construction and a 20A, 250V AC rating, it combines durability with dependable electrical performance. Its surface-mount configuration simplifies retrofits and panel wiring, while compatibility with the Pauluhn pin-and-sleeve family supports streamlined installation in existing systems and new builds alike.
Product Information
Extended Description
2632B-250 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 263/264 receptacle, 20A, Three-wire, two-pole, Brass, Surface, One receptacle, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 263/264 receptacle
Catalog Number
2632B-250
Product Length/Depth
3.69 in
Product Height
2.94 in
Product Width
4.25 in
Product Weight
3.2 lb
UPC
662276380332
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Mounting method
Surface
Type
One receptacle
Amperage Rating
20A
Voltage rating
250 V AC
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1506 - 263 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 2632B-250
Feature: Brass construction provides superior corrosion resistance in washdown environments. Benefit: Extends service life and reduces maintenance costs in outdoor and marine applications. Application: Pauluhn 263/264 receptacle installations on outdoor machinery and control panels. Feature: IP66 ingress protection seals against dust and powerful water jets. Benefit: Enhances reliability in harsh environments, lowering unexpected downtime. Application: Industrial environments with frequent washdowns and outdoor exposure. Feature: 20A amperage rating at 250V AC. Benefit: Supports common industrial loads without the need for parallel circuits, improving panel density. Application: Automation panels and equipment powering motors, pumps, and actuators at 250 VAC. Feature: Three-wire, two-pole configuration. Benefit: Enables safe grounding and straightforward wiring, reducing installation errors. Application: Standard Pauluhn marine and industrial connectors. Feature: Surface mounting method. Benefit: Easier retrofit and neater, space-saving panel layouts. Application: Control enclosures and machine housings where rear access is limited. Feature: Brass material offers robust electrical performance and durability. Benefit: Improves long-term conductivity and reduces loosening due to vibration. Application: Harsh industrial environments requiring reliable power connections. Insight: The Pauluhn 263/264 family is a proven, field-friendly solution for rugged power distribution in challenging settings.
Get a Quick Quote for a Eaton Crouse-Hinds 2632B-250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2632B-250?
Enquire Now
FAQs
The 2632B-250 is designed for surface mounting in control panels or enclosures and uses a three-wire, two-pole connection. Its Pauluhn family compatibility ensures straightforward retrofits where 263/264 receptacles are already used. When installing, align mounting holes with the enclosure, seal ingress points to preserve IP66, and verify 250 VAC, 20A wiring ratings to ensure compliant, safe operation.
This receptacle excels in marine, outdoor, and washdown environments where IP66 protection is required. It supports ordinary/non-hazardous locations and is ideal for Pauluhn pin-and-sleeve connections in automation panels, pumps, and external equipment that demand reliable 250 VAC power with robust durability.
Key specs include a 20A amperage rating, 250V AC voltage rating, brass construction, and a surface-mount configuration for easy installation. The three-wire, two-pole design provides proper grounding and safety, while the IP66 rating protects against dust and water ingress in demanding environments.
The 2632B-250 carries IP66 ingress protection and is classified for Ordinary/Non-Hazardous Locations. This combination supports reliable operation in washdown and outdoor industrial settings, aligning with Pauluhn Pin and Sleeve system standards commonly used in marine and rugged industrial applications.
Durable brass construction and IP66 sealing reduce corrosion-related downtime and maintenance costs. The robust build lowers replacement frequency in harsh environments, delivering a favorable total cost of ownership over the receptacle’s service life when used in constant washdown or outdoor installations.
