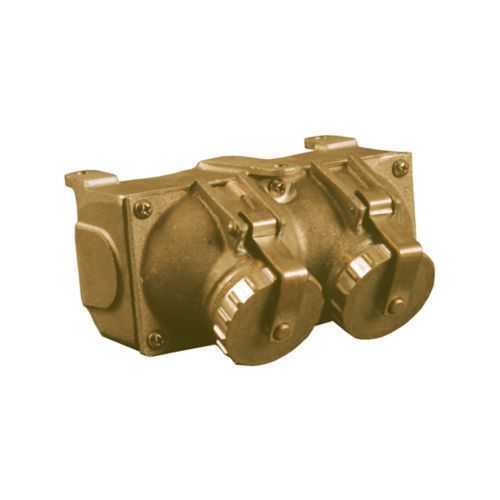

Eaton Crouse-Hinds 2633A-250 Receptacle - IP66
Part Number: 2633A-250
Quick Summary
2633A-250 receptacle provides four-wire, three-pole electrical connections for rugged Pauluhn installations in industrial and marine environments. Engineers often struggle to find outlets that deliver dependable IP66 protection while remaining easy to install on a surface. This unit combines IP66 ingress protection, an aluminum housing, and a Pauluhn marine pin-and-sleeve design to tackle corrosion and moisture exposure in ordinary locations. Designed to streamline panel wiring and reduce maintenance, it supports reliable, code-compliant power distribution in harsh settings while fitting into compact control panels and outdoor equipment.
Product Information
Extended Description
2633A-250 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 263/264 receptacle, 20A, Four-wire, three-pole, Aluminum, Surface, One receptacle, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 263/264 receptacle
Catalog Number
2633A-250
Product Length/Depth
3.69 in
Product Height
2.94 in
Product Width
4.25 in
Product Weight
1.2 lb
UPC
662276380431
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Aluminum
Configuration
Four-wire, three-pole
Mounting method
Surface
Type
One receptacle
Amperage Rating
20A
Voltage rating
250 V AC
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1506 - 263 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 2633A-250
Feature: IP66 ingress protection and aluminum housing deliver robust durability in rugged environments. Business Impact: Protects critical connections from dust, water, and corrosion, reducing downtime and maintenance costs. Application: Marine, outdoor, and industrial installations where exposure to moisture is common. Feature: Four-wire, three-pole configuration enables safe grounding and fault protection. Business Impact: Enhances electrical safety and simplifies wiring schemes for code compliance. Application: Control panels, machinery hookups, and distributed power outlets. Feature: Surface mounting enables quick, secure installation with fewer mounting steps. Business Impact: Cuts installation time and labor costs while improving enclosure aesthetics. Application: Wall-mounted panels and equipment enclosures in factories or ships. Feature: 20A, 250V AC rating supports standard industrial circuits. Business Impact: Minimizes adapters and future rework, improving energy efficiency and reliability. Application: General-purpose receptacle theatre for power tools and automation devices. Feature: Compact dimensions and light weight facilitate integration into tight spaces. Business Impact: Increases design flexibility and reduces enclosure footprint. Application: Compact control boxes and instrument panels. Feature: Pauluhn marine pin-and-sleeve compatibility ensures reliable mating with Pauluhn plugs. Business Impact: Simplifies procurement and maintenance in marine and offshore environments. Application: Pauluhn-based wiring systems and shipboard electrical installations.
Get a Quick Quote for a Eaton Crouse-Hinds 2633A-250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2633A-250?
Enquire Now
FAQs
To install the 2633A-250, mount the aluminum receptacle on a clean surface using standard hardware, align four-wire conductors for the four-wire, three-pole configuration, and secure with proper torque on the terminal screws. Ensure the IP66 seal is intact after mount and connect ground, neutral, and hot lines per your wiring diagram. Use compatible Pauluhn connectors where required for marine applications.
Its IP66 ingress protection, aluminum housing, and four-wire, three-pole design make it highly suited for harsh, moisture-prone environments found in marine and industrial settings. The surface-mount configuration supports quick, robust installation on outdoor panels, while the Pauluhn-design compatibility ensures reliable mating with marine plugs and plugs-and-sleeves in rugged duty cycles.
The 2633A-250 is rated for 20A at 250V AC, configured as a four-wire, three-pole receptacle with surface mounting. It features an aluminum housing, IP66 protection, and a compact footprint (3.69 in L x 2.94 in H x 4.25 in W), making it suitable for panel-mounted power connections in ordinary/non-hazardous locations.
This receptacle carries IP66 ingress protection and is classified for Ordinary/Non-Hazardous Locations. It uses a four-wire, three-pole configuration for safe grounding and fault protection. While CE/SIL certifications aren’t listed in the data, its IP66 rating and Pauluhn marine design align with common industrial and marine electrical practices.
The 2633A-250 offers durable aluminum construction and IP66 protection, reducing corrosion-related failures and maintenance frequency. Quick surface installation shortens project timelines, while robust mating with Pauluhn connectors lowers replacement and spares inventory. Overall, you can expect longer service life in demanding environments and lower lifecycle costs for panel wiring.
