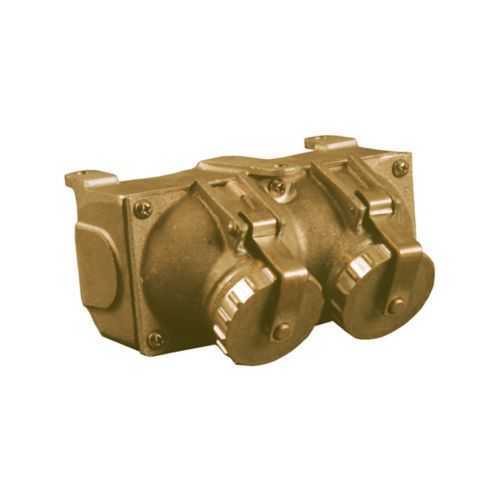

Eaton Crouse-Hinds 2634B-125 Receptacle - IP66
Part Number: 2634B-125
Quick Summary
The 2634B-125 receptacle provides reliable 20A, 125V power connections for surface-mounted industrial enclosures. In many facilities, installers struggle with moisture intrusion, dust ingress, and field wiring variances that jeopardize uptime. This unit features IP66 ingress protection and Ordinary/Non-Hazardous Location classification, supporting robust performance in harsh environments. By pairing brass construction with a straightforward surface-mount footprint, it simplifies installation, reduces maintenance cycles, and improves panel reliability. The 2634B-125 also aligns with Pauluhn marine pin and sleeve systems, offering a compatible, scalable solution for both new builds and retrofit projects. This combination of rugged hardware and practical design delivers measurable business value through safer installations and lower lifecycle costs.
Product Information
Extended Description
2634B-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 263/264 receptacle, 20A, Three-wire, two-pole, Brass, Surface, Two receptacles, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 263/264 receptacle
Catalog Number
2634B-125
Product Length/Depth
3.69 in
Product Height
2.94 in
Product Width
4.25 in
Product Weight
4.9 lb
UPC
662276380578
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Mounting method
Surface
Type
Two receptacles
Amperage Rating
20A
Voltage rating
125 Vac
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1506 - 263 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 2634B-125
Feature: Brass construction provides durable corrosion resistance in marine and industrial settings. Benefit: Extends service life and lowers replacement costs, even in humid or salty environments. Application: Suitable for Pauluhn 2634B-125 installations in outdoor enclosures. Feature: IP66 ingress protection safeguards against dust and powerful water jets. Benefit: Reduces unplanned downtime and maintenance, improving uptime metrics. Application: Ideal for surface-mounted power receptacles on exposed equipment in wet or dusty plants. Feature: 20A, 125V, three-wire, two-pole configuration. Benefit: Seamless compatibility with standard industrial circuits, enabling quick, error-free wiring and predictable performance. Application: Power distribution inside control panels and machinery enclosures. Feature: Surface mounting design. Benefit: Faster installation with minimal chassis modification, lowering labor costs and project lead times. Application: Field retrofits and new builds where rapid deployment is critical. Feature: Two receptacles in a single housing. Benefit: Enables efficient multi-point connections and reduces wiring complexity for compact panel layouts. Application: Marine and industrial power distribution where space is at a premium. Feature: Ordinary/Non-Hazardous Location classification. Benefit: Clear compliance for typical facilities, aiding procurement and installation planning. Application: Indoor electrical rooms and non-hazard environments that require reliable 125V service.
Get a Quick Quote for a Eaton Crouse-Hinds 2634B-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2634B-125?
Enquire Now
FAQs
The 2634B-125 is designed as a Pauluhn-style receptacle, featuring a three-wire, two-pole configuration that aligns with common marine pin and sleeve connectors. Its brass body and surface-mount footprint support secure, vibration-resistant connections, enabling reliable mating with standard Pauluhn marine plugs and plugs in rugged environments.
The receptacle is rated for 20A at 125V and uses a three-wire, two-pole configuration. It is brass-built, surface-mounted, and provides two receptacles in a single housing, supporting straightforward wiring and distribution within control panels and enclosures.
Yes. It carries an IP66 ingress protection rating and is classified for Ordinary/Non-Hazardous Locations, making it appropriate for typical indoor or sheltered outdoor facilities where dust and water exposure are concerns, without requiring special explosion-proof or hazardous-area enclosures.
To maximize IP66 performance, install using the surface-mount method with proper gasketing and secure mounting to a clean, flat surface. Ensure continuity with the enclosure and use compatible Pauluhn connectors to prevent ingress paths. Regular inspection for gasket integrity and tightness of mounting screws is advised.
By combining IP66 protection with durable brass hardware and a straightforward installation, the 2634B-125 reduces unplanned downtime, lowers maintenance frequency, and extends service life in challenging settings. These factors translate to lower total cost of ownership and improved uptime for critical power distribution in panels and enclosures.
