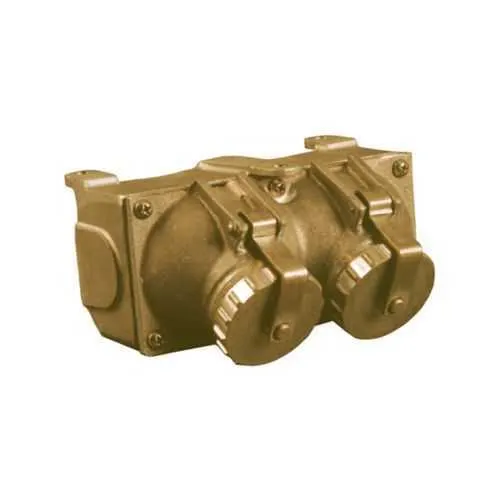

Eaton 2634B-125-1RS Receptacle - Reverse service
Part Number: 2634B-125-1RS
Quick Summary
The Eaton 2634B-125-1RS receptacle provides rugged 125 VAC, 20 A power for industrial and marine applications. Users often struggle with mounting constraints and the need for reliable, compact receptacles that fit limited spaces; this model offers surface mounting and a two-receptacle configuration to simplify retrofits. Area classification notes include Ordinary/Non-Hazardous Locations, aligning with standard industrial environments and minimizing compliance hurdles. Brass construction and the Pauluhn design deliver durability in demanding conditions, while the 20 A, 125 VAC rating supports common motor starters, pumps, and control gear. With reverse service and a surface-mount footprint, it combines flexibility with dependable performance for ongoing system uptime.
Product Information
Extended Description
2634B-125-1RS Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 263/264 receptacle, 20A, Three-wire, two-pole, Brass, Surface, Reverse service, Two receptacles, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 263/264 receptacle
Catalog Number
2634B-125-1RS
Product Length/Depth
3.69 in
Product Height
2.94 in
Product Width
4.25 in
Product Weight
5.9 lb
UPC
662276380585
Area classification
Ordinary/Non-Hazardous Locations
Material
Brass
Configuration
Three-wire, two-pole
Mounting method
Surface
Type
Two receptacles
Amperage Rating
20A
Voltage rating
125 Vac
Special features
Reverse service
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1506 - 263 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 2634B-125-1RS
Feature → Business Impact → Application: 20A, 125 VAC rating provides compatible power for standard industrial equipment, reducing overdesign and improving energy efficiency at the point of use. This translates to lower wiring costs and safer, more predictable startup for conveyors, pumps, and control panels in harsh environments; Application: industrial automation panels and shipboard installations. Feature → Brass construction offers excellent durability and corrosion resistance, extending service life in humid or marine settings and lowering maintenance frequency; Application: outdoor-rated enclosures and marine control rooms. Feature → Surface mounting simplifies installation by avoiding deep-box wiring, reducing install time and labor costs; Application: retrofit projects and compact panels where space is at a premium. Feature → Three-wire, two-pole configuration enhances safety and control conformance, ensuring correct grounding and reliable fault performance; Application: modular power distribution in panel assemblies. Feature → Two receptacles in a single body provides efficient load distribution and minimizes enclosure footprint; Application: machine tool electrical bays and remote power hubs. Feature → Ordinary/Non-Hazardous Locations classification supports safe use in standard industrial environments, improving procurement confidence and compliance readiness; Application: general-purpose factory floors and non-hazardous locations. Together these attributes offer measurable outcomes: faster install, reduced downtime, longer service life, and streamlined maintenance planning, with compatibility to Pauluhn 2634/264 series expectations.
Get a Quick Quote for a Eaton Crouse-Hinds 2634B-125-1RS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2634B-125-1RS?
Enquire Now
FAQs
The 2634B-125-1RS uses a surface-mount method and a three-wire, two-pole configuration. It delivers 20 A at 125 VAC through two receptacles, facilitating straightforward wiring with standard conduit or surface-mixed wiring practices. Proper grounding and secure mounting are essential, and the brass construction supports robust mechanical stability in both fixed and mobile installations. Ensure compliance with your facility’s non-hazardous location requirements and follow Eaton installation sheets for correct wiring sequence and torque specifications.
Yes, this Pauluhn receptacle is designed for rugged industrial applications, including marine settings that require reliable power distribution. It features brute-force brass components and a surface-mount footprint suitable for restricted spaces. For these environments, verify area classification as Ordinary/Non-Hazardous Locations and consult the Pauluhn catalog references to ensure compatibility with existing 2634/264 series systems and installation guidelines.
Installation favors a surface-mount approach with simple wiring to two receptacles, reducing enclosure depth requirements. The device weighs about 5.9 lb and measures 3.69 in length, 2.94 in height, and 4.25 in width, providing a predictable footprint for panel layouts. For maintenance, brass components resist corrosion better than plated options in typical non-hazardous locations, supporting longer intervals between inspections. Always refer to the installation instructions (IF LBL 1506) for torque specs and safety procedures.
The available compliance data notes area classification as Ordinary/Non-Hazardous Locations, which guides use in standard industrial environments. While the dataset does not list SIL, CE, or IP ratings for this specific model, compliance with Pauluhn marine pin-and-sleeve design expectations and non-hazardous location classifications should be considered when selecting for controlled environments or off-shore applications. Always validate with your internal compliance team and the latest Eaton Pauluhn documentation.
The 2634B-125-1RS offers a compact, durable power outlet with surface-mount installation, minimizing installation time and labor costs. The brass construction provides corrosion resistance in non-hazardous locations, extending service life and reducing replacement frequency. With two receptacles in one unit and a robust 20A/125V rating, you can streamline panel design, improve uptime, and achieve predictable maintenance intervals, delivering a favorable total cost of ownership over the equipment lifecycle.
