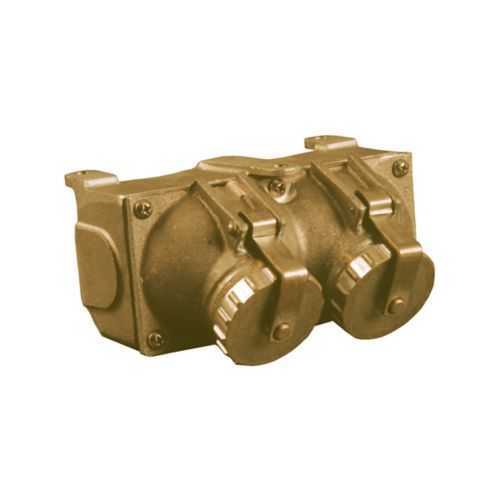

Eaton Crouse-Hinds 2635BF-250 Receptacle - IP66
Part Number: 2635BF-250
Quick Summary
2635BF-250 is an Eaton Crouse-Hinds Pauluhn four-wire, three-pole receptacle designed for 250 VAC service in demanding industrial environments. It provides a compact solution for two receptacles with a flush mounting method, minimizing panel depth and simplifying wiring runs. Engineers often struggle with moisture ingress, dust, and vibration that accelerate maintenance downtime and compromise connections. This model earns reliability from brass construction, a robust IP66 enclosure, and suitability for Ordinary/Non-Hazardous locations, aligning with common facility codes. By reducing installation complexity and improving long-term durability, the 2635BF-250 supports safer, more efficient power distribution in control panels and equipment rooms.
Product Information
Extended Description
2635BF-250 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 263/264 receptacle, 20A, Four-wire, three-pole, Brass, Flush, Two receptacles, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 263/264 receptacle
Catalog Number
2635BF-250
Product Length/Depth
7.25 in
Product Height
4.06 in
Product Width
4.5 in
Product Weight
7 lb
UPC
662276380875
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Four-wire, three-pole
Mounting method
Flush
Type
Two receptacles
Amperage Rating
20A
Voltage rating
250 V AC
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1506 - 263 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 2635BF-250
Feature: Four-wire, three-pole configuration enables full functionality for balanced power distribution. Business Impact: Simplifies wiring schemes and enhances fault isolation, reducing commissioning time and service costs. Application: Control panels and industrial equipment housings that require multiple conductors in a single unit. Feature: 250 VAC, 20 A rating provides robust, industry-standard power delivery. Business Impact: Ensures compatibility with common motors and load centers while supporting upgrade paths. Application: Industrial automation equipment and line-side power connections. Feature: Brass construction offers superior durability and corrosion resistance. Business Impact: Extends service life in harsh environments, lowering replacement frequency. Application: Marine-adjacent facilities and washdown-ready plant floors. Feature: IP66 ingress protection ensures dust-tight and high-pressure water jet resistance. Business Impact: Reduces maintenance downtime and protects terminations, improving uptime. Application: Environments with washdowns or heavy dust exposure. Feature: Flush mounting minimizes panel protrusion for a sleek, space-saving installation. Business Impact: Enables denser control panels and easier enclosure sealing. Application: Compact panel builds and equipment cabinets. Feature: Two receptacles in one unit streamline wiring and reduce device count. Business Impact: Lowers inventory, simplifies troubleshooting, and reduces installation labor. Application: Power distribution hubs in process lines and machine enclosures. Feature: Ordinary/Non-Hazardous location suitability aligns with common facility classifications. Business Impact: Facilitates compliant installations without specialized enclosure requirements. Application: General industrial facilities and non-hazardous work zones.
Get a Quick Quote for a Eaton Crouse-Hinds 2635BF-250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2635BF-250?
Enquire Now
FAQs
The 2635BF-250 uses flush mounting, minimizing panel intrusion and enabling a compact footprint. With overall dimensions around 7.25 inches long, 4.5 inches wide, and 4.06 inches high, it integrates neatly into standard control panels while maintaining adequate clearances for wiring and mating plugs.
The receptacle is rated for 20A at 250V AC, configured as four-wire, three-pole with two receptacles. This setup supports simultaneous feed and return paths for safe, balanced power delivery in industrial equipment and panel assemblies.
Yes, the 2635BF-250 provides IP66 ingress protection, delivering dust-tight and water-resistant performance. It is intended for Ordinary/Non-Hazardous locations, making it suitable for general industrial facilities, washdown zones, and equipment rooms where robust enclosure protection is required.
As part of the Pauluhn line, the 2635BF-250 ensures compatibility with Pauluhn marine pin and sleeve systems and standard Pauluhn accessories. This simplifies sourcing, reduces part divergence, and accelerates commissioning, while offering reliable, code-aligned power connections in harsh or demanding environments.
Using the 2635BF-250 consolidates multiple receptacles into a single, rugged unit, reducing device count and wiring complexity. Its IP66 protection and flush-mount design decrease maintenance downtime, extend service life in non-hazardous areas, and improve overall uptime and safety in industrial power distribution.
