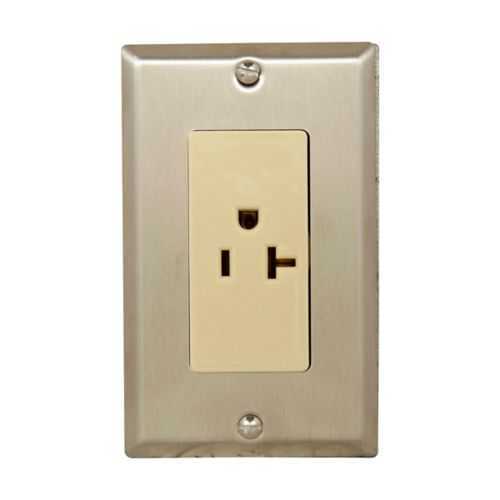

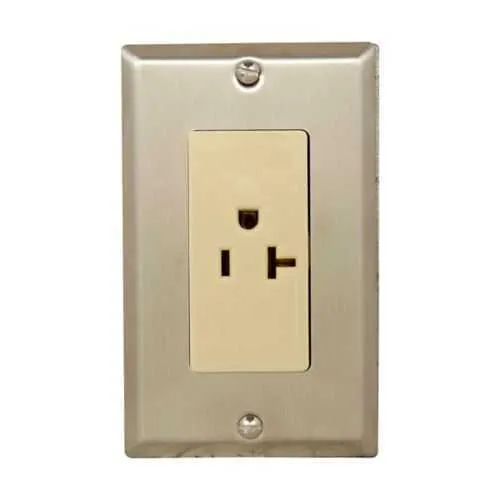

Eaton Crouse-Hinds 2704B-125 Receptacle - 125 Vac Surface
Part Number: 2704B-125
Quick Summary
2704B-125 is a rugged receptacle designed for surface-mounted power distribution in harsh industrial environments. Engineers often struggle with corrosion, maintenance downtime, and non-compliant wiring in tight spaces. This Pauluhn 27R receptacle is rated for Ordinary/Non-Hazardous Locations and supports ANSI/NEMA 5-15/20R configurations, helping meet safety and regulatory requirements. The brass construction and surface-mount design deliver durability and straightforward installation. For procurement and service teams, the combination of robust materials, standard interfaces, and 15A/20A at 125 Vac translates into lower lifecycle costs and fewer field failures. Use cases span control panels, marine interiors, and rugged enclosures where reliability matters.
Product Information
Extended Description
2704B-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 27R receptacle, 15A/20A, Brass, Surface, 5-15/20R, One rectangular face single receptacle, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 27R receptacle
Catalog Number
2704B-125
Product Length/Depth
2.75 in
Product Height
4.5 in
Product Width
1.75 in
Product Weight
2 lb
UPC
662276381308
Area classification
Ordinary/Non-Hazardous Locations
Material
Brass
Type
One rectangular face single receptacle
Amperage Rating
15A/20A
Voltage rating
125 Vac
NEMA configuration
5-15/20R
Mounting method
Surface
Pauluhn Marine Interior ANSI NEMA Receptacles catalog page
IF LBL 1557 - 27 and 27B Receptacles and Switches
Eaton Specification Sheet - 2704B-125
Feature: Brass construction provides excellent corrosion resistance and enduring mechanical strength. Business impact: This reduces maintenance cycles and component replacements in harsh environments. Application: Ideal for marine interiors, outdoor control panels, and other non-fire hazard areas where reliability is critical. Feature: 15A/20A at 125 Vac with a 5-15/20R configuration. Business impact: Supports standard load profiles and seamless compatibility with common cords and devices, minimizing wiring errors. Application: Power distribution in industrial machines, panel boards, and service enclosures. Feature: Surface mounting with a compact footprint (2.75 in L × 1.75 in W × 4.5 in H). Business impact: Speeds installation and reduces enclosure modification costs. Application: Retrofit projects and new builds where mounting space is limited. Feature: One rectangular face single receptacle design. Business impact: Simplifies wiring layouts and reduces risk of misconnection. Application: Control panels and instrument enclosures requiring a single-face receptacle. Feature: Ordinary/Non-Hazardous Locations area classification. Business impact: Clear compliance scope for typical plant environments, easing procurement and approvals. Application: General-purpose electrical installations in non-hazardous zones across marine, manufacturing, and facilities.
Get a Quick Quote for a Eaton Crouse-Hinds 2704B-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2704B-125?
Enquire Now
FAQs
The 2704B-125 uses a NEMA 5-15/20R configuration and 125 Vac rating, aligning with standard residential and light-industrial outlets. It fits Pauluhn 27R receptacle footprints and is designed for surface mounting, ensuring reliable plug-in connections in ordinary locations without requiring custom adapters.
This receptacle is designed for surface mounting with a footprint of 2.75 inches in length, 1.75 inches in width, and a height of 4.5 inches. Plan for a flat, accessible surface on a panel or enclosure and verify clearance for the receptacle face to avoid interference with nearby components.
Ideal for control panels, marine interior installations, and rugged enclosures where dependable 125 Vac power is required. Its brass construction and ordinary-location rating make it well-suited to environments with exposure to humidity and limited service access, while maintaining compatibility with standard Pauluhn accessories.
The model is specified for Ordinary/Non-Hazardous Locations and adheres to ANSI/NEMA 5-15/20R configurations. This supports typical industrial and commercial applications in non-hazardous zones, helping with compliance reviews and procurement standards.
Installation sheets and datasheets are available from Eaton, including IF LBL 1557 for 27 and 27B receptacles and the Eaton specification sheet for 2704B-125. These documents provide wiring diagrams, mounting guidance, and safety considerations to streamline commissioning and training.
