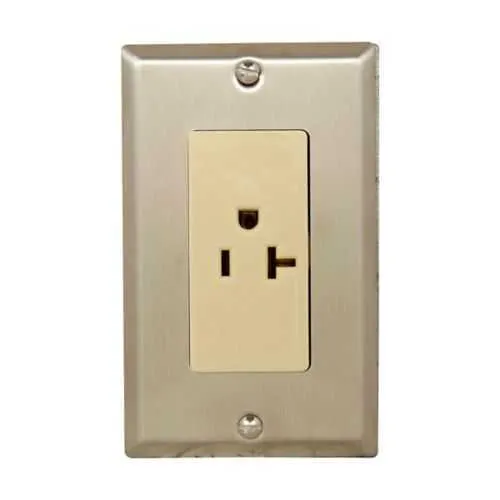

Eaton Crouse-Hinds 2705A-125 Receptacle - 5-15/20R (125 VAC)
Part Number: 2705A-125
Quick Summary
2705A-125 receptacle provides rugged, 125 Vac power connections for surface-mounted control panels. Engineers often struggle with corrosion resistance, wear, and mounting compatibility in harsh industrial environments. This model is designed for Ordinary/Non-Hazardous Locations and uses copper-free aluminum, delivering durable, maintenance-friendly performance. With a 15A/20A rating and a 5-15/20R NEMA configuration, it supports mixed loads while simplifying spare parts within the Pauluhn 27R family. Streamlined installation and reliable service translate to lower downtime and predictable procurement for automation projects.
Product Information
Extended Description
2705A-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 27R receptacle, 15A/20A, Copper-free aluminum, Surface, 5-15/20R, One rectangular face double receptacle, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 27R receptacle
Catalog Number
2705A-125
Product Length/Depth
2.75 in
Product Height
4.5 in
Product Width
1.75 in
Product Weight
0.9 lb
UPC
662276381353
Area classification
Ordinary/Non-Hazardous Locations
Material
Copper-free aluminum
Type
One rectangular face double receptacle
Amperage Rating
15A/20A
Voltage rating
125 Vac
NEMA configuration
5-15/20R
Mounting method
Surface
Pauluhn Marine Interior ANSI NEMA Receptacles catalog page
IF LBL 1557 - 27 and 27B Receptacles and Switches
Eaton Specification Sheet - 2705A-125
Feature: Amperage rating and voltage - 15A/20A at 125 VAC; Business Impact: Supports varied loads without over-sizing, enabling flexible power distribution; Application: Control panels and equipment housings needing dual-rated receptacles. In practice, this reduces inventory complexity and improves swap-out efficiency during panel upgrades. Feature: Copper-free aluminum body - Benefits: Enhanced corrosion resistance and lighter weight for extended service life; Application: Marine interiors and harsh industrial environments where metal degradation is a concern. Feature: Surface mounting - Benefit: Faster, cleaner installs with standard mounting patterns; Application: Wall-mounted enclosures and machine frames where depth is at a premium. Feature: One rectangular face double receptacle - Benefit: Saves panel space and simplifies wiring; Application: Power distribution for two circuits from a single module in compact panels. Feature: NEMA 5-15/20R compatibility - Benefit: Reduces stock diversity and ensures plug compatibility across equipment; Application: General-purpose loads in automation and process control. Feature: Area classification Ordinary/Non-Hazardous Locations - Benefit: Regulatory-aligned safety and straightforward installation; Application: Routine plant and warehouse electrical installations where non-hazardous environments prevail.
Get a Quick Quote for a Eaton Crouse-Hinds 2705A-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2705A-125?
Enquire Now
FAQs
The 2705A-125 is designed for surface mounting with standard mounting holes, a compact footprint, and a straightforward wiring path to two receptacles. Use appropriate enclosure knockouts, secure the device to the panel surface, and wire the 5-15/20R terminals per the installation instructions to ensure safe, reliable operation.
This model is rated for 15A/20A at 125 VAC and uses a NEMA 5-15/20R configuration. It is built with copper-free aluminum and optimized for ordinary-location environments, offering reliable performance for mixed loads in control panels and equipment enclosures.
Yes, the copper-free aluminum construction and Pauluhn 27R heritage provide robust performance suitable for non-hazardous marine interior environments, where corrosion resistance and durable mounting are important. Always verify the specific area classification for your installation to ensure compliance.
The product supports area classification for Ordinary/Non-Hazardous Locations and is listed in the Pauluhn 27R family catalog, with standard NEMA configuration and copper-free aluminum construction. For installation, refer to the Pauluhn Marine Interior ANSI NEMA Receptacles catalog page and the LBL1557 installation sheet for proper wiring and mounting guidelines.
Copper-free aluminum delivers enhanced corrosion resistance and reduced maintenance needs, lowering downtime and replacement costs. The standard 5-15/20R configuration and surface-mount design simplify stocking and field service, improving total cost of ownership in automation and panel-fit projects.
