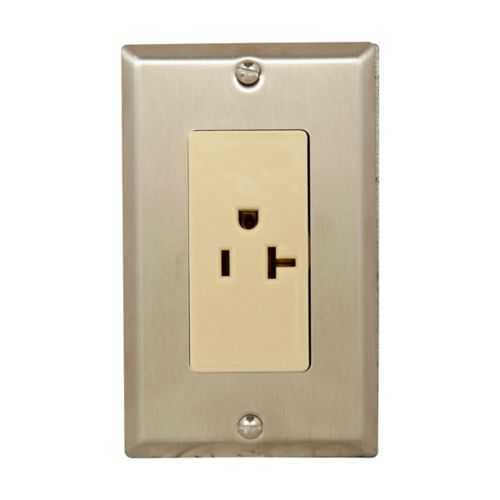

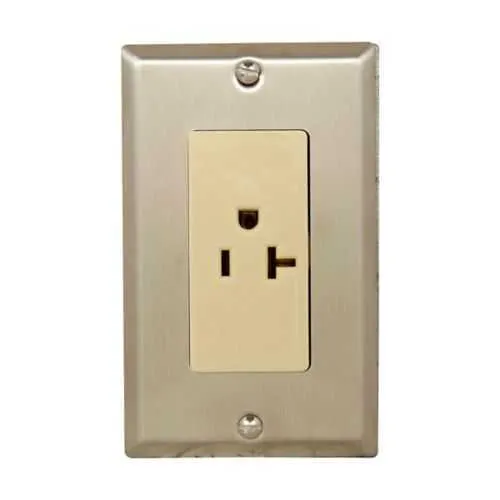

Eaton Crouse-Hinds 2753AF-250 Receptacle - 20A 250V
Part Number: 2753AF-250
Quick Summary
2753AF-250 is a rugged receptacle for industrial panels and harsh outdoor environments. Engineers often struggle with corrosion resistance, improper flush mounting, and field compatibility across rugged sites. This Pauluhn 27R unit carries area classification for Ordinary/Non-Hazardous Locations, uses copper-free aluminum, and supports a 250 V AC, 20 A rating—key for reliable, code-compliant installations. Its flush-mount design and compact footprint streamline assemblies, reducing wiring effort and service downtime while ensuring long-term durability in demanding applications. Designed for industrial environments, it pairs with Pauluhn's interior configurations and is compatible with standard wiring practices.
Product Information
Extended Description
2753AF-250 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 27R receptacle, 20A, Single, Copper-free aluminum, Flush mount unit, One round face single receptacle, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 27R receptacle
Catalog Number
2753AF-250
Product Length/Depth
2.75 in
Product Height
4.5 in
Product Width
1.75 in
Product Weight
0.9 lb
UPC
662276382183
Area classification
Ordinary/Non-Hazardous Locations
Material
Copper-free aluminum
Type
One round face single receptacle
Amperage Rating
20A
Voltage rating
250 V AC
Cover type
Single
Special features
Flush mount unit
Pauluhn Marine Interior ANSI NEMA Receptacles catalog page
IF LBL 1557 - 27 and 27B Receptacles and Switches
Eaton Specification Sheet - 2753AF-250
Copper-free aluminum body delivers corrosion resistance and weight savings, reducing total cost of ownership and making installations easier in marine and outdoor environments. The 20A, 250V AC rating ensures compatibility with common industrial power systems, supporting code-compliant equipment startup and reduced electrical nuisance. Flush-mount unit with a single round face provides a neat panel appearance, reduces dust ingress, and simplifies sealing in tight enclosures. Compact dimensions (2.75 in depth, 4.5 in height, 1.75 in width) and light weight (0.9 lb) enable fast retrofits and lower handling risk during installation. Compatibility with Pauluhn 27R receptacle family supports standardized procurement and modular upgrades across facilities. Availability of installation sheets and datasheets aids rapid compliance checks and reduces field errors.
Get a Quick Quote for a Eaton Crouse-Hinds 2753AF-250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2753AF-250?
Enquire Now
FAQs
Install the 2753AF-250 as a flush-mount, single-face Pauluhn 27R receptacle rated for 20A at 250V AC. Follow Eaton’s IF LBL 1557 installation sheet for correct mounting procedures, and place it in ordinary/non-hazardous locations. Its copper-free aluminum housing reduces corrosion risk, and the 0.9 lb weight simplifies retrofits in crowded panels.
The 2753AF-250 is a 20A, 250V AC receptacle with a copper-free aluminum body and a single round face. It is designed for flush-mount installation and supports ordinary/non-hazardous locations. With a 2.75 in depth, 4.5 in height, and 1.75 in width, it fits compact panels while maintaining reliable, field-proven performance in challenging conditions.
Yes, the 2753AF-250 is rated for ordinary/non-hazardous locations, making it ideal for most factory floors, control panels, and outdoor enclosures that do not meet hazardous area classifications. Its copper-free aluminum construction adds corrosion resistance in damp or marine-adjacent spaces, while the 250V AC/20A rating supports common industrial power systems, safely.
Dimensions include 2.75 in depth, 4.5 in height, and 1.75 in width, with a weight of approximately 0.9 lb. This compact form supports easy replacement and retrofit into crowded panels and enclosures. The single round-face receptacle aligns with Pauluhn 27R styling for consistent, modular installations. Overall, dimensions and weight contribute to faster swaps and reduced installation complexity.
Datasheets and installation instructions are available from Eaton's Pauluhn resources: the Pauluhn Marine Interior ANSI NEMA Receptacles catalog page, the IF LBL 1557 installation sheet, and the Eaton Specification Sheet for 2753AF-250. Access to these documents supports compliant installations, proper sizing, and quick reference during maintenance in the field and at the point of use.
