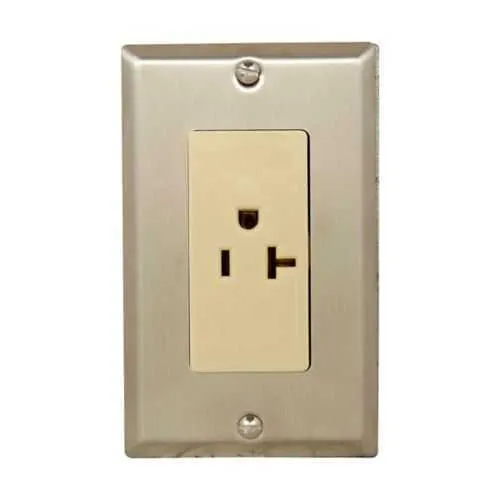

Eaton 2753B-250 Pauluhn 27R Receptacle - 20A 250V Ordinary Locations
Part Number: 2753B-250
Quick Summary
The Eaton Crouse-Hinds Pauluhn 27R receptacle delivers 20A, 250V power for industrial enclosures. Engineers often struggle with compatibility and corrosion in harsh environments, leading to downtime. Although explicit SIL, CE, or IP ratings are not listed, this receptacle follows Ordinary/Non-Hazardous area classifications and ANSI/NEMA marine interior standards. This alignment supports reliable panel installations and simplified procurement, reducing spare-part variance across sites. In practice, using the 2753B-250 improves maintenance planning and lifecycle costs by ensuring consistent form, fit, and electrical performance in control cabinets and process enclosures. The brass construction and single-face design enable robust mounting in compact spaces where space is at a premium.
Product Information
Extended Description
2753B-250 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 27R receptacle, 20A, Single, Brass, One round face single receptacle, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 27R receptacle
Catalog Number
2753B-250
Product Length/Depth
2.75 in
Product Height
4.5 in
Product Width
1.75 in
Product Weight
2.1 lb
UPC
662276382206
Area classification
Ordinary/Non-Hazardous Locations
Material
Brass
Type
One round face single receptacle
Amperage Rating
20A
Voltage rating
250 V AC
Cover type
Single
Pauluhn Marine Interior ANSI NEMA Receptacles catalog page
IF LBL 1557 - 27 and 27B Receptacles and Switches
Eaton Specification Sheet - 2753B-250
Feature → Business Impact → Application: The 2753B-250 features a 20A, 250V electrical rating, delivering dependable power to industrial enclosures and control panels, reducing the risk of electrical overload and unexpected downtime in harsh environments. Application: Suitable for standard industrial panels and process enclosures where robust performance is required. Feature → Business Impact → Application: Brass construction provides corrosion resistance and longevity in challenging environments, extending replacement intervals and lowering maintenance costs in marine interior and non-hazardous locations. Application: Ideal for Pauluhn 27R configurations in ships, offshore equipment, and non-hazardous facilities. Feature → Business Impact → Application: One round face single receptacle with a compact footprint simplifies panel layout and wiring, accelerating installation and reducing enclosure depth. Application: Useful in space-constrained control cabinets and automation bays. Feature → Business Impact → Application: Catalog number 2753B-250 ensures standardized procurement, traceability, and consistent stocking across facility networks. Application: Streamlines purchasing for multi-site projects. Feature → Business Impact → Application: Compliance with ordinary/non-hazardous area classifications and ANSI/NEMA standards minimizes risk during inspections and improves regulatory alignment. Application: Supports regulated manufacturing environments and marine interior installations. Feature → Business Impact → Application: Installation documentation and available data sheets expedite commissioning and reduce on-site questions, improving project timelines. Application: Beneficial for maintenance teams and project engineers seeking fast, error-free installs.
Get a Quick Quote for a Eaton Crouse-Hinds 2753B-250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2753B-250?
Enquire Now
FAQs
Installers should reference the LBL 1557 instruction sheet and the Pauluhn 27R installation guidelines. Ensure the enclosure is suitable for ordinary/non-hazardous locations, mount the single-face receptacle in a compatible round face opening, and connect conductors per the 20A/250V rating. Use proper torque on mounting screws and verify insulation and sealing per the installation sheet to minimize downtime.
The 2753B-250 follows the Pauluhn 27R configuration and aligns with ANSI/NEMA receptacle standards for marine interior applications. This compatibility supports standardized fit, guaranteed interchangeability with other 27R components, and easier procurement across multi-site programs while meeting industry expectations for non-hazardous environments.
Best suited for industrial control panels, process enclosures, and non-hazardous environments, including marine interior equipment. The 20A-250V rating handles typical automation loads, while the brass body provides durability in damp or washdown areas. Its compact round-face design also fits restricted panel spaces without compromising electrical performance.
Certifications focus on area classification: Ordinary/Non-Hazardous Locations. While no SIL, CE, or IP ratings are listed in the provided data, the unit adheres to ANSI/NEMA Pauluhn standards for marine interior receptacles, supporting compliance in non-hazardous industrial and marine applications.
Official documents include the Pauluhn Marine Interior ANSI NEMA Receptacles catalog page, IF LBL 1557 installation sheet for 27 and 27B receptacles, and the Eaton specification sheet for 2753B-250. These resources aid selection, installation guidance, and specification verification during procurement and commissioning.
