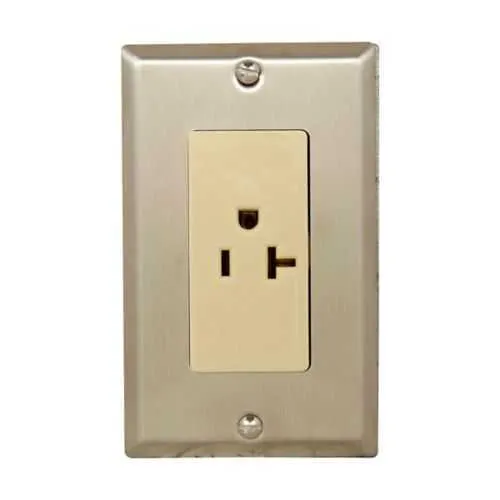

Eaton Crouse-Hinds 2754A-125 Pauluhn 27R Receptacle - Copper-free aluminum
Part Number: 2754A-125
Quick Summary
2754A-125 copper-free aluminum Pauluhn 27R receptacle delivers reliable 125V outlet connections for surface-mounted industrial enclosures. End users often confront space constraints, corrosion risk, and time-consuming installs in busy facilities. Certifications and compliance include Area classification Ordinary/Non-Hazardous Locations, with NEMA 5-15/20R compatibility, reflecting its suitability for standard factory environments. Built from copper-free aluminum and designed for surface mounting, it supports fast commissioning while aligning with common Wiring & Connectivity projects, and its Pauluhn heritage guides ongoing maintenance decisions.
Product Information
Extended Description
2754A-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 27R receptacle, 15A/20A, Copper-free aluminum, Surface, 5-15/20R, Two semi-oval face receptacles, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 27R receptacle
Catalog Number
2754A-125
Product Length/Depth
2.75 in
Product Height
4.5 in
Product Width
1.75 in
Product Weight
0.9 lb
UPC
662276498020
Area classification
Ordinary/Non-Hazardous Locations
Material
Copper-free aluminum
Type
Two semi-oval face receptacles
Amperage Rating
15A/20A
Voltage rating
125 Vac
NEMA configuration
5-15/20R
Mounting method
Surface
Pauluhn Marine Interior ANSI NEMA Receptacles catalog page
IF LBL 1557 - 27 and 27B Receptacles and Switches
Eaton Specification Sheet - 2754A-125
Copper-free aluminum construction provides inherent corrosion resistance and lighter weight, reducing handling effort during installation and lowering long-term maintenance costs. This translates to improved reliability in ordinary locations and a longer service life in demanding environments when used in Pauluhn 27R configurations for surface-mounted outlets. The 15A/20A, 125 Vac rating paired with a 5-15/20R NEMA configuration enables versatile, mixed-load applications in control panels and industrial enclosures, leading to fewer parts and streamlined procurement. A surface mounting method simplifies field installation on flat panels, delivering faster commissioning and consistent mounting depth across assemblies. The two semi-oval face receptacles offer a compact footprint that supports efficient wiring routing and easier inspection in crowded enclosures, enhancing overall panel quality and uptime. In addition, the Ordinary/Non-Hazardous Locations area classification aligns with standard factory floors, warehouses, and non-hazardous spaces, reducing compliance risk while maintaining robust performance. With clear cataloging as 2754A-125, this receptacle integrates with Pauluhn interior systems and benefits from Eaton’s installation documentation, accelerating commissioning and ongoing service.
Get a Quick Quote for a Eaton Crouse-Hinds 2754A-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2754A-125?
Enquire Now
FAQs
The 2754A-125 uses a surface mounting method designed for flat panels and enclosures. It features two semi-oval face receptacles aligned with the Pauluhn 27R family, enabling straightforward installation in standard control panels and equipment housings. With dimensions of 2.75 in depth, 4.5 in height, and 1.75 in width, it fits typical enclosure cutouts and streamlines wiring routing for reliable, repeatable setup.
Key specs include an amperage rating of 15A/20A and a voltage rating of 125 Vac, configured as NEMA 5-15/20R. Constructed from copper-free aluminum, the part is designed for surface mounting in ordinary locations. The receptacle supports standard office and industrial loads while preserving safety margins for mixed-use circuits in control panels and enclosures.
Yes. The 2754A-125 is a Pauluhn 27R receptacle designed for surface-mounted installations in ordinary/non-hazardous industrial locations. It supports standard 125 Vac outlets with 15A/20A capability and integrates with Pauluhn 27R configurations, making it a typical choice for factory floors, warehouses, and non-hazardous enclosures where reliability and compatibility with Pauluhn components are priorities.
The data specifies Area classification as Ordinary/Non-Hazardous Locations, indicating suitability for standard industrial spaces that do not require hazardous-area approvals. The 5-15/20R NEMA configuration and 125 Vac rating align with common electrical codes for general-purpose receptacles in non-hazardous environments. The UPC for traceability is 662276498020, aiding inventory and compliance documentation.
Copper-free aluminum reduces corrosion risks and weight, simplifying handling and installation while contributing to lower maintenance costs over the life of the receptacle. The lighter material and durability support faster commissioning, fewer replacements, and improved reliability in ordinary locations. The 2754A-125 benefits from Pauluhn design heritage and Eaton’s documented installation resources to accelerate onboarding and ongoing service.
