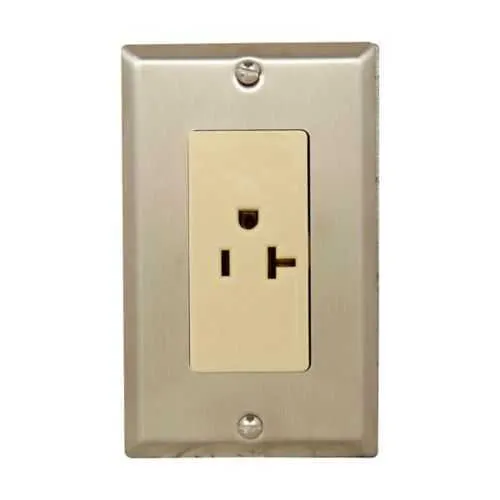

Eaton 2754A-125-C1 Receptacle - 27R Through Feed 125 Vac
Part Number: 2754A-125-C1
Quick Summary
The Eaton 2754A-125-C1 Receptacle is a rugged Pauluhn 27R duplex outlet designed for through-feed installations in industrial environments. Engineers and procurement teams often wrestle with corrosion, enclosure crowding, and wiring complexity; copper-free aluminum construction helps reduce weight while improving durability in harsh settings. This unit is rated for Ordinary/Non-Hazardous Locations and supports 125 Vac operation, with a duplex face and two semi-oval receptacles that simplify field wiring. By aligning with standard Pauluhn form factors, this receptacle delivers reliable performance, straightforward installation, and lifecycle cost benefits for equipment fleets and plant infrastructure.
Product Information
Extended Description
2754A-125-C1 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 27R receptacle, Duplex, Copper-free aluminum, Through feed, 1/2", Two semi-oval face receptacles, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 27R receptacle
Catalog Number
2754A-125-C1
Product Length/Depth
2.75 in
Product Height
4.5 in
Product Width
1.75 in
Product Weight
0.8 lb
UPC
662276611702
Area classification
Ordinary/Non-Hazardous Locations
Material
Copper-free aluminum
Type
Two semi-oval face receptacles
Voltage rating
125 Vac
Style
Through feed
Trade size
1/2"
Cover type
Duplex
Pauluhn Marine Interior ANSI NEMA Receptacles catalog page
IF LBL 1557 - 27 and 27B Receptacles and Switches
Eaton Specification Sheet - 2754A-125-C1
Copper-free aluminum construction reduces weight and improves corrosion resistance, delivering a higher payload capacity at the panel and easing handling during installation, which translates to measurable labor savings on large-scale projects. The through-feed design simplifies wiring routes in crowded enclosures, improving installation speed and reducing potential contact fatigue in field terminations. With two semi-oval face receptacles and a duplex cover, the unit provides compact, reliable power delivery in limited spaces, boosting circuit density without compromising accessibility for maintenance checks. The 1/2" trade size supports common conduit entries, while 125 Vac voltage rating ensures compatibility with standard control panels and industrial equipment. Its Ordinary/Non-Hazardous Locations classification aligns with typical non-explosive environments, enabling straightforward procurement and compliance planning. The lightweight 0.8 lb profile aids installation crews when mounting in stacked or vertical configurations, and the 2.75 in by 4.5 in by 1.75 in footprint fits a range of Pauluhn backboxes and interior panels. For installers, comprehensive guides in the downloads—catalog pages, installation sheets, and datasheets—provide practical step-by-step references to minimize downtime and ensure repeatable results.
Get a Quick Quote for a Eaton Crouse-Hinds 2754A-125-C1
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2754A-125-C1?
Enquire Now
FAQs
The 2754A-125-C1 supports through-feed wiring with a duplex face receptacle configuration, featuring two semi-oval face receptacles and a 1/2 inch trade size. Its copper-free aluminum body reduces weight while enabling straightforward field terminations in Pauluhn backboxes. This design streamlines routing in crowded enclosures and aligns with standard industrial wiring practices for non-hazardous locations.
Key specifications include a 125 Vac rating, copper-free aluminum construction, weight about 0.8 lb, and dimensions of 2.75 in length, 4.5 in height, and 1.75 in width. It is designed as a duplex through-feed receptacle with a 1/2 inch trade size, suitable for ordinary/non-hazardous locations and Pauluhn 27R applications, ensuring reliable power distribution in controlled environments.
This receptacle is intended for Ordinary/Non-Hazardous Locations, not for hazardous or explosive environments. It is suitable for standard industrial and marine interior settings where non-hazardous classifications apply. For restricted areas, consult the appropriate Pauluhn catalog and spec sheets to ensure compliance with site requirements and equipment standards.
Documentation includes the Pauluhn Marine Interior ANSI NEMA receptacles catalog page, installation instructions (IF LBL 1557), and the Eaton specification sheet for 2754A-125-C1. These resources support correct selection, wiring practices, and compliance verification. Area classification is Ordinary/Non-Hazardous Locations, guiding proper application and regulatory alignment.
Copper-free aluminum reduces corrosion risk and weight, improving field durability and ease of handling during installation and replacement. This can lower maintenance time and associated labor costs, extend service life in non-hazardous environments, and contribute to overall lifecycle cost reductions for large projects and fleets of Pauluhn receptacles.
