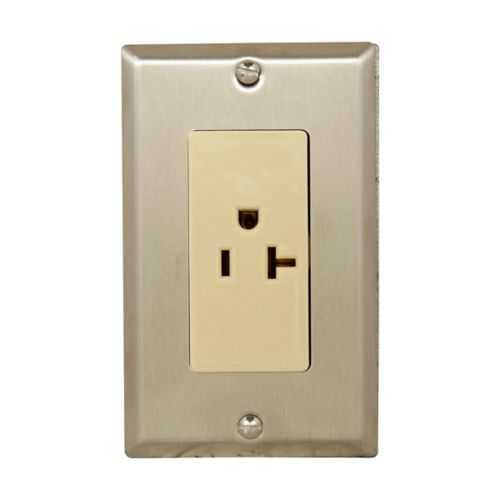

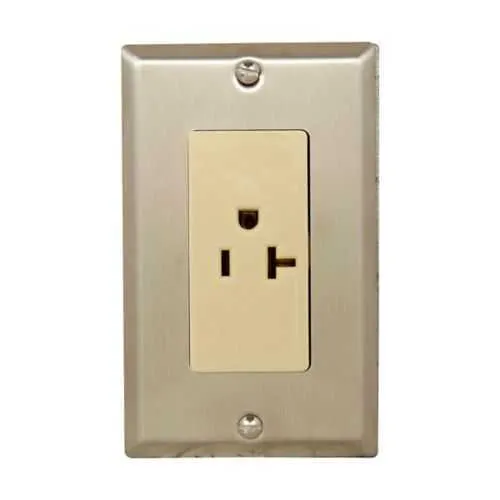

Eaton 2754AF-250 Receptacle - Duplex Aluminum
Part Number: 2754AF-250
Quick Summary
2754AF-250 receptacle is a rugged, flush-mount power outlet designed for Pauluhn 27R installations in industrial enclosures. This solution addresses common field challenges such as limited mounting depth, hard-to-fit face configurations, and corrosion risk by using a copper-free aluminum housing and a two semi-oval face. It carries ordinary/non-hazardous area classification, helping meet plant safety and compliance without overengineering for standard environments. With a 20A, 250V rating, compact footprint, and robust finish, it enables fast installation, reliable performance, and reduced maintenance in everyday production, utility spaces, and equipment rooms. The design offers dependable interchangeability within the Pauluhn 27R ecosystem and straightforward sourcing for maintenance teams and procurement.
Product Information
Extended Description
2754AF-250 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 27R receptacle, 20A, Duplex, Copper-free aluminum, Flush mount unit, Two semi-oval face receptacles, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 27R receptacle
Catalog Number
2754AF-250
Product Length/Depth
2.75 in
Product Height
4.5 in
Product Width
1.75 in
Product Weight
4.57 lb
UPC
662276382275
Area classification
Ordinary/Non-Hazardous Locations
Material
Copper-free aluminum
Type
Two semi-oval face receptacles
Amperage Rating
20A
Voltage rating
250 V AC
Cover type
Duplex
Special features
Flush mount unit
Pauluhn Marine Interior ANSI NEMA Receptacles catalog page
IF LBL 1557 - 27 and 27B Receptacles and Switches
Eaton Specification Sheet - 2754AF-250
Feature: Copper-free aluminum construction provides corrosion resistance with lighter weight. Impact: reduces handling effort and lifecycle costs, particularly in humid or coastal environments. Application: suited for Pauluhn 27R interior installations in industrial cabinets and equipment rooms. Feature: Flush-mount design saves panel space and reduces protrusion. Impact: speeds installation, improves enclosure aesthetics, and minimizes risk of snagging cables. Application: ideal for tight or shallow enclosures where mounting depth is limited. Feature: Two semi-oval face duplex receptacles. Impact: simplifies wiring, improves alignment, and enables consistent cord management. Application: standard in Pauluhn 27R series deployments for 20A circuits. Feature: 20A, 250V rating. Impact: supports common industrial loads with single-device reliability; reduces the need for multiple outlets. Application: feeds for motors, controls, and auxiliary equipment in control panels. Feature: Ordinary/Non-Hazardous Location area classification. Impact: ensures compliance for typical plant environments; avoids overspecification. Application: warehouses, manufacturing floors, and office-adjacent spaces where conditions are non-hazardous. Feature: Pauluhn 27R compatibility and flush-mount assembly. Impact: streamlined installation with established Pauluhn mounting philosophy; reduces installation time. Application: widely used in panel builders and service teams integrating Pauluhn style receptacles.
Get a Quick Quote for a Eaton Crouse-Hinds 2754AF-250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2754AF-250?
Enquire Now
FAQs
The 2754AF-250 is designed for flush-mount installation within Pauluhn 27R configurations. When mounting, verify enclosure depth and ensure the two semi-oval face receptacles align with the interior layout. Use appropriate hardware to secure the unit, maintain proper grounding, and confirm the flush-fit to minimize protrusion that could interfere with other components.
This receptacle is rated for 20A at 250V AC and features a duplex face for two work-ready outlets. It supports common industrial loads such as motors, controls, and auxiliary equipment in standard control panels, enabling reliable power delivery to multiple devices from a single mount.
Yes. The product explicitly lists area classification as Ordinary/Non-Hazardous Locations, making it appropriate for standard facilities like warehouses, manufacturing floors, and routine machine rooms where harsh or hazardous conditions are not present.
The data specifies ordinary/non-hazardous location classification as the compliance reference. Additional certifications such as CE or IP are not provided in the data set, so verify project-specific needs with the supplier if those standards are required for your application.
Copper-free aluminum reduces weight and improves corrosion resistance, contributing to lower handling effort during installation and longer service life in moist or humid environments. This translates to fewer replacement cycles and lower maintenance costs over the life of industrial enclosures and Pauluhn-based installations.
