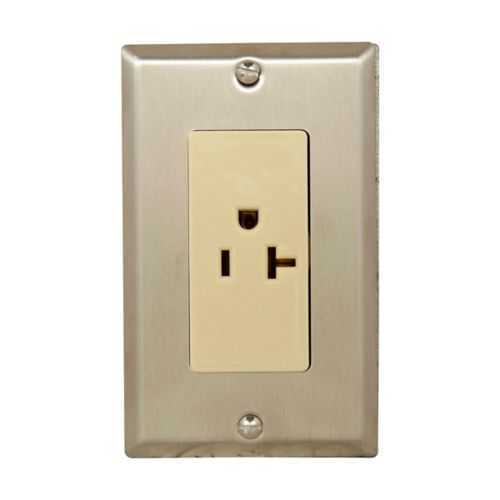

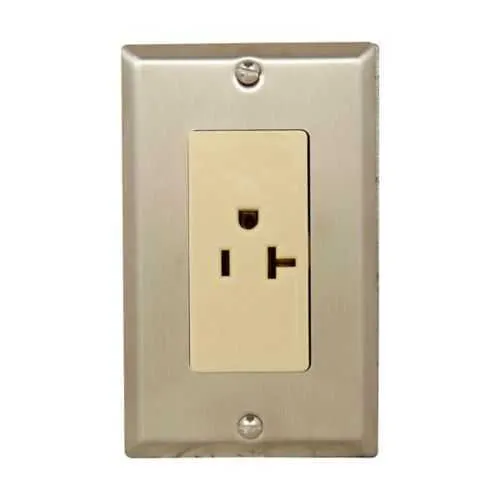

Eaton 2754BF-250 Receptacle - Brass, 20A/250V, Flush
Part Number: 2754BF-250
Quick Summary
The 2754BF-250 Receptacle provides 20A, 250V flush-mount duplex power for industrial control panels. Engineers often confront misfit terms, corrosion-prone components, and downtime from incompatible hardware; this unit mitigates those issues and delays. Area classification is Ordinary/Non-Hazardous Locations, making it suitable for most dry indoor environments in commercial and industrial facilities. Brass construction and a compact footprint support reliable conduction, corrosion resistance, and space-efficient panel layouts across compact switchgear and control panels. Engineers also gain quick access to Eaton's technical datasheet and installation sheets to validate compliance, streamline procurement, and accelerate field commissioning. Its duplex face and flush-mount design simplify installation and reduce field errors during maintenance and service.
Product Information
Extended Description
2754BF-250 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 27R receptacle, 20A, Duplex, Brass, Flush mount unit, Two semi-oval face receptacles, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 27R receptacle
Catalog Number
2754BF-250
Product Length/Depth
2.75 in
Product Height
4.5 in
Product Width
1.75 in
Product Weight
2 lb
UPC
662276382312
Area classification
Ordinary/Non-Hazardous Locations
Material
Brass
Type
Two semi-oval face receptacles
Amperage Rating
20A
Voltage rating
250 V AC
Cover type
Duplex
Special features
Flush mount unit
Pauluhn Marine Interior ANSI NEMA Receptacles catalog page
IF LBL 1557 - 27 and 27B Receptacles and Switches
Eaton Specification Sheet - 2754BF-250
Brass construction provides reliable conduction and corrosion resistance, delivering lower maintenance costs over the life of the panel. This translates to fewer field failures in industrial environments where moisture and contaminants are present. The 2754BF-250 is rated at 20A, 250V and is well-suited for control panels and machine enclosures in dry, ordinary locations. This reduces rework during commissioning and supports cleaner wiring layouts in compact panel environments. The duplex two semi-oval face receptacles streamline power distribution, reducing wiring complexity and improving fault isolation, which translates to faster installation and improved electrical reliability for technicians. The flush mount design optimizes space in enclosures, enabling tighter layouts and easier gasket sealing, which helps to minimize enclosure footprint and potential interference with adjacent components. With ordinary/non-hazardous area classification, this receptacle simplifies compliance planning and procurement for typical manufacturing plants. Precise dimensions (2.75 in length, 4.5 in height, 1.75 in width) ensure compatibility with standard cutouts and mounting patterns, reducing rework and installation time. Documentation is readily available via downloadable catalog pages, installation instructions, and datasheets, accelerating procurement, compliance checks, and on-site commissioning. Access to these resources supports cross-reference with the Pauluhn 27R family for consistent field performance across varied panel designs.
Get a Quick Quote for a Eaton Crouse-Hinds 2754BF-250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 2754BF-250?
Enquire Now
FAQs
Yes. The 2754BF-250 is designed as a flush-mount duplex receptacle in the Pauluhn 27R family, featuring two semi-oval face outlets and a compact depth of 2.75 inches. It measures 4.5 inches high and 1.75 inches wide, making it compatible with standard cutouts and mounting patterns used in typical Pauluhn 27R enclosures. It supports 20A at 250V AC and is intended for ordinary indoor locations. For best results, match recommended Pauluhn 27R backboxes and follow the provided installation instructions.
Key specs include a 20A amperage rating and a 250V AC voltage rating, brass material for durability, and a duplex cover with two semi-oval face receptacles. It is designed for flush-mount installation in ordinary locations and supports typical industrial control panel circuits. The UPC is 662276382312, and the part catalog number is 2754BF-250, ensuring traceability in procurement and maintenance records.
This receptacle is commonly used in industrial control panels, machine enclosures, and other dry indoor environments where space efficiency and reliable power delivery are important. The flush-mount design helps preserve enclosure real estate, while the brass construction enhances durability in moderate contaminant or moisture conditions typical of ordinary locations. It is also referenced in Pauluhn marine interior ANSI/NEMA contexts as a robust option for non-hazardous environments.
The available data lists area classification as Ordinary/Non-Hazardous Locations, indicating suitability for non-hazardous indoor environments. While additional certifications are not specified in the provided data, customers should consult the downloadable Eaton documentation—catalog page, installation sheet, and specification sheet—for formal compliance references, mounting guidance, and application notes that support regulatory alignment and procurement validation.
The brass construction offers improved durability and resistance to corrosion, reducing replacement frequency and maintenance costs over the equipment life. The duplex face and flush-mount design simplify installation and service, shortening commissioning times and limiting field rework. These factors translate to lower total cost of ownership, faster downtime recovery, and more predictable maintenance cycles in standard manufacturing environments.
