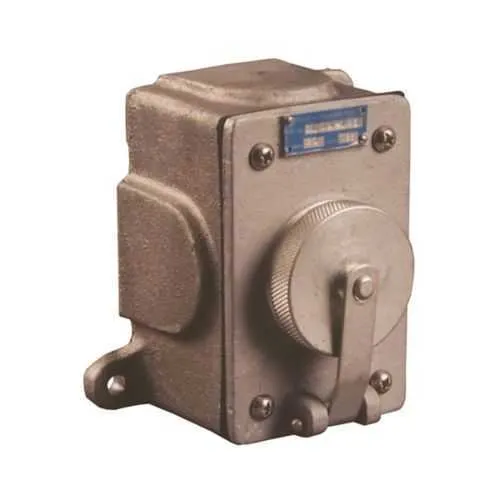

Eaton Crouse-Hinds 3100B-125-C2 Receptacle - IP66
Part Number: 3100B-125-C2
Quick Summary
3100B-125-C2 receptacle is a rugged pin‑and‑sleeve connector for Pauluhn systems in demanding industrial environments. It addresses moisture and dust ingress in outdoor or marine installations, reducing failure risk through proven IP66 protection. Constructed from brass with a three-wire, two-pole configuration, it supports 20A at 1250 Vac while meeting ordinary/non-hazardous location standards. Access to Eaton installation sheets and catalog pages accelerates quoting and commissioning, lowering procurement risk for maintenance teams. This combination of rugged build and comprehensive documentation helps engineers design safer, more reliable industrial power distribution, improving uptime and total cost of ownership.
Product Information
Extended Description
3100B-125-C2 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 3100 receptacle, 20A, Three-wire, two-pole, Brass, Through feed, 1250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 3100 receptacle
Catalog Number
3100B-125-C2
Product Length/Depth
3.56 in
Product Height
4.63 in
Product Width
3.63 in
Product Weight
4.7 lb
UPC
662276374867
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Amperage Rating
20A
Voltage rating
1250 Vac
Special features
Through feed
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1510 - 3100 and 3101 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 3100B-125-C2
Feature: Brass through-feed, three-wire two-pole configuration. Business Impact: Provides durable, corrosion-resistant connections and streamlined wiring, reducing field failures. Application: Pauluhn 3100 series installations in harsh environments. Feature: IP66 ingress protection. Business Impact: Ensures reliable operation in dusty or wet conditions, minimizing maintenance and downtime. Application: Outdoor, marine, or wash-down areas where containment matters. Feature: Electrical rating of 20A at 1250 Vac. Business Impact: Compatibility with standard power distribution while delivering robust performance under load. Application: Industrial equipment outlets and control panels requiring reliable power delivery. Feature: Through-feed design. Business Impact: Cuts down wiring complexity and labor, speeding up installation and future maintenance. Application: Fast commissioning in high-mix, low-downtime environments. Feature: Brass construction and Pauluhn 3100 compatibility. Business Impact: Enhanced durability and long service life in non-hazardous locations, reducing lifecycle costs. Application: Marine pin-and-sleeve systems and general industrial power distribution. Feature: Documentation and catalog resources. Business Impact: Accelerates design validation and procurement, lowering project risk. Application: Engineering quotes, spec reviews, and field commissioning.
Get a Quick Quote for a Eaton Crouse-Hinds 3100B-125-C2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 3100B-125-C2?
Enquire Now
FAQs
Install the 3100B-125-C2 using its through-feed method to minimize terminal blocks and maximize a secure, single-path connection. Ensure proper sealing to maintain IP66 protection, align the three-wire, two-pole configuration, and follow Eaton’s installation sheets for panel cutouts and mounting hardware to reduce commissioning time and field errors.
Yes. The unit is designed for Pauluhn marine pin-and-sleeve systems with brass construction and IP66 ingress protection, delivering reliable performance in water-exposure and wash-down environments while operating at 20A and up to 1250 Vac.
The 3100B-125-C2 is a 20A, 1250 Vac three-wire, two-pole receptacle. It uses brass construction and supports through-feed wiring, which simplifies installation and helps maintain a robust connection under industrial loads.
This receptacle carries IP66 ingress protection and is classified for Ordinary/Non-Hazardous Locations, ensuring suitability for standard industrial environments without hazardous area requirements. Documentation from Pauluhn further supports compliance in typical industrial settings.
You can access the Pauluhn catalog page, IF LBL 1510 installation sheet, and the Eaton specification sheet for 3100B-125-C2, which provide installation guidance, wiring diagrams, and product specifications to streamline design reviews and field commissioning.
