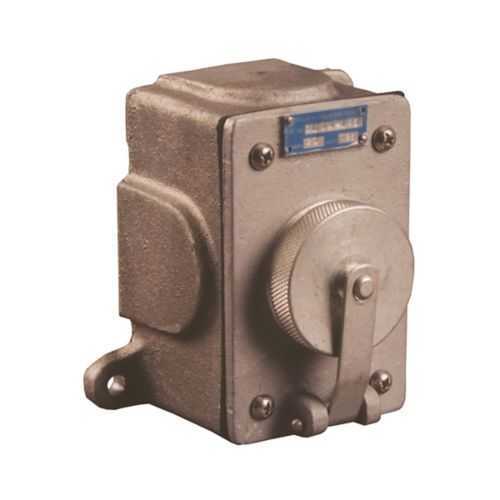

Eaton 3100B-125RS Receptacle - IP66
Part Number: 3100B-125RS
Quick Summary
The 3100B-125RS receptacle provides reliable power connections for heavy-duty marine and industrial applications. Operators often struggle with corrosion, ingress, and miswiring in harsh environments, which can lead to downtime and safety risks. This Pauluhn series design features IP66 ingress protection and is suitable for ordinary/non-hazardous locations, reinforcing durability in washdowns and exposure. Brass construction offers corrosion resistance, while reverse service capability simplifies field wiring in tight spaces. By aligning with Eaton Crouse-Hinds Pauluhn standards, this receptacle supports easy replacement, consistent performance, and a strong return on investment for projects requiring robust, compliant power connections.
Product Information
Extended Description
3100B-125RS Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 3100 receptacle, 20A, Three-wire, two-pole, Brass, Reverse service, 1250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 3100 receptacle
Catalog Number
3100B-125RS
Product Length/Depth
3.56 in
Product Height
4.63 in
Product Width
3.63 in
Product Weight
4.7 lb
UPC
662276382367
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Amperage Rating
20A
Voltage rating
1250 Vac
Special features
Reverse service
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1510 - 3100 and 3101 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 3100B-125RS
IP66 ingress protection and brass housing provide durable protection against washdowns and dust, reducing maintenance costs and downtime in marine and harsh industrial environments. The result is longer service life and lower total cost of ownership for power connections in challenging locations. The 20A, 1250 VAC, three-wire two-pole configuration delivers reliable, code-compliant power distribution for equipment and machinery, enabling predictable performance and faster commissioning. Reverse service capability offers flexible wiring options during installation, improving on-site adaptability and reducing field labor. Brass construction delivers corrosion resistance critical for salt spray and moisture exposure, boosting uptime in vessel and offshore applications. The compact, industry-standard Pauluhn 3100 series footprint simplifies component swaps and spare-part compatibility, speeding maintenance and reducing stock complexity. Overall, these design choices translate to higher reliability, safer operations, and improved maintenance planning for industrial power distribution.
Get a Quick Quote for a Eaton Crouse-Hinds 3100B-125RS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 3100B-125RS?
Enquire Now
FAQs
The 3100B-125RS uses a three-wire, two-pole configuration and fits standard Pauluhn 3100 series assemblies. With dimensions of 3.56 in depth, 4.63 in height, and 3.63 in width, plan for straightforward mounting and secure sealing in IP66-rated enclosures. Ensure proper alignment with compatible Pauluhn plugs and observe reverse-service wiring options when space constraints exist.
This receptacle provides a 20A amperage rating, a 1250 VAC voltage rating, and IP66 ingress protection. The configuration is three-wire, two-pole, brass construction, and it includes the reverse service feature for flexible installation. These specs support dependable operation in demanding environments with washdown exposure.
Yes. The IP66 rating ensures protection against dust and water ingress in marine and washdown conditions, and the area classification indicates suitability for Ordinary/Non-Hazardous Locations. While ideal for marine and industrial use, it should not be used in hazardous (classified) environments without additional protection.
Brass construction provides robust corrosion resistance, extending service life in salt spray and humid settings. The modular Pauluhn 3100 series design supports easy replacements and fast field service, which reduces downtime and replacement costs. Routine inspections and seal checks are straightforward due to standardized dimensions and compatibility with Pauluhn plugs.
Documentation includes the Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page, the IF LBL 1510 installation instruction sheet for 3100/3101 Series, and the Eaton specification sheet for 3100B-125RS. These resources support proper installation, wiring practices, and compliance verification for project teams.
