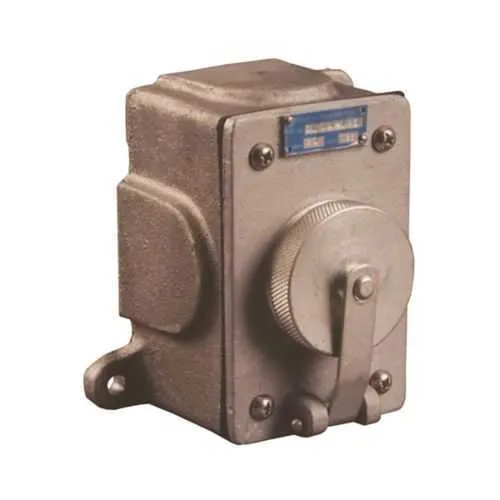

Eaton Crouse-Hinds 3100B-480 Receptacle - IP66
Part Number: 3100B-480
Quick Summary
The Eaton Crouse-Hinds 3100B-480 receptacle is a rugged 480 Vac power connection ideal for industrial and marine applications. When environments expose equipment to moisture, dust, or washdown, unreliable connectors drive maintenance costs and downtime. Built to protect sensitive outputs, it carries IP66 ingress protection and brass construction in a three-wire, two-pole configuration for ordinary/non-hazardous locations. This combination reduces maintenance cycles, enhances field serviceability, and supports standard automation panel designs. With straightforward mounting, a compact footprint, and compatibility with Pauluhn marine pin-and-sleeve systems, it offers a practical, cost-effective solution for installers and operators.
Product Information
Extended Description
3100B-480 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 3100 receptacle, 20A, Three-wire, two-pole, Brass, 480 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 3100 receptacle
Catalog Number
3100B-480
Product Length/Depth
3.56 in
Product Height
4.63 in
Product Width
3.63 in
Product Weight
4.9 lb
UPC
662276382398
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Amperage Rating
20A
Voltage rating
480 Vac
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1510 - 3100 and 3101 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 3100B-480
IP66 protection with a brass body delivers dependable performance in wet or dusty environments. This rugged design reduces moisture ingress and corrosion-related downtime, particularly in outdoor enclosures and marine facilities. With a 20A, 480 Vac rating in a three-wire, two-pole configuration, it aligns with common industrial power systems and minimizes wiring complexity. This compatibility supports consistent power delivery across automation panels and heavy equipment, and simplifies procurement by using standard Pauluhn 3100-series connectors. Brass construction resists corrosion and wear, extending service life in salt spray zones and chemical plants, which translates into lower replacement costs and higher uptime. Compact dimensions—3.56 in depth, 4.63 in height, 3.63 in width—and a 4.9 lb weight enable easier installation in tight panels, with a predictable footprint that supports fast retrofits and straightforward integration with Pauluhn 3100 accessories. UPC 662276382398 and available catalog pages support fast selection and traceability during procurement, while installation sheets aid compliant, error-free field installations. Pauluhn marine pin-and-sleeve compatibility ensures standardized spares and straightforward replacements across vessels and offshore facilities, reducing inventory complexity and accelerating maintenance cycles.
Get a Quick Quote for a Eaton Crouse-Hinds 3100B-480
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 3100B-480?
Enquire Now
FAQs
For installation, mount the 3100B-480 in enclosures or panels designed for Pauluhn 3100-series receptacles. Use proper sealing techniques to maintain IP66 integrity, ensure the three-wire, two-pole wiring follows local electrical codes, and connect to a 480 Vac supply rated for 20A. The brass body requires minimal torque on terminals to maintain a secure, corrosion-resistant connection.
Key specs include a 20A amperage rating at 480 Vac, configured as three-wire, two-pole, with brass construction and IP66 ingress protection. It is suitable for ordinary/non-hazardous locations and is part of the Pauluhn 3100 series for marine and industrial use, enabling reliable power delivery in demanding environments.
Yes. The IP66 protection rating combined with brass construction makes it well-suited for outdoor, washdown, and marine environments. Its ordinary/non-hazardous area classification supports general industrial applications, while Pauluhn marine pin-and-sleeve compatibility ensures standardized replacements in vessels and coastal facilities.
The component carries IP66 ingress protection and is specified for ordinary/non-hazardous locations. The unit is part of the Pauluhn 3100 series, designed to meet industry expectations for durability and reliability in harsh environments. Always confirm local code compliance and any project-specific certification requirements during procurement.
Choosing the 3100B-480 provides standardized Pauluhn marine pin-and-sleeve compatibility, traceable UPC identification, and a compact footprint that simplifies inventory and panel design. The brass construction and IP66 rating reduce maintenance costs and downtime, delivering predictable lifecycle performance for industrial automation and marine installations.
