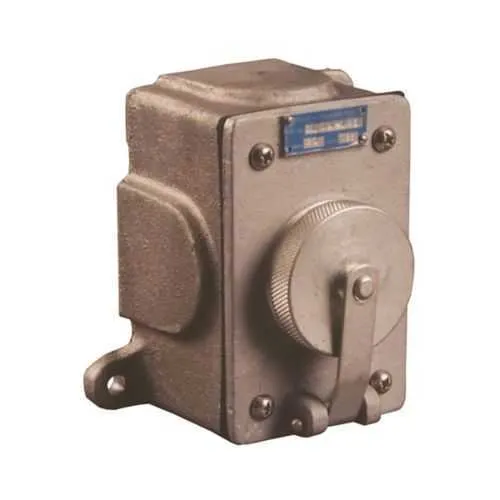

Eaton Crouse-Hinds 3101B-600 Receptacle - IP66
Part Number: 3101B-600
Quick Summary
The Eaton 3101B-600 Receptacle provides four-wire, three-pole power connections for industrial wiring and marine applications. Engineers often battle moisture, dust, and downtime in harsh environments, where rugged protection and reliable mating matter. Key compliance features include IP66 ingress protection and suitability for Ordinary/Non-Hazardous Locations, helping meet site standards. With brass construction, a 20A, 600 Vac rating, and Pauluhn compatibility, it reduces field failures while simplifying procurement and maintenance. That combination delivers dependable performance for industrial plants and marine environments, aligning with project schedules and budget targets. It also integrates with standard wiring methods and installs readily. Trust Eaton's Pauluhn design for long-term service.
Product Information
Extended Description
3101B-600 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 3101 receptacle, 20A, Four-wire, three-pole, Brass, 600 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 3101 receptacle
Catalog Number
3101B-600
Product Length/Depth
3.56 in
Product Height
4.63 in
Product Width
3.63 in
Product Weight
4.9 lb
UPC
662276382442
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Four-wire, three-pole
Amperage Rating
20A
Voltage rating
600 Vac
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1510 - 3100 and 3101 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 3101B-600
IP66 ingress protection guards against water and dust intrusion, reducing unplanned downtime and extending service life in wet or dusty environments. This receptacle is ideal for outdoor equipment, washdown zones, and non-hazardous industrial facilities, improving reliability and maintenance planning. The four-wire, three-pole configuration enables separate grounding and neutral paths, supporting safer, code-compliant connections for 20A loads up to 600 Vac and simplifying wiring practices in complex industrial panels. Brass construction delivers durable, corrosion-resistant performance, particularly valuable in marine and harsh industrial settings where exposure to moisture and salt can accelerate wear. Pauluhn marine pin-and-sleeve compatibility ensures robust mating with approved plugs, streamlining inventory control and serviceability in the field. The cataloged 3101B-600 format supports easy cross-reference during procurement and service visits, reducing mis-purchases and change orders. Overall, this receptacle combines proven reliability with installation efficiency for demanding environments.
Get a Quick Quote for a Eaton Crouse-Hinds 3101B-600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 3101B-600?
Enquire Now
FAQs
The 3101B-600 is designed as a four-wire, three-pole receptacle in Pauluhn configurations, suitable for standard enclosure mounting and everyday industrial wiring. Plan for a secure, weather-protected installation in ordinary locations, ensuring the receptacle faces are oriented for accessible mating with compatible plugs. Use appropriate conduit and strain-relief methods to maintain IP66 integrity and minimize stress on terminations.
This receptacle provides a 20A amperage rating and a 600 Vac voltage rating, configured as four-wire and three-pole. The configuration supports a dedicated grounding path and a separate neutral, improving safety and compliance for power connections in industrial panels and marine equipment. Confirm compatibility with Pauluhn plugs and mating components to ensure proper electrical continuity and protection.
Yes. The 3101B-600 is a Pauluhn marine pin-and-sleeve receptacle with IP66 ingress protection, making it well-suited for wet or washdown environments found on ships, docks, and outdoor industrial installations. Its brass construction further enhances corrosion resistance, while the ordinary/non-hazardous location classification supports typical marine and industrial applications without special hazard considerations.
Key compliance features include IP66 ingress protection and suitability for Ordinary/Non-Hazardous Locations, aligning with standard industrial and marine electrical practices. While the data does not list specific third-party certifications beyond IP66, the Pauluhn design and rugged brass construction are widely recognized for reliability in demanding environments.
To maximize longevity, install with proper sealing and strain-relief to preserve IP66 integrity, avoid over-tightening terminations, and use compatible Pauluhn plugs to ensure secure mating. Regular inspections should verify enclosure integrity, cable gland seating, and terminal cleanliness. The brass body resists corrosion, but routine cleaning and moisture control in marine and washdown areas remain prudent to minimize downtime and repair costs.
