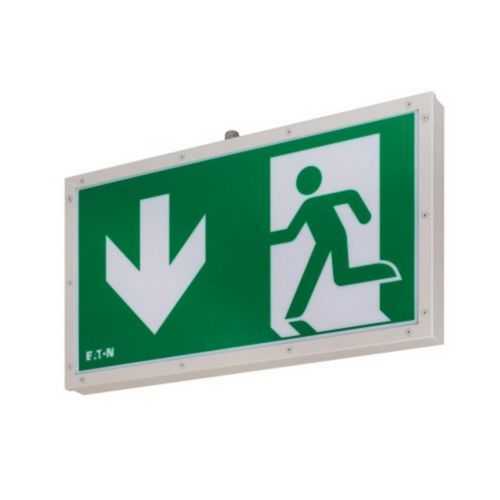

Eaton 40071777015 LED SC Emergency Luminaire - CE
Part Number: 40071777015
Quick Summary
The Eaton 60m - 46811 LED SC Emergency Luminaire delivers reliable exit signage for industrial facilities. Engineers often face downtime and complexity when upgrading emergency lighting, so a compact, wall-mounted solution that installs quickly is essential. Key certifications such as CE marking, IP65 ingress protection, and IK08 impact resistance provide regulatory confidence and rugged performance in dusty or wet environments. Maintained and non-maintained operation with a 60 m viewing distance supports standardized egress design across sites, while lithium-ion backing and CGLine+ monitoring help reduce maintenance costs and extend service intervals. This LED exit sign luminaire also aligns with energy efficiency goals through class A LED performance, offering both reliability and operational savings in demanding facilities.
Product Information
Extended Description
40071777015 Eaton Crouse-Hinds: Eaton 46811 LED, Exit sign, 60m, CGLine + technology, Maintained operation, 1h/3h selectable duration
Product Name
Eaton 60m - 46811 LED SC Emergency Luminaire
Catalog Number
40071777015
Product Length/Depth
654 mm
Product Height
64 mm
Product Width
354 mm
Product Weight
6.428 kg
Certifications
CE
EAN
3660191806132
Mounting Method
Wall surface mounted
Type of indicator
Only single-sided
Power supply system
Peripheral (individual battery)
Type of control gear
LED operating device current-controlled
Connection type
Plug-in connection
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Protection class
I
Explosion protected
False
Circuit
Other
Battery quality
Lithium-ions
Kind of luminaire
Exit sign luminaire
Function
Escape route signage
Mode
Maintained / Non-Maintained (M / NM)
Color housing
White
Material housing
Steel
Material cover
Plastic, opal
With remote switch connection
True
Degree of protection
IP65
Impact strength
IK08
Light distributor
Diffuser lens/optic/panel
Pictogram included
False
Labelling type
Acrylic plate
Viewing distance
60 m
Energy efficiency class
A++, A+, A (LED)
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Color of light
White
Lamp holder
None
Lamp type
LED not exchangeable
With light source
True
Degree of impact resistance (IK)
IK 08
Reserve-polarity protected
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
eaton-el-cps-catalog-2020-gbr.pdf
eaton-emergency-lighting-self-contained-exit-46811-led-certificate-enec-en.pdf
eaton-emergency-lighting-self-contained-exit-46811-led-certificate-enec-en.pdf
eaton-emergency-lighting-self-contained-exit-46811-led-certificate-enec-en.pdf
eaton-emergency-lighting-self-contained-exit-46811-led-manual-en.pdf
eaton-emergency-lighting-self-contained-exit-46811-led-datasheet-en.pdf
Feature: Wall surface mounted enclosure with dimensions 654 mm x 354 mm x 64 mm and a weight of 6.428 kg. Business impact: simplifies retrofits and reduces installation time, lowering on-site labor costs. Application: ideal for corridors and exit routes in manufacturing plants. Feature: Peripheral lithium-ion battery powered back-up with LED operating device current-controlled. Business impact: ensures reliable emergency illumination during mains loss and extends service life with efficient power management. Application: critical for safety in areas with strict regulatory requirements. Feature: IP65 protection rating and IK08 impact resistance with plug-in connection and remote switch compatibility. Business impact: durable performance in dusty, wet environments and straightforward integration into existing control schemes. Application: industrial facilities, outdoor-adjacent spaces, and harsh production zones. Feature: Maintained / Non-Maintained (M/NM) mode with 1 h / 3 h selectable duration and high-efficiency LED output (A++, A+, A). Business impact: flexible operation and energy savings while meeting code requirements. Application: design consistency across sites with centralized monitoring. Feature: CGLine+ safety monitoring and central feeded system compatibility with plug-in testing. Business impact: reduces downtime risk and simplifies compliance reporting. Application: enterprise-scale installations requiring robust monitoring and testing.
Get a Quick Quote for a Eaton Crouse-Hinds 40071777015
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 40071777015?
Enquire Now
FAQs
This luminaire is designed for wall surface mounting with a plug-in connection and remote switch compatibility. The compact 654x354x64 mm housing simplifies retrofits, while the 6.428 kg weight supports secure mounting in corridors and exit routes. Ideal for industrial facilities seeking fast installation and clean integration with existing control systems.
It uses a peripheral lithium-ion battery and an LED operating device current-controlled system. It supports Maintained and Non-Maintained operation with 1 h or 3 h selectable duration, and a viewing distance of 60 m. The unit operates on AC with a robust diffuser for uniform light distribution in exits.
Yes. It carries CE certification and, as shown by the product data, is rated IP65 for dust and water ingress and IK08 for impact resistance. ENEC certificates are available via the manufacturer’s technical documentation, confirming compliance for demanding environments.
CGLine+ provides centralized monitoring and testing of safety lighting, enabling proactive fault detection, faster fault isolation, and streamlined compliance reporting. In large sites, this reduces unscheduled downtime and extends service intervals by offering real-time status of the emergency lighting system.
Energy efficiency class A++/A+ LED output translates to lower operating costs, while lithium-ion back-up reduces battery replacement frequency. Combined with centralized CGLine+ monitoring, facilities see improved uptime, reduced maintenance labor, and faster regulatory audits, yielding a favorable total-cost-of-ownership over the system lifespan.
