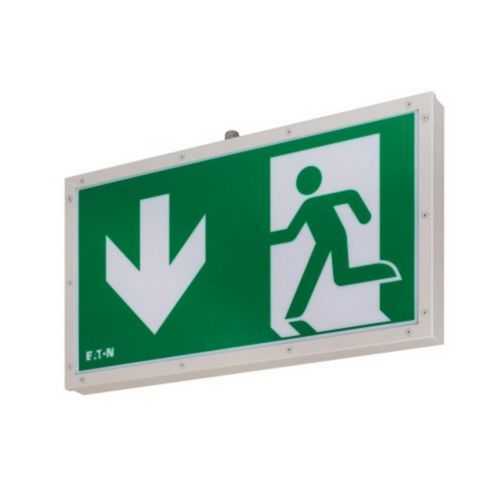

Eaton 46811 LED SC Emergency Luminaire - CE Certified IP65
Part Number: 40071777016
Quick Summary
Eaton 46811 LED SC Emergency Luminaire provides reliable exit signage for escape routes in industrial facilities. In busy plants, outages and uneven lighting raise safety risk and complicate regulatory audits. This unit carries CE certification, IP65 ingress protection, and IK08 impact rating, with HACCP-compatible options for food processing environments. Designed for high-availability maintenance modes and central monitoring, it helps reduce downtime while meeting evolving regulatory demands. By combining a lithium-ion battery with CGLine+ testing and a plug-in connection, it offers straightforward installation and predictable lifecycle costs for procurement teams.
Product Information
Extended Description
40071777016 Eaton Crouse-Hinds: Eaton 46811 LED, Exit sign, 60m, CGLine + technology, Maintained operation, 1h/3h selectable duration, HACCP for food processing areas
Product Name
Eaton 60m - 46811 LED SC Emergency Luminaire
Catalog Number
40071777016
Product Length/Depth
654 mm
Product Height
64 mm
Product Width
354 mm
Product Weight
6.428 kg
Certifications
CE
EAN
3660191806149
Mounting Method
Wall surface mounted
Type of indicator
Only single-sided
Power supply system
Peripheral (individual battery)
Type of control gear
LED operating device current-controlled
Connection type
Plug-in connection
Voltage type
AC
Wiring system
Continuous circuit/emergency circuit
Protection class
I
Explosion protected
False
Circuit
Other
Battery quality
Lithium-ions
Kind of luminaire
Exit sign luminaire
Function
Escape route signage
Mode
Maintained / Non-Maintained (M / NM)
Color housing
White
Material housing
Steel
Material cover
Plastic, opal
With remote switch connection
True
Degree of protection
IP65
Impact strength
IK08
Light distributor
Diffuser lens/optic/panel
Pictogram included
False
Labelling type
Acrylic plate
Viewing distance
60 m
Energy efficiency class
A++, A+, A (LED)
Energy efficiency class of the built-in lamp
A++, A+, A (LED)
Color of light
White
Lamp holder
None
Lamp type
LED not exchangeable
With light source
True
Degree of impact resistance (IK)
IK 08
Reserve-polarity protected
True
Monitoring equipment
Safety module for monitoring (central feeded system)
Testing system
CGLine +
eaton-el-cps-catalog-2020-gbr.pdf
eaton-emergency-lighting-self-contained-exit-46811-led-manual-en.pdf
eaton-emergency-lighting-self-contained-exit-46811-led-datasheet-en.pdf
Feature: 60 m viewing distance and diffuser lens configuration. Business Impact: Enhances long-range visibility of exit routes, reducing misinterpretation and improving evacuation efficiency in large spaces such as factories and warehouses. Application: Corridor and open-area applications where signage must be legible at a distance. Feature: Maintained and Non-Maintained (M/NM) mode with CGLine+ monitoring. Business Impact: Ensures continuous safety lighting during power loss while enabling proactive system health checks and reduced maintenance overhead. Application: Facilities requiring strict uptime and centralized monitoring, including food processing lines and clean rooms. Feature: IP65 protection and IK08 robustness. Business Impact: Durable against dust, water jets, and impacts, lowering replacement cycles and total cost of ownership. Application: Washdown-friendly environments and harsh industrial settings. Feature: Peripheral lithium-ion battery with remote switch connection. Business Impact: Predictable lifecycle cost, fast battery replacement, and flexible control wiring for modular installations. Application: New builds or retrofits with centralized control philosophy. Feature: Wall surface mounting and plug-in connection. Business Impact: Simplified installation, reduced commissioning time, and versatile placement in constrained spaces. Application: Retrofit projects and spaces with limited access to wiring routes.
Get a Quick Quote for a Eaton Crouse-Hinds 40071777016
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 40071777016?
Enquire Now
FAQs
The unit supports wall surface mounting with a plug-in connection and a peripheral battery system. It is designed for CGLine+ monitoring, enabling centralized fault reporting. It uses AC supply and offers both Maintained and Non-Maintained modes, simplifying retrofit into existing safety circuits and ensuring consistent emergency operation during outages.
Key certifications include CE marking, IP65 ingress protection, and IK08 impact resistance, with HACCP-compatible configurations for hygienic environments. The luminaire’s steel housing and acrylic cover are suited for washdown areas, while the Maintained/NM modes support regulatory compliance and uninterrupted signage in critical processing zones.
Maintained mode keeps illumination on during normal operation and emergencies, ensuring continuous visibility of exit signs. Non-Maintained mode powers the luminaire only during an outage, conserving energy and extending battery life. For facilities with strict evacuation signage requirements, selecting Maintained mode improves safety readiness and simplifies compliance reporting.
Yes. The CGLine+ monitoring capability supports central feeded systems, enabling health checks, status alerts, and remote maintenance scheduling. The plug-in connection and peripheral battery arrangement help streamline integration, allowing facilities to leverage existing building management or emergency lighting monitoring infrastructure.
The lithium-ion battery, remote switch option, and modular design reduce replacement cycles and maintenance visits. The Maintained/NM options align with energy-use policies, while central monitoring lowers inspection costs. Overall, facilities experience improved uptime, lower total cost of ownership, and better regulatory adherence over the product lifecycle.
