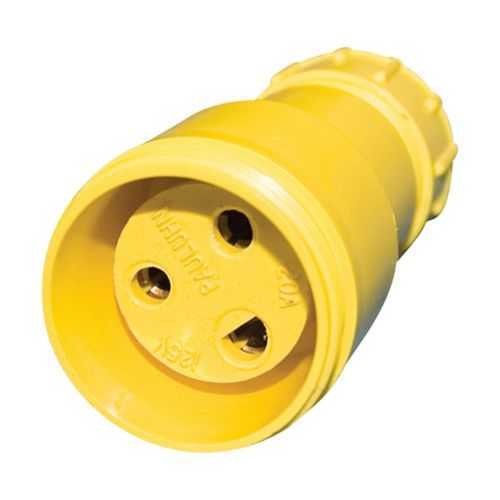

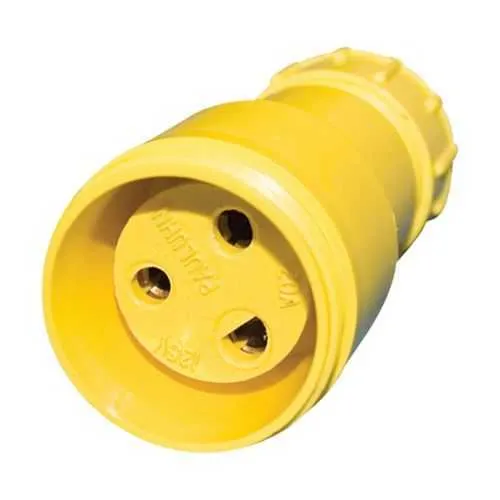

Eaton Crouse-Hinds 426PC-125 Plug & Connector - IP66
Part Number: 426PC-125
Quick Summary
426PC-125 plug and connector is a rugged 125 V, 20 A two-pole, three-wire power interface designed for industrial control panels. Engineers often face moisture ingress, dust, and mis-mating failures in harsh environments, which can drive downtime and maintenance costs. This Pauluhn solution delivers reliable, weatherproof performance with IP66 protection and Ordinary/Non-Hazardous Location classification, making it suitable for general plant and outdoor applications. The ABS+PC blend, compact 8.25 in length and 2 x 2 in footprint, and Pauluhn compatibility deliver installation simplicity and long-term cost savings, while supporting straightforward spares stocking for OEMs and service teams.
Product Information
Extended Description
426PC-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 420PC plug and connector, 20A, 0.437-0.312", Two-pole, three-wire, Acrylonitrite butadiene styrene/polycarbonate blend (ABS+PC), 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 420PC plug and connector
Catalog Number
426PC-125
Product Length/Depth
8.25 in
Product Height
2 in
Product Width
2 in
Product Weight
0.6 lb
UPC
662276382855
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Voltage rating
125 Vac
Amperage Rating
20A
Cable range
0.437-0.312"
Material
Acrylonitrite butadiene styrene/polycarbonate blend (ABS+PC)
Pauluhn Marine Nonmetallic Pin and Sleeve Plugs and Connectors catalog page
Eaton Specification Sheet - 426PC-125
Two-pole, three-wire configuration provides a clear, safe power interface for automation panels and machines, reducing wiring errors and improving maintenance efficiency. This translates to faster panel builds and safer field replacements in demanding environments. The 125 Vac, 20 A rating supports standard automation loads with a comfortable safety margin, helping engineers avoid over-spec or under-rated solutions. Cable range of 0.312–0.437 inches accommodates mid-size conductors common in control wiring, accelerating field terminations and minimizing re-terminations. IP66 ingress protection and Ordinary/Non-Hazardous Location classification ensure dust and water exposure does not compromise performance in washdown or general plant settings. ABS+PC material delivers impact and chemical resistance for durability in processing environments, reducing replacement cycles. The 8.25 in length and 2 in width/height offer a compact footprint that fits crowded control panels and simplifies retrofit projects. Compatibility with the Pauluhn 420PC family streamlines spare parts management and improves procurement efficiency for maintenance teams.
Get a Quick Quote for a Eaton Crouse-Hinds 426PC-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 426PC-125?
Enquire Now
FAQs
426PC-125 is part of the Eaton Crouse-Hinds Pauluhn line and shares the same two-pole, three-wire configuration and mating interfaces as the 420PC family. This alignment simplifies cross-compatibility, stocking, and field replacements, enabling technicians to interchange components within the Pauluhn ecosystem without extensive rework.
The 426PC-125 is rated for 125 VAC and 20 A, which supports common automation loads in control panels, drives, and machine wiring. This rating provides adequate headroom for typical industrial applications while maintaining safety margins in non-hazardous environments.
The connector accommodates a cable range of 0.312 to 0.437 inches, allowing use with mid-size conductors without re-termination. This range supports flexible field wiring and reduces the need for conductor resizing during installation or maintenance.
With IP66 ingress protection and Ordinary/Non-Hazardous Location classification, the 426PC-125 is suited for general plant areas and outdoor installations where exposure to dust and washdown occurs, while not intended for hazardous locations. These certifications help ensure reliability in demanding industrial settings.
Plan for mating with compatible Pauluhn plugs and sleeves within the same family to ensure a proper seal. The unit’s 8.25 in length and 2 x 2 in footprint fit compact panel spaces, and maintaining IP66 integrity requires proper enclosure sealing and correct accessory use from the Pauluhn lineup during mounting and maintenance.
