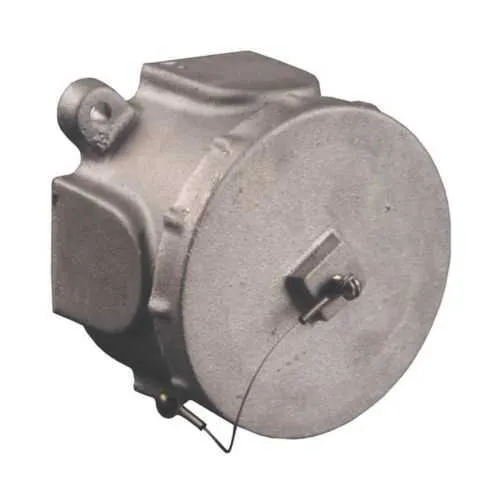

Eaton Crouse-Hinds 562BT4-L3 Junction Box - IP66
Part Number: 562BT4-L3
Manufacturer
Eaton Crouse-Hinds
Part number
562BT4-L3
Quick Summary
The Eaton Crouse-Hinds 562BT4-L3 junction box protects 1 inch terminations in surface-mounted industrial panels. Engineers often struggle with moisture, dust, and space constraints that slow wiring and maintenance. This enclosure delivers IP66 protection, NEC/CEC compliance, and ordinary/non-hazardous location suitability. Brass construction and a 4-pole terminal block simplify wiring, improving reliability and reducing field labor. Its dimensions (4.25 in L/H, 2.38 in W) and 1 inch trade size enable predictable fit in control panels and serviceable installs in ordinary locations. Leverage the included 4-pole terminal block for faster terminations and fewer field connectors, reducing commissioning time. When projects require compliant, rugged enclosures in compact spaces, this model helps maintain system integrity and uptime.
Product Information
Extended Description
562BT4-L3 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 562 junction box, 2-3/8" depth, Brass, Surface mount, 4-pole terminal block, 90° angle, 1" trade size
Product Name
Eaton Crouse-Hinds series Pauluhn 562 junction box
Catalog Number
562BT4-L3
Product Length/Depth
4.25 in
Product Height
4.25 in
Product Width
2.38 in
Product Weight
3.8 lb
UPC
662276681286
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Depth
2-3/8 in
Trade size
1"
Style
90° angle
Mounting style
Surface
Special features
4-pole terminal block
Crouse-Hinds series Pauluhn 500 Series Round Marine Junction Boxes catalog page
Eaton Specification Sheet - 562BT4-L3
Feature: IP66 ingress protection provides robust dust and water resistance. Business Impact: Minimizes unplanned downtime due to environmental exposure, improving uptime in outdoor or damp locations. Application: Ideal for factory floors, outdoor controls, or marine-adjacent installations where ingress protection is critical. Feature: Brass construction delivers excellent durability and corrosion resistance. Business Impact: Extends service life in harsh industrial environments, lowering replacement costs over time. Application: Suitable for saline or humid environments, control cabinets, and process panels requiring sturdy enclosures. Feature: 1 inch trade size with 4-pole terminal block simplifies wiring. Business Impact: Reduces assembly time and reduces the number of field connectors, accelerating commissioning. Application: Convenient for multi-wire terminations in small footprints inside control panels. Feature: 90° angle with surface mounting supports compact routing of cables and wiring harnesses. Business Impact: Improves layout flexibility and reduces cabinet footprint, enabling denser installations. Application: Surface-mounted installations where wiring angles must navigate tight spaces. Feature: 4-pole terminal block and ordinary/non-hazardous location rating streamline NEC/CEC-compliant installations. Business Impact: Ensures regulatory compliance while maintaining straightforward maintenance. Application: Widely used in standard industrial controls and non-hazardous environments, aligning with common industry practices.
Get a Quick Quote for a Eaton Crouse-Hinds 562BT4-L3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 562BT4-L3?
Enquire Now
FAQs
The 562BT4-L3 carrys an IP66 rating, suitable for ordinary (non-hazardous) locations and environments where dust and water exposure is a concern. This makes it appropriate for indoor, outdoors in dry/wet zones, and general industrial applications where robust enclosure protection is required.
The enclosure measures 4.25 inches in length/depth and 2.38 inches in width, with a height of 4.25 inches and a weight of approximately 3.8 pounds. These dimensions offer a compact footprint suitable for tight control panel spaces while maintaining enough room for connections.
Yes. The 1 inch trade size is specified in its product data, and it features a 4-pole terminal block, enabling multi-wire terminations within a single brass junction box for streamlined wiring and reduced hardware requirements.
The 562BT4-L3 is designed for surface mounting and supports a 90° angle configuration, enabling flexible wiring routes and compact installation in control panels or equipment housings without requiring through-panel mounting.
This junction box adheres to NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations. It provides IP66 protection, reflecting compliance with common regulatory and safety frameworks for industrial enclosures.
