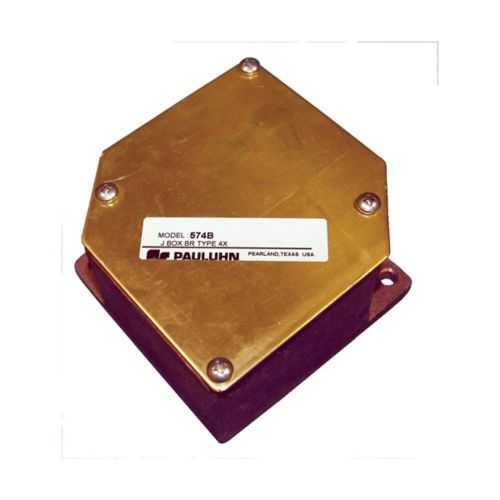

Eaton 574BT6 Junction Box - IP66
Part Number: 574BT6
Quick Summary
The 574BT6 junction box provides a durable enclosure for field terminations in industrial settings. It addresses common issues like moisture ingress, dust intrusion, and corrosion in harsh environments, reducing maintenance downtime and unexpected failures. This unit meets NEC/CEC standards and offers IP66 ingress protection plus Ordinary/Non-Hazardous Locations area classification for reliable performance in non-hazardous zones. As a brass, surface-mount enclosure with a 6-pole terminal block, it supports clean cable management and quick installation, delivering long-term reliability and lower lifecycle costs for control systems.
Product Information
Extended Description
574BT6 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 574 junction box, 2-3/16" depth, Brass, Surface mount, 6-pole terminal block
Product Name
Eaton Crouse-Hinds series Pauluhn 574 junction box
Catalog Number
574BT6
Product Length/Depth
4.38 in
Product Height
4.38 in
Product Width
2.19 in
Product Weight
4.5 lb
UPC
662276383715
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Ingress protection (IP) ratings
IP66
Material
Brass
Depth
2-3/16 in
Mounting style
Surface
Special features
6-pole terminal block
Crouse-Hinds series Pauluhn 500 Series Rectangular Marine Junction Boxes catalog page
Eaton Specification Sheet - 574BT6
Feature: IP66 ingress protection protects against dust and powerful water jets. Business Impact: Reduces preventative maintenance needs and minimizes unplanned downtime in outdoor or damp environments. Application: Ideal for control panels and field wiring on conveyors, pump stations, and process lines. Feature: Brass construction offers corrosion resistance. Business Impact: Extends service life in humid or mildly aggressive environments, lowering replacement costs. Application: Suitable for agricultural, mining, and industrial plants with challenging atmospheres. Feature: Surface mounting simplifies install and reduces panel space. Business Impact: Speeds up installation and provides robust mounting for confined spaces. Application: Wall-mounted enclosures near equipment racks and switchgear. Feature: 6-pole terminal block supports multiple conductors. Business Impact: Improves wiring efficiency and reduces auxiliary terminal blocks. Application: Controller wiring for sensors, valves, and actuators. Feature: Compact 4.38 in length/height with 2-3/16 in depth. Business Impact: Fits standard panel cut-outs while maximizing internal space. Application: Retrofit projects and new panel builds requiring compact enclosures. Insight: Pauluhn 500 Series compatibility helps standardize components across sites, reducing parts diversity and training time.
Get a Quick Quote for a Eaton Crouse-Hinds 574BT6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 574BT6?
Enquire Now
FAQs
The 574BT6 is IP66 rated, providing dust-tight protection and protection against powerful water jets from all directions. This makes it well-suited for harsh industrial environments where dust, water spray, or washdown exposure is common, helping to prevent ingress that could compromise electrical terminations.
The 574BT6 uses surface mounting for quick, secure installation. Its external dimensions are 4.38 inches in length and height and 2-3/16 inches in depth, with an approximate weight of 4.5 pounds. These specs fit standard panel cutouts and offer ample internal room for a 6-pole terminal block.
Yes. It is rated IP66 for dust and water ingress and classified for Ordinary/Non-Hazardous Locations. While it is well suited for outdoor or damp environments, it is not intended for Hazardous locations unless additional protective measures are employed and verified against local codes.
The 6-pole terminal block supports up to six conductors, enabling straightforward wiring for common control circuits. When wiring, ensure conductor sizes and torque specifications meet NEC/CEC requirements, maintain proper strain relief, and verify that the enclosure remains IP66-sealed after termination for continued protection.
Yes, the 574BT6 conforms to NEC/CEC standards and carries IP66 ingress protection with Ordinary/Non-Hazardous Locations area classification. This combination supports code-compliant installation in non-hazardous industrial settings, providing confidence for spec-driven procurement and maintenance planning.
