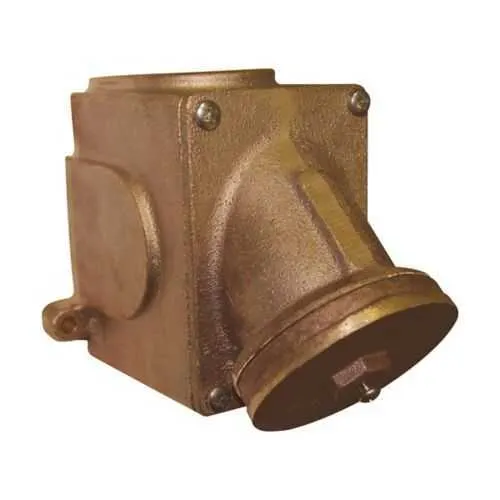

Eaton Crouse-Hinds 6006B-277 Receptacle - IP66
Part Number: 6006B-277
Quick Summary
The Eaton Crouse-Hinds 6006B-277 receptacle is a rugged four-wire, three-pole electrical receptacle designed for 277 VAC industrial and outdoor applications. In real-world projects, installers often struggle with seal integrity, compatibility with Pauluhn marine pin-and-sleeve systems, and space constraints in rugged environments. This model addresses those challenges with a brass construction and a durable angle configuration. It carries IP66 ingress protection and is suitable for Ordinary/Non-Hazardous Locations, providing reliable performance in washdown zones and exposed equipment. By pairing robust protection with straightforward compatibility, this receptacle supports faster field installs and longer service life, delivering measurable reductions in downtime and maintenance costs for wiring and connectivity projects.
Product Information
Extended Description
6006B-277 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 6000 receptacle, 30A, Four-wire, three-pole, Brass, Angle, 277 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 6000 receptacle
Catalog Number
6006B-277
Product Length/Depth
4.75 in
Product Height
5.88 in
Product Width
2.75 in
Product Weight
7.4 lb
UPC
662276383944
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Four-wire, three-pole
Type
Angle
Amperage Rating
30A
Voltage rating
277 Vac
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1544 - 6000 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 6006B-277
Feature → Business Impact → Application: Brass construction delivers excellent corrosion resistance and long-term durability, reducing replacement intervals and total cost of ownership in harsh environments. Application: outdoor enclosures, marine equipment, and washdown areas where longevity matters. Feature → Business Impact → Application: IP66 ingress protection protects against dust and high-pressure water jets, enhancing reliability in exposed installations and compliant with rough site requirements. Application: industrial plants, mills, and outdoor control panels. Feature → Business Impact → Application: 30A at 277 VAC with four-wire, three-pole configuration supports standard industrial power distribution and Pauluhn marine plugs, simplifying procurement and integration. Application: heavy machinery, conveyors, and weatherproof wiring schemes. Feature → Business Impact → Application: Angle mounting and compact footprint enable easier panel layouts and quicker wiring, reducing installation time and space constraints. Application: compact control panels and restricted enclosures. Feature → Business Impact → Application: Four-wire Pauluhn compatibility ensures secure mating and reliable performance in marine and rugged environments, minimizing intermittent connections. Application: marine vessels, offshore rigs, and outdoor equipment. Feature → Business Impact → Application: Brass construction and standard dimensions (4.75 in length, 5.88 in height, 2.75 in width) support straightforward stock management and faster replacement in service catalogs. Application: maintenance shops, distributors, and OEMs.
Get a Quick Quote for a Eaton Crouse-Hinds 6006B-277
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 6006B-277?
Enquire Now
FAQs
To ensure IP66 integrity, use the recommended Pauluhn installation method and check enclosure seals and gaskets for wear before mounting. Follow the IF LBL 1544 instructions for marine pin-and-sleeve fitment and torque specifications, and ensure four-wire, three-pole wiring matches the 30A, 277 Vac rating for ordinary locations.
The 6006B-277 is a four-wire, three-pole receptacle rated at 30A and 277 VAC. It features brass construction in an angle configuration, with IP66 ingress protection and suitability for ordinary/non-hazardous locations, ensuring dependable power delivery in rugged settings.
Yes. Built to Pauluhn standards with IP66 protection, the 6006B-277 is designed for marine and outdoor environments where exposure to dust, moisture, and washdowns is common. Its brass construction adds corrosion resistance, extending service life in challenging applications.
The brass body and IP66 sealing reduce corrosion and ingress-related failures, lowering maintenance costs and downtime. Its compatibility with Pauluhn 6000-series plugs and ease of mounting support fast, reliable field service and consistent performance in harsh environments.
Official documents are available through Eaton’s Pauluhn resources: the Pauluhn Marine Pin and Sleeve catalog page, the IF LBL 1544 installation sheet, and the Eaton specification sheet for 6006B-277, which provide complete wiring, mounting, and compliance details.
