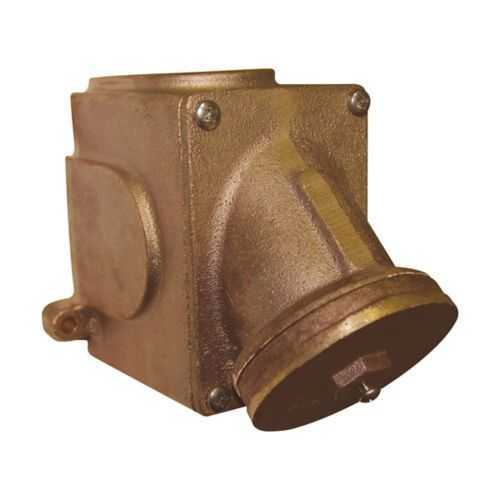

Eaton 6009B-125 Receptacle - IP66
Part Number: 6009B-125
Quick Summary
6009B-125 receptacle provides reliable power connections for marine and industrial equipment in harsh environments. Operators face costly downtime when connectors fail from dust, moisture, or vibration; this model helps reduce that risk with rugged construction. Key certifications include IP66 ingress protection and ordinary/non-hazardous location classification, supporting safe operation across demanding sites. As part of the Eaton Crouse-Hinds Pauluhn line, it delivers durable brass performance, a three-wire, two-pole configuration, and a compact angle design that eases panel integration and serviceability. For contractors and maintenance teams, this receptacle also benefits from documented installation guidance and a marine pin-and-sleeve catalog lineage. In practice, that translates to faster commissioning, better corrosion resistance, and long-term cost savings through fewer field failures.
Product Information
Extended Description
6009B-125 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 6000 receptacle, 30A, Three-wire, two-pole, Brass, Angle, 125 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 6000 receptacle
Catalog Number
6009B-125
Product Length/Depth
4.75 in
Product Height
5.88 in
Product Width
2.75 in
Product Weight
7.5 lb
UPC
662276384033
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Type
Angle
Amperage Rating
30A
Voltage rating
125 Vac
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1544 - 6000 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 6009B-125
Feature → Business Impact → Application: IP66 ingress protection and brass construction deliver dust-tight, water-jet resistant performance, reducing corrosion risk and maintenance costs in outdoor and harsh environments. This translates to longer service intervals and lower total cost of ownership for marine pin and sleeve receptacles used in rugged applications. Application: outdoor equipment cabinets, shipboard panels, and offshore installations. Feature → Business Impact → Application: 30A, 125 VAC, three-wire two-pole configuration provides a secure, code-consistent power connection even under vibration, minimizing arcing and downtime. Application: industrial automation panels and equipment rooms requiring reliable power distribution. Feature → Business Impact → Application: angle mounting and Pauluhn series compatibility enable straightforward retrofits and panel integration, reducing installation time and spare-parts inventory. Application: retrofit projects and new builds where Pauluhn accessories are already in use. Feature → Business Impact → Application: ordinary/non-hazardous location classification simplifies compliance planning and reduces permitting complexity. Application: non-hazardous plant floors and service rooms. Feature → Business Impact → Application: brass construction offers robust mechanical strength and heat dissipation, enhancing longevity in demanding settings. Application: high-vibration environments such as vehicle maintenance bays and mobile equipment. Feature → Business Impact → Application: comprehensive documentation and compatibility with Pauluhn catalog pages streamline procurement and field service. Application: procurement teams improving sourcing consistency and maintenance teams achieving faster repairs.
Get a Quick Quote for a Eaton Crouse-Hinds 6009B-125
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 6009B-125?
Enquire Now
FAQs
The 6009B-125 is a three-wire, two-pole, angle-configured receptacle designed for panel mounting. Plan for IP66-rated sealing, use with compatible Pauluhn plugs, and follow the IF LBL 1544 instructions for marine pin and sleeve assemblies. Ensure enclosure access and cable entry align with Ordinary/Non-Hazardous location guidelines to maintain compliance and performance across the service life.
This model is rated for 30A at 125 VAC, three-wire, two-pole configuration, brass material, and an angle mounting style. It provides a secure, code-compliant power connection suitable for demanding environments, including industrial panels and marine equipment that require robust, high-current connections with reliable contact integrity.
Yes. The 6009B-125 belongs to Eaton Crouse-Hinds Pauluhn series and is documented in Pauluhn marine catalogs. It carries IP66 ingress protection and is designed for ordinary/non-hazardous locations, making it well-suited for shipboard panels and outdoor marine installations where dust, splash, and vibration are common.
Key documentation includes the Pauluhn Marine Pin and Sleeve catalog page, installation sheets (IF LBL 1544), and the Eaton specification sheet for 6009B-125. These resources support proper installation, regulatory alignment, and compatibility with Pauluhn connectors, helping maintenance teams verify compliance and performance expectations.
The 6009B-125 combines IP66 protection, brass durability, and Pauluhn compatibility to reduce field failures and downtime. Its robust construction supports longer service intervals, easier retrofit with existing Pauluhn components, and predictable maintenance planning, delivering lower total cost of ownership for industrial and marine power distribution.
