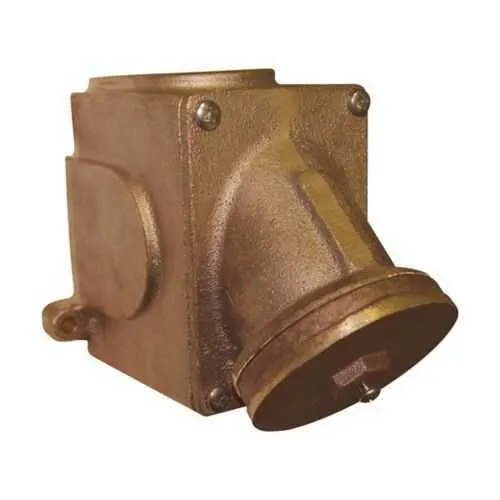

Eaton Crouse-Hinds 6009B-250 Receptacle - IP66
Part Number: 6009B-250
Quick Summary
6009B-250 is a 30A three-wire Pauluhn receptacle for rugged industrial electrical connections. Engineers often struggle with durable, IP-rated disconnects that withstand washdowns and dust in harsh environments. IP66 protection and Ordinary/Non-Hazardous Location suitability are central to its rugged performance, while brass construction offers long-term corrosion resistance. Designed to integrate with Pauluhn marine pin-and-sleeve systems and Eaton's wiring devices portfolio, it delivers reliable, field-ready connections that reduce maintenance and downtime. Leveraging compatible three-wire, two-pole configuration ensures safe, code-compliant wiring.
Product Information
Extended Description
6009B-250 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 6000 receptacle, 30A, Three-wire, two-pole, Brass, Angle, 250 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 6000 receptacle
Catalog Number
6009B-250
Product Length/Depth
4.75 in
Product Height
5.88 in
Product Width
2.75 in
Product Weight
7.8 lb
UPC
662276384040
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Type
Angle
Amperage Rating
30A
Voltage rating
250 V AC
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1544 - 6000 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 6009B-250
Feature: 30A at 250 V AC with three-wire, two-pole configuration. Business Impact: Supports standard industrial loads with safe, code-compliant wiring, reducing miswiring risks and wiring errors. Application: Ideal for motor, pump, and control panel connections in rugged environments. Feature: IP66 ingress protection. Business Impact: Resists dust and powerful water jets, lowering equipment downtime due to contamination or moisture. Application: Outdoor, washdown, and harsh environments in manufacturing or marine settings. Feature: Brass construction. Business Impact: Enhanced durability and corrosion resistance extend service life in aggressive surroundings. Application: Continuous-duty installations where longevity matters, including outdoor enclosures and coastal facilities. Feature: Angle configuration with specific dimensions. Business Impact: Easier panel mounting and space optimization, improving install time and labor costs. Application: Control panels and housings with limited clearance. Feature: Ordinary/Non-Hazardous Location suitability. Business Impact: Streamlined compliance for non-hazardous facilities, reducing certification overhead. Application: General industrial facilities and non-hazardous areas. Feature: Documentation and compatibility. Business Impact: Access to installation instructions and datasheets simplifies procurement and reduces field errors. Application: Projects requiring Pauluhn Pin and Sleeve compatibility and quick reference materials.
Get a Quick Quote for a Eaton Crouse-Hinds 6009B-250
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 6009B-250?
Enquire Now
FAQs
The 6009B-250 is designed for Pauluhn three-wire, two-pole configurations and integrates with Pauluhn pin-and-sleeve receptacles and plugs. Its angle configuration supports panel mounting with standard mounting patterns, while the brass body provides durability in outdoor or washdown environments. For installation, refer to the IF LBL 1544 instruction sheet and the Pauluhn catalog page for mounting dimensions and clearances.
This receptacle is rated for 30A and 250V AC, with IP66 ingress protection. It uses a three-wire, two-pole configuration and brass construction. The Ordinary/Non-Hazardous Location rating indicates suitability for general industrial environments rather than hazardous areas, supporting reliable performance in typical plant and outdoor settings.
Yes. The IP66 rating provides strong protection against dust and high-pressure water jets, making it suitable for outdoor washdown and marine-adjacent environments. Brass construction further resists corrosion, and the three-wire, two-pole arrangement supports common industrial loads typical in pumps, conveyors, and control panels used in marine and industrial facilities.
The key compliance elements include IP66 ingress protection and Ordinary/Non-Hazardous Location suitability. These factors align with general industrial installation requirements, helping ensure safe operation in non-hazardous environments. For full certification detail, consult the product datasheet and Pauluhn catalog pages listed in the downloads.
Available documentation includes the Pauluhn catalog page, IF LBL 1544 installation instructions, and the Eaton specification sheet for 6009B-250. Accessing these resources simplifies correct installation, reduces field rework, and accelerates procurement. With durable brass construction and IP66 protection, the total cost of ownership decreases over time due to lower maintenance and longer service life.
