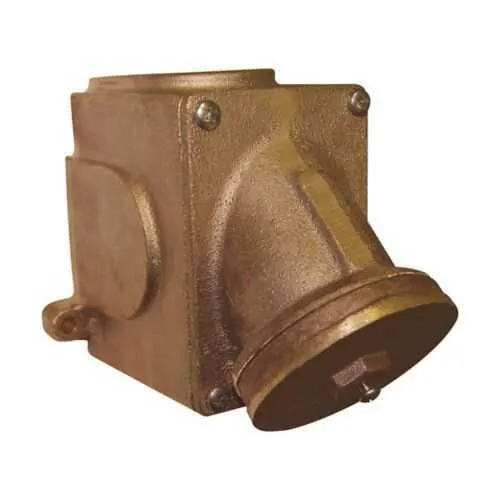

Eaton Crouse-Hinds 6009B-277 Receptacle - IP66
Part Number: 6009B-277
Quick Summary
The Eaton Crouse-Hinds 6009B-277 Receptacle provides reliable 30A power connections for three-wire, two-pole circuits in industrial and marine settings. Engineers often contend with moisture, dust, and vibration that threaten uptime; IP66 protection helps maintain flow in wash-down areas and outdoor installations. This unit is intended for Ordinary/Non-Hazardous locations, supporting safe operation in typical plant and vessel environments. Its brass construction and precise Pauluhn pin-and-sleeve design deliver long service life, while the angle configuration simplifies panel mounting and field retrofits. By pairing compatibility with Pauluhn plugs and robust protections, it reduces maintenance costs and supports efficient, compliant power distribution in demanding applications.
Product Information
Extended Description
6009B-277 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 6000 receptacle, 30A, Three-wire, two-pole, Brass, Angle, 277 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 6000 receptacle
Catalog Number
6009B-277
Product Length/Depth
4.75 in
Product Height
5.88 in
Product Width
2.75 in
Product Weight
7.5 lb
UPC
662276384057
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Type
Angle
Amperage Rating
30A
Voltage rating
277 Vac
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1544 - 6000 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 6009B-277
Feature the IP66 ingress protection and Ordinary/Non-Hazardous location classification, which provide robust dust and water ingress protection for outdoor and wash-down environments, reducing unscheduled downtime and maintenance costs. Business impact: higher uptime, lower maintenance cycles; Application: outdoor panels, marine dock installations, and harsh industrial plants. Feature 30A, 277 VAC, three-wire, two-pole configuration ensures standard heavy-duty power delivery while maintaining compatibility with Pauluhn marine pin-and-sleeve plugs, enabling quick field retrofits and reliable motor starter connections. Business impact: improved commissioning speed and lower BOM risk; Application: automation cabinets and power-distribution enclosures in manufacturing. Feature Brass construction delivers corrosion resistance and vibration durability, extending service life in salty or damp environments. Business impact: lower replacement costs; Application: marine, outdoor, and process facilities. Feature Angle mounting supports flexible installation in tight spaces, simplifying panel layouts and reducing installation time. Business impact: faster commissioning and reduced labor costs; Application: compact switchgear and equipment rooms. Feature 6009B-277’s compatibility with the Pauluhn marine pin-and-sleeve ecosystem minimizes inventory fragmentation and supports seamless upgrades across fleets. Business impact: standardized maintenance and improved ROI; Application: retrofits and new builds across industrial markets.
Get a Quick Quote for a Eaton Crouse-Hinds 6009B-277
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 6009B-277?
Enquire Now
FAQs
Yes. The 6009B-277 is a three-wire, two-pole receptacle designed for Pauluhn marine pin-and-sleeve plugs with angle mounting. It fits typical Pauluhn 6000-series configurations, enabling straightforward retrofit or new installations in panels or enclosures. Consider matching cutouts to the 4.75 in depth and 2.75 in width for precise alignment and secure fastening.
The receptacle is rated for 30A at 277 VAC and uses a three-wire, two-pole configuration. This combination supports reliable power distribution for motors and actuators in industrial automation, while maintaining compatibility with Pauluhn pin-and-sleeve plug sets used in demanding environments.
Ideal for Ordinary/Non-Hazardous Locations, the IP66-rated housing makes it suitable for outdoor, wash-down, and marine applications. Use it in industrial automation cabinets, outdoor enclosures, and vessel-based power distribution where dust, water, and corrosion resistance are required.
It provides IP66 ingress protection for dust and water resistance and is intended for Ordinary/Non-Hazardous locations. The brass construction offers durability in vibration-prone environments common to industrial and marine settings.
The brass Pauluhn design, IP66 protection, and three-wire, two-pole configuration deliver long service life with minimal maintenance in outdoor and wash-down areas. The product’s reliability reduces unplanned downtime, lowers replacement costs, and simplifies spares management across fleets and facilities, contributing to a favorable total cost of ownership.
