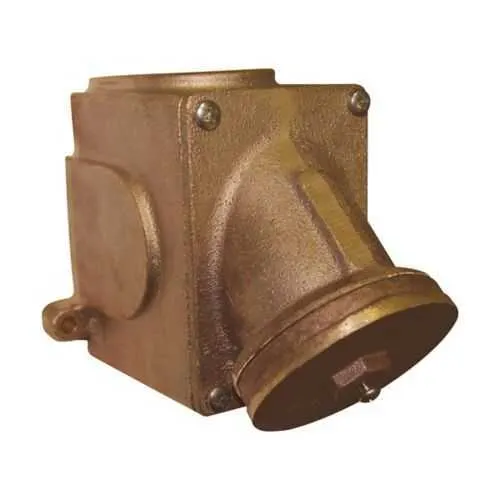

Eaton Crouse-Hinds 6009B-380 Receptacle - IP66
Part Number: 6009B-380
Quick Summary
6009B-380 is a rugged receptacle for marine and industrial pin-and-sleeve connections. Engineers often face ingress, corrosion, and mis-mating in outdoor or hazardous locations, which can drive downtime and maintenance costs. With IP66 protection, ordinary/non-hazardous area classification, and brass construction, this Pauluhn 6000-series receptacle delivers durable performance across challenging settings. Its 30A, 380 Vac, three-wire, two-pole configuration supports reliable power delivery in demanding applications. The angle design facilitates convenient mounting in compact panels and navigate tight spaces on vessels or industrial equipment. This model helps ensure safe, compliant connections while enabling faster field installations and reduced lifecycle costs.
Product Information
Extended Description
6009B-380 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 6000 receptacle, 30A, Three-wire, two-pole, Brass, Angle, 380 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 6000 receptacle
Catalog Number
6009B-380
Product Length/Depth
4.75 in
Product Height
5.88 in
Product Width
2.75 in
Product Weight
7.5 lb
UPC
662276384064
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Type
Angle
Amperage Rating
30A
Voltage rating
380 Vac
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1544 - 6000 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 6009B-380
Feature: Pauluhn 6000-series brass receptacle is built for marine and industrial environments → Business Impact: Improves durability and corrosion resistance in harsh locations, reducing maintenance intervals → Application: Best for outdoor electrical panels and wet/dust-prone areas. Feature: IP66 ingress protection → Business Impact: Keeps dust and water out during washdowns or exposure to jets, enhancing uptime → Application: Outdoor PLC enclosures, shipboard power systems, and exposed equipment. Feature: 30A, 380 Vac, three-wire, two-pole configuration → Business Impact: Delivers robust, code-compliant power for heavy-duty equipment with predictable performance → Application: Industrial motors, pumps, and process equipment in non-hazardous zones. Feature: Brass construction with angle configuration → Business Impact: Provides mechanical strength and reliable mating alignment in tight installations → Application: Surface-mounted receptacles on angled panels for compact layouts in control rooms or machinery bays. Feature: Ordinary/Non-Hazardous Locations classification → Business Impact: Simplifies procurement and compliance for standard facilities while meeting safety requirements → Application: Factory floors, marine cabins, and non-hazardous process plants. Insight: The combination of marine-grade pin-and-sleeve compatibility and Pauluhn engineering supports easier inventory management and faster commissioning in multi-vendor environments, improving overall project ROI.
Get a Quick Quote for a Eaton Crouse-Hinds 6009B-380
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 6009B-380?
Enquire Now
FAQs
The 6009B-380 is designed for surface-mounted use with its angle configuration. Ensure enclosure or panel cutout aligns with its 4.75 in depth, 5.88 in height, and 2.75 in width. Verify IP66 seals are intact and torque connections to meet 30A at 380 Vac ratings. Use appropriate marine-grade connectors and follow LBL1544 installation guidelines for best reliability in non-hazardous locations.
Yes. The 6009B-380 is part of the Eaton Crouse-Hinds Pauluhn 6000-series, specifically designed for marine pin-and-sleeve receptacles and plugs. Its three-wire, two-pole configuration ensures proper phase and grounding arrangements, enabling reliable mating with compatible Pauluhn plugs in demanding environments.
IP66 protection makes it suitable for exterior installations, washdown areas, and locations prone to dust and water jets. This rating helps maintain electrical integrity in maritime, offshore, and industrial settings, reducing ingress-related failures and extending service life in non-hazardous locations.
The receptacle delivers 30A at 380 Vac in a three-wire, two-pole configuration and is constructed from brass for durability. It carries an Ordinary/Non-Hazardous area classification, enabling compliant use in standard industrial facilities and shipboard environments while supporting safe, reliable power distribution.
Official documentation includes the Pauluhn Marine Pin and Sleeve catalog page, the LBL1544 installation sheet, and the Eaton specification sheet for 6009B-380. These resources provide mounting guidance, wiring diagrams, and detailed electrical specifications to support compliant installation.
