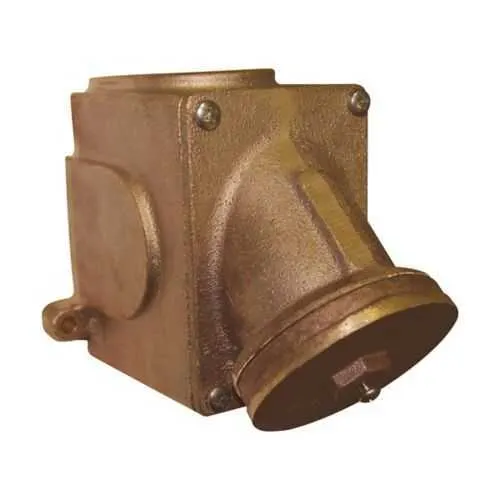

Eaton Crouse-Hinds 6009B-480 Receptacle - IP66
Part Number: 6009B-480
Quick Summary
The Eaton Crouse-Hinds 6009B-480 receptacle provides rugged 30A, 480V pin-and-sleeve connectivity for harsh industrial and marine environments. Engineers often struggle with reliable, IP66-rated connectors that fit three-wire, two-pole configurations without compromising safety or installation speed. Key certifications include IP66 ingress protection and suitability for ordinary/non-hazardous locations, aligning with marine standards and heavy-duty service. Brass construction and an angle configuration support quick field wiring, reducing downtime and improving overall equipment uptime. Together, these attributes enable faster deployment, longer service life, and lower total cost of ownership in demanding power distribution applications.
Product Information
Extended Description
6009B-480 Eaton Crouse-Hinds: Eaton Crouse-Hinds series Pauluhn 6000 receptacle, 30A, Three-wire, two-pole, Brass, Angle, 480 Vac
Product Name
Eaton Crouse-Hinds series Pauluhn 6000 receptacle
Catalog Number
6009B-480
Product Length/Depth
4.75 in
Product Height
5.88 in
Product Width
2.75 in
Product Weight
7.5 lb
UPC
662276384071
Area classification
Ordinary/Non-Hazardous Locations
Ingress protection (IP) ratings
IP66
Material
Brass
Configuration
Three-wire, two-pole
Type
Angle
Amperage Rating
30A
Voltage rating
480 Vac
Pauluhn Marine Pin and Sleeve Receptacles and Plugs catalog page
IF LBL 1544 - 6000 Marine Pin and Sleeve Plugs and Connectors
Eaton Specification Sheet - 6009B-480
Brass construction delivers corrosion resistance and durable electrical contact reliability, translating to longer service life in washdown zones and coastal facilities. This is critical for Pauluhn marine pin-and-sleeve systems, where frequent plug-in cycles occur and downtime costs escalate. The IP66 ingress protection helps prevent dust and water intrusion in outdoor enclosures and shipyards, reducing maintenance cycles and safeguarding motor controls. At 30A and 480Vac, the three-wire, two-pole angle receptacle supports high-current circuits with a compact footprint. Combined with a 4.75 inches depth and 5.88 inches height, it fits tight panels and rugged enclosures while preserving connection integrity. The angle configuration facilitates orientation in fixed installations and ease of wiring during retrofit projects; it pairs with standard Pauluhn plugs to streamline spares and training. Certified for ordinary/non-hazardous locations and backed by official Eaton Pauluhn pages and datasheets, it supports compliant procurement and reliable field service.
Get a Quick Quote for a Eaton Crouse-Hinds 6009B-480
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 6009B-480?
Enquire Now
FAQs
Yes. The 6009B-480 is designed as a Pauluhn 6000 marine pin-and-sleeve receptacle with a three-wire, two-pole configuration and angle mounting. It supports 30A at 480V and features IP66 sealing, allowing straightforward replacement with matching Pauluhn plugs. For retrofit projects, verify panel cutout, mounting orientation, and available space to ensure seamless fit and reliable sealing in harsh marine environments.
Key specs include a 30A amperage rating and 480V voltage rating, three-wire two-pole configuration, brass construction, and an IP66 ingress protection rating. The physical footprint is 4.75 in deep, 5.88 in tall, and 2.75 in wide, with a weight of 7.5 lb. These specifications support reliable operation under vibration and washdown conditions typical of industrial and marine applications.
Yes. The IP66 protection rating provides robust dust and water ingress protection suitable for outdoor equipment, docks, and washdown areas. Its Ordinary/Non-Hazardous location classification aligns with standard industrial or marine installations, ensuring safe operation in non-hazardous environments while delivering durable, weatherproof power connections for motors, pumps, and control panels.
The key compliance point is IP66 ingress protection, along with suitability for Ordinary/Non-Hazardous Locations. When documenting procurement or maintenance, reference the IP66 rating for environmental robustness and the Pauluhn 6000 compatibility for standardization with existing marine/pin-and-sleeve spares. Include the catalog number 6009B-480 and the brass construction in technical specifications for traceability.
Using the 6009B-480 reduces maintenance downtime thanks to its IP66 sealing and rugged brass contacts, which resist corrosion and wear in harsh environments. Its compatibility with Pauluhn 6000 plugs simplifies spares planning and field service, lowering inventory costs and upgrade cycles. The durable materials and reliable performance contribute to longer service intervals and improved uptime for critical equipment like pumps and motors.
