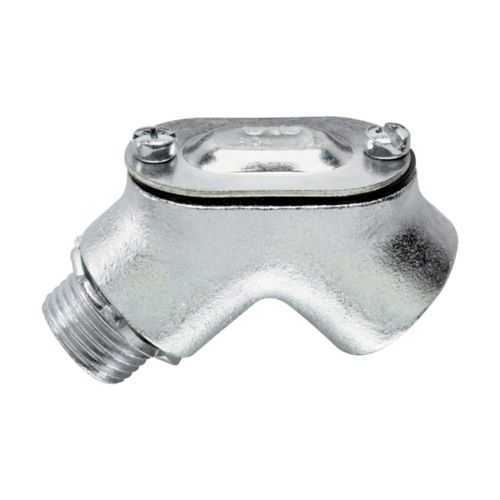

Eaton 810 Pull Elbow - Rigid/IMC 90° 1/2in - NEC/CEC
Part Number: 810
Quick Summary
Eaton 810 pull elbow provides a gasketed connection for rigid/IMC conduit in electrical enclosures. Field installations suffer when joints leak or misfit; this elbow saves labor by delivering a tight, gasketed seal. It aligns with NEC/CEC standards and offers Canadian certification support, while Ordinary/Non-Hazardous location use keeps costs predictable. Designed for 1/2 inch trade size and gasketed to box connections, it accelerates panel builds and maintenance programs. Manufacturing teams value repeatable performance across environments, as the device uses malleable iron construction for durability. Its 2.44 in length and 2.19 in height provide predictable fit in crowded boxes, reducing change orders.
Product Information
Extended Description
810 Eaton Crouse-Hinds: Eaton Crouse-Hinds series pull elbow, Rigid/IMC, Gender end 1: male, Gender end 2: female, Malleable iron, 90°, 1/2", Gasketed-rigid to box (male to female)
Product Name
Eaton Crouse-Hinds series rigid/IMC pull elbow
Catalog Number
810
Product Length/Depth
2.44 in
Product Height
2.19 in
Product Width
2.44 in
Product Weight
0.39 lb
UPC
784564108104
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Type
Gasketed-rigid to box (male to female)
Gender end 1
Male
Gender end 2
Female
Shape
90° angle
Trade size
1/2"
Material
Malleable iron
Crouse-Hinds series Malleable and Zinc Pull Elbows and Tees - Rigid-IMC catalog page
Pull Elbows and Tees - Rigid-IMC Canadian certification (810, 820 and 850 series)
Pull Elbows and Tees - Rigid-IMC Canadian certification (810, 820 and 850 series)
Eaton Specification Sheet - 810
Feature: Gasketed-rigid to box mating provides a sealed joint that resists moisture ingress and vibration, reducing field rework and smoke-test failures. Business Impact: lowers installation risk, shortens panel build time, and reduces warranty issues across projects. Application: ideal for control panels, enclosures, and machine rooms requiring robust, gasketed connections in non-hazardous facilities. Feature: Malleable iron construction delivers high mechanical strength and corrosion resistance for demanding installations. Business Impact: extends service life, lowers maintenance costs, and reduces downtime in plant environments. Application: suitable for outdoor, damp, or industrial spaces where conduit fittings endure repeated mounting and thermal cycling. Feature: 90° angle with 1/2 inch trade size supports tight routing in crowded panels. Business Impact: enables compact enclosure layouts and scalable conduit management, cutting assembly time. Application: factory automation panels and switchgear housings where space is at a premium. Feature: Size and weight (2.44 in length, 2.19 in height, 0.39 lb) offer easy handling and quick positioning. Business Impact: reduces labor hours and ergonomic strain for installers working in tight spaces. Application: retrofit and new-build projects in modern control cabinets. Feature: NEC/CEC conformity and available Canadian certification options streamline cross-border deployments. Business Impact: accelerates approvals, lowers compliance risk, and simplifies procurement for multinational facilities. Application: cross-site manufacturing lines and global OEM installations where standardized conduit fittings are required. Feature: Gasketed-rigid to box design supports reliable sealing, even after field wiring changes. Business Impact: minimizes re-entry work and helps maintain enclosure integrity over the product life cycle. Application: service upgrades, panel remodels, and new equipment installations in ordinary locations.
Get a Quick Quote for a Eaton Crouse-Hinds 810
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton Crouse-Hinds 810?
Enquire Now
FAQs
The 810 is designed for 1/2 in trade-size rigid/IMC conduit with male and female ends that thread into standard conduit boxes. Ensure box entries match the gasketed joint, and tighten the gasket to maintain the enclosure seal. Verify NEC/CEC compliance for non-hazardous areas.
Key specs include a 90° angle, 1/2 inch trade size, malleable iron body, length 2.44 in, height 2.19 in, width 2.44 in, weight 0.39 lb, and UPC 784564108104. Conduit type isRigid/IMC and ends are male to female for gasketed box connections.
No. The 810 is classified for Ordinary/Non-Hazardous Locations per its area classification, NEC/CEC standards, and lacks hazardous-location ratings. For hazardous environments, select fittings specifically rated for those conditions.
It adheres to NEC/CEC standards and is associated with Canadian certification from UL; area classification notes Ordinary/Non-Hazardous Locations. This combination supports cross-border compliance for North American installations.
Its gasketed, quick-to-seal design reduces field rework and leak-related maintenance, shortening panel install times and enabling faster commissioning in non-hazardous facilities, delivering measurable labor savings over multiple projects.
