Eaton Crouse-Hinds 812 Pull Elbow - 90° Gasketed Rigid/IMC
Part Number: 812
Quick Summary
The 812 pull elbow provides a gasketed 90° transition between rigid/IMC conduit and boxes for reliable field terminations. Installers often wrestle with leaks or seals when fittings don’t pair cleanly with enclosures in busy facilities, causing rework and delays. This elbow carries UL certification for Rigid-IMC assemblies and NEC/CEC compliance, with ordinary/non-hazardous location ratings that streamline documentation, inspections, and safety audits. Built from malleable iron with gasketed ends, it resists corrosion in damp environments and accelerates installation by aligning with standard conduit cut sizes, improving field productivity in control rooms, machine tooling, and panel assemblies. These features translate into lower downtime and predictable lifecycle costs.
Product Information
Extended Description

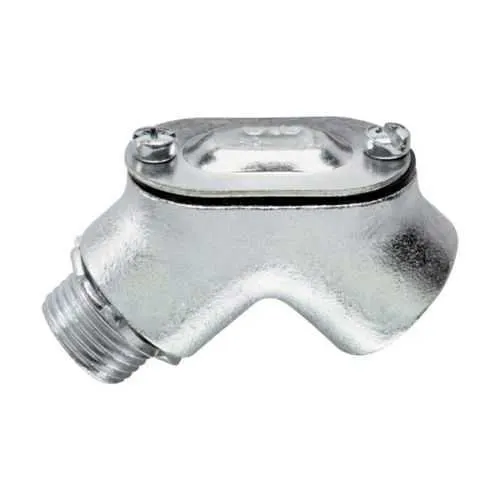

812 Eaton Crouse-Hinds: Eaton Crouse-Hinds series pull elbow, Rigid/IMC, Gender end 1: male, Gender end 2: female, Malleable iron, 90°, 1", Gasketed-rigid to box (male to female)
Product Name
Eaton Crouse-Hinds series rigid/IMC pull elbow
Catalog Number
812
Product Length/Depth
3.19 in
Product Height
3.06 in
Product Width
3.19 in
Product Weight
0.89 lb
UPC
784564108128
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
Rigid/IMC
Type
Gasketed-rigid to box (male to female)
Gender end 1
Male
Gender end 2
Female
Shape
90° angle
Trade size
1"
Material
Malleable iron
Crouse-Hinds series Malleable and Zinc Pull Elbows and Tees - Rigid-IMC catalog page
Pull Elbows and Tees - Rigid-IMC UL certification (810, 820 and 850 series)
Pull Elbows and Tees - Rigid-IMC UL certification (810, 820 and 850 series)
Eaton Specification Sheet - 812
Feature → Business Impact → Application: The gasketed-rigid to box connection delivers a tight seal that minimizes moisture ingress and dust in control panels and equipment enclosures, reducing maintenance cycles and extending component life. This translates to fewer field service calls and lower total cost of ownership in manufacturing lines and packaging facilities. Application: suitable for 1 inch trade size conduits in ordinary locations where reliable sealing matters. Feature → Business Impact → Application: 90° angle with male and female ends enables compact routing in tight spaces, reducing the need for additional fittings and cutting installation time. Application: ideal for panel boards, motor control centers, and machine enclosures with space constraints. Feature → Business Impact → Application: malleable iron construction delivers high impact resistance and vibration tolerance, minimizing damage from equipment movement during commissioning and in busy plant floors. Application: rugged environments, welding stations, and material handling lines. Feature → Business Impact → Application: gasketed connection to box simplifies alignment and assembly, lowering rework and tightening schedules. Application: field terminations near benches and overhead cable runs. Feature → Business Impact → Application: NEC/CEC compliance and UL certification underpin safe, auditable installations, accelerating inspections and commissioning. Application: industrial facilities subject to strict electrical codes and routine regulatory checks. Feature → Business Impact → Application: 1 inch trade size and standard conduit compatibility support faster procurement and fewer SKU variants, improving procurement cycles. Application: new machine builds and upgrade projects requiring standardized conduit fittings.
